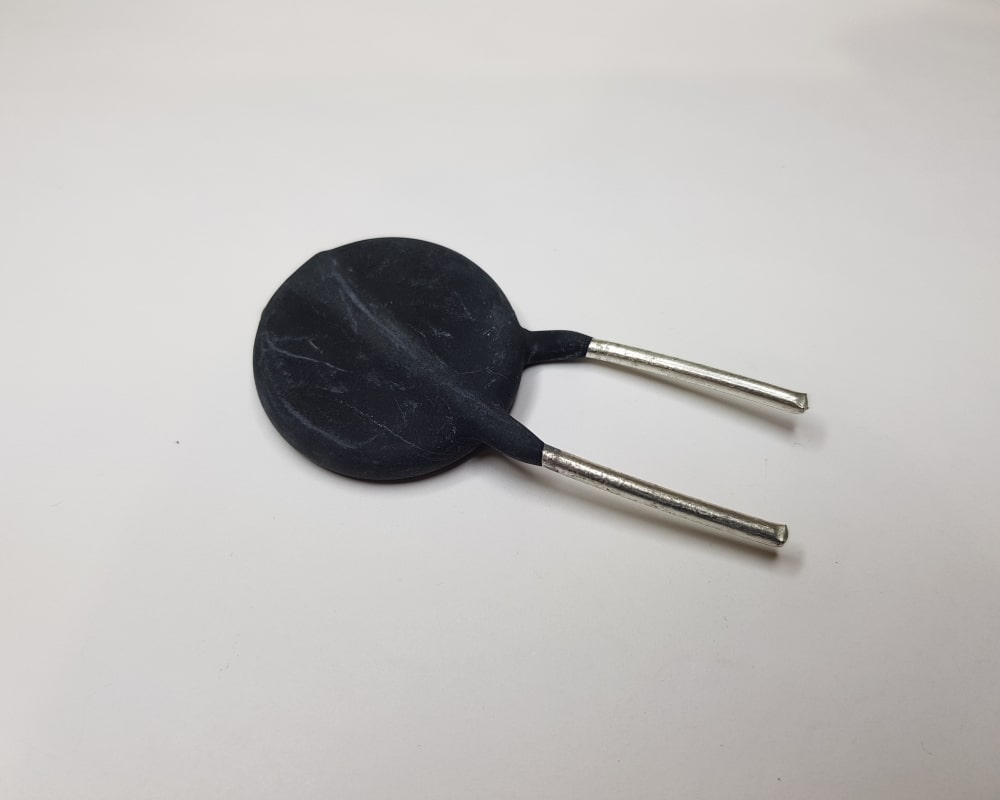

The MS35 20010 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 10A (up to +25ยฐC) and a resistance of 20ฮฉ ยฑ25% (at 25ยฐC). Ametherm’s MegaSurgeโข series of inrush current limiting thermistors are capable of handling up to 900 joules of energy and 50 amperes of steady state current. These power thermistors are rugged and built to last even in the most demanding high power applications. The Ametherm MS35 devices play a key role in alternative energy applications by avoiding current spikes in the power generated by wind turbines, solar panels, and other sources as it’s fed into batteries, inverters, and other energy storage components. These MegaSurgeโข devices are also used to regulate the release of battery energy in electric vehicles and in pre-charge circuits for many different types of battery chargers.
Typical applications for the MS35 series include:

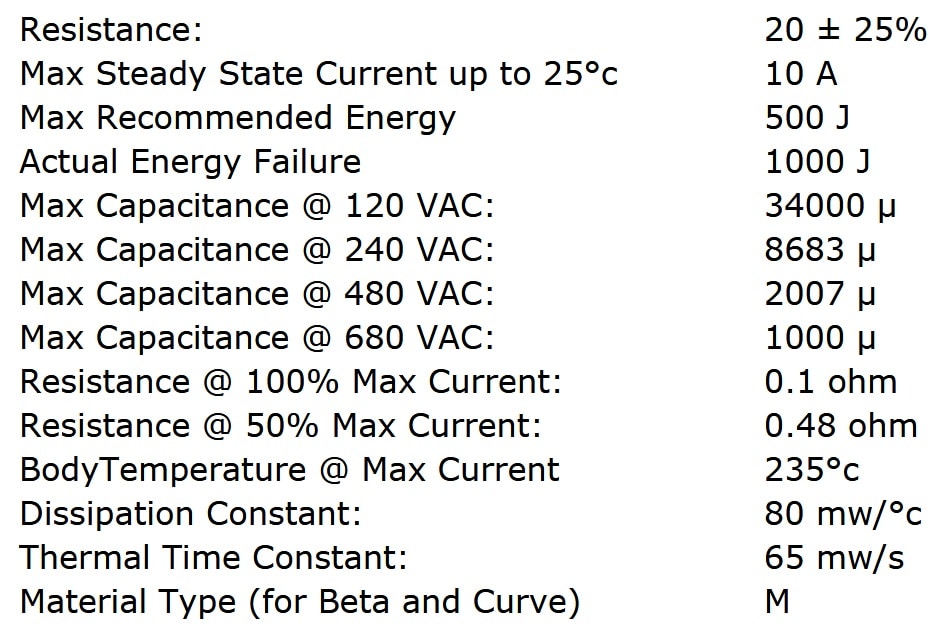

The below table gives the full specifications of the Ametherm MS35 20010 series:
| Weight | 0.00000 kg |
|---|---|

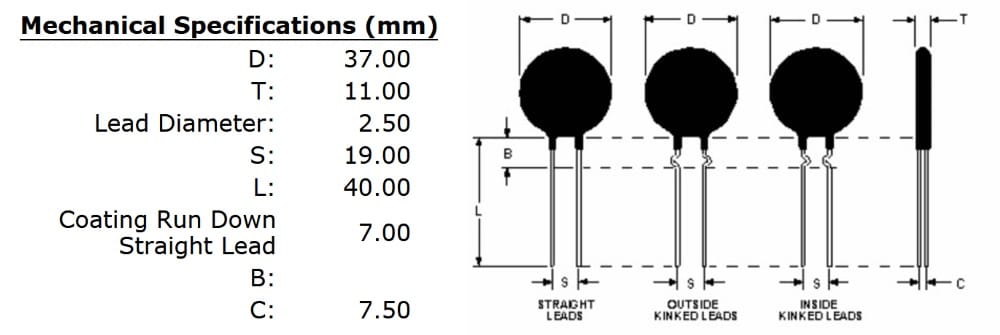

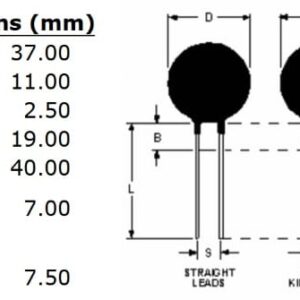

| Dimensions | 0.00 x 11.00 x 37.00mm |
| Actual Energy Failure | 1000J |
| Dissipation Constant | 80mW/ยฐC |
| Material Type | |
| Max. Recommended Energy | 500J |
| Maximum Steady State Current | 10A |
| Mounting / Size | |
| Resistance at +25ยฐC | 20ฮฉ |
| Series / Model | |
| Thermal Time Constant | 65mW/s |
| Tolerance | |
| Voltage Rating |
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| DOCUMENTATION | |
|---|---|
| Ametherm MS35 20010 MegaSurge™ inrush current limiting thermistor datasheet | |
Due to the technical complexity nature of these components, complete specifications, performance data, dimensional information and configuration options are provided within the product datasheet.
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| DOCUMENTATION | |
|---|---|
| Ametherm MS35 20010 MegaSurge™ inrush current limiting thermistor datasheet | |
We are pleased to provide you with a range of videos, please see below for the latest content available:
ย
ย
| VIDEOS | |
|---|---|
|
Limiting Inrush Current with NTC and PTC Thermistors video Learn how to limit inrush current using NTC and PTC thermistors in this presentation by Ametherm. Many applications today, including industrial machinery, power tools and other high current equipment, use limiting inrush current as a major design consideration to combat the problematic effects of inrush current. Inrush current occurs when a system powers on and experiences a spike in current. This current can be substantially higher than standard operating current. If not properly managed, it can reduce the effective operating life and impose damage to equipment. For example, inrush current could disable a cooling fan, eventually leading to total system failure. Applications that are switched on and off quickly, such as welding equipment, present a particular concern for limiting inrush current. The limiting inrush current circuit must reset instantaneously during each power on to protect the system. This further complicates the management of inrush current. |
|
Limiting Inrush Current for a 40VA Transformer Inrush current often causes problems for transformers. This video will show you how to calculate the right inrush current limiter for your transformer in 7 simple steps. |
|
DC Motor Inrush Current and What You Need to Know What does inrush current have to do with DC motors? This video answers that question by discussing the cause of DC motor inrush current and how to prevent the inrush of current at startup from possibly damaging the DC motor with the use of Ametherm’s Inrush Current Limiters. They start by explaining how a DC motor functions, its applications and key components, how inrush current factors in, how to solve the problem of inrush current, and how to select the right inrush current limiter for your application with three easy steps. |
| VIDEOS | |
|---|---|
|
|
|
|
Limiting Inrush Current with NTC and PTC Themistors video Learn how to limit inrush current using NTC and PTC thermistors in this presentation by Ametherm. Many applications today, including industrial machinery, power tools and other high current equipment, use limiting inrush current as a major design consideration to combat the problematic effects of inrush current. Inrush current occurs when a system powers on and experiences a spike in current. This current can be substantially higher than standard operating current. If not properly managed, it can reduce the effective operating life and impose damage to equipment. For example, inrush current could disable a cooling fan, eventually leading to total system failure. Applications that are switched on and off quickly, such as welding equipment, present a particular concern for limiting inrush current. The limiting inrush current circuit must reset instantaneously during each power on to protect the system. This further complicates the management of inrush current. |
|
|
|
|
|
Limiting Inrush Current for a 40VA Transformer Inrush current often causes problems for transformers. This video will show you how to calculate the right inrush current limiter for your transformer in 7 simple steps. |
|
|
|
|
|
DC Motor Inrush Current and What You Need to Know What does inrush current have to do with DC motors? This video answers that question by discussing the cause of DC motor inrush current and how to prevent the inrush of current at startup from possibly damaging the DC motor with the use of Ametherm’s Inrush Current Limiters. They start by explaining how a DC motor functions, its applications and key components, how inrush current factors in, how to solve the problem of inrush current, and how to select the right inrush current limiter for your application with three easy steps. |
|
