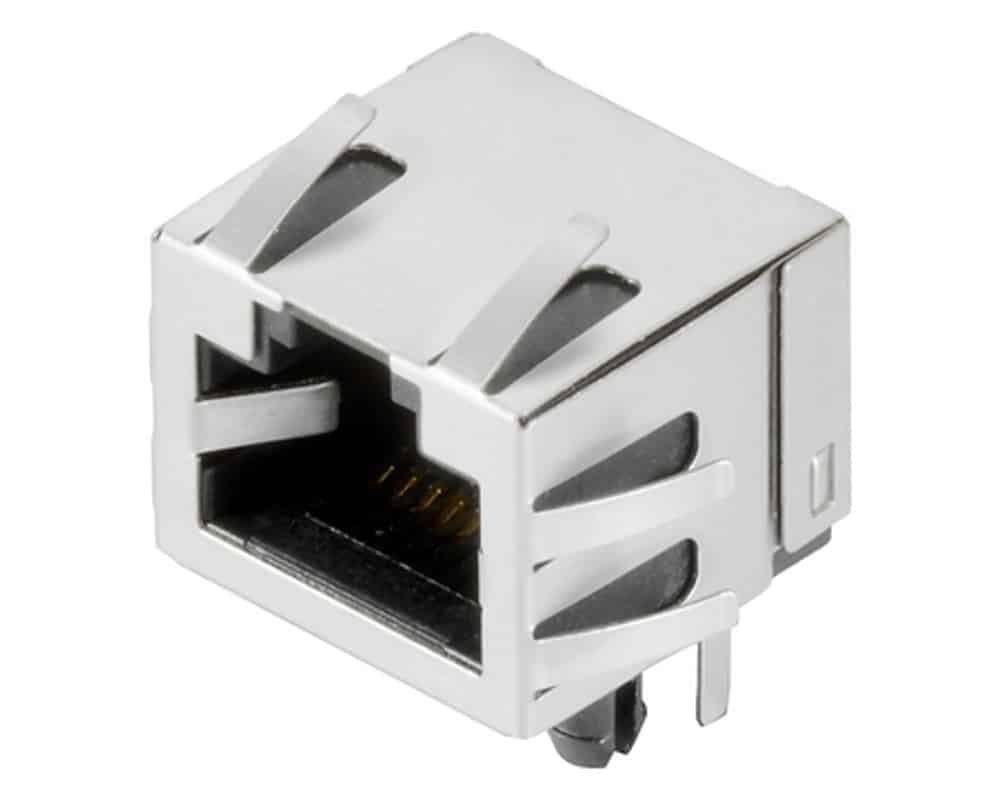

The RJ45C5 T1U 2.8E4N TY connector from the Weidmüller Omnimate data range, offers a connector system with an eight-pole miniature plug-in system for use in connections with STP and UTP cables. This Weidmüller RJ45 jack features an outgoing elbow of 90° with an extended temperature range of −40°C to +85°C and a solder pin length of 2.75mm.
The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:
For further information regarding the specifications, please see the datasheet on the Technical Library tab.
| Weight | 5.90700 kg |
|---|---|

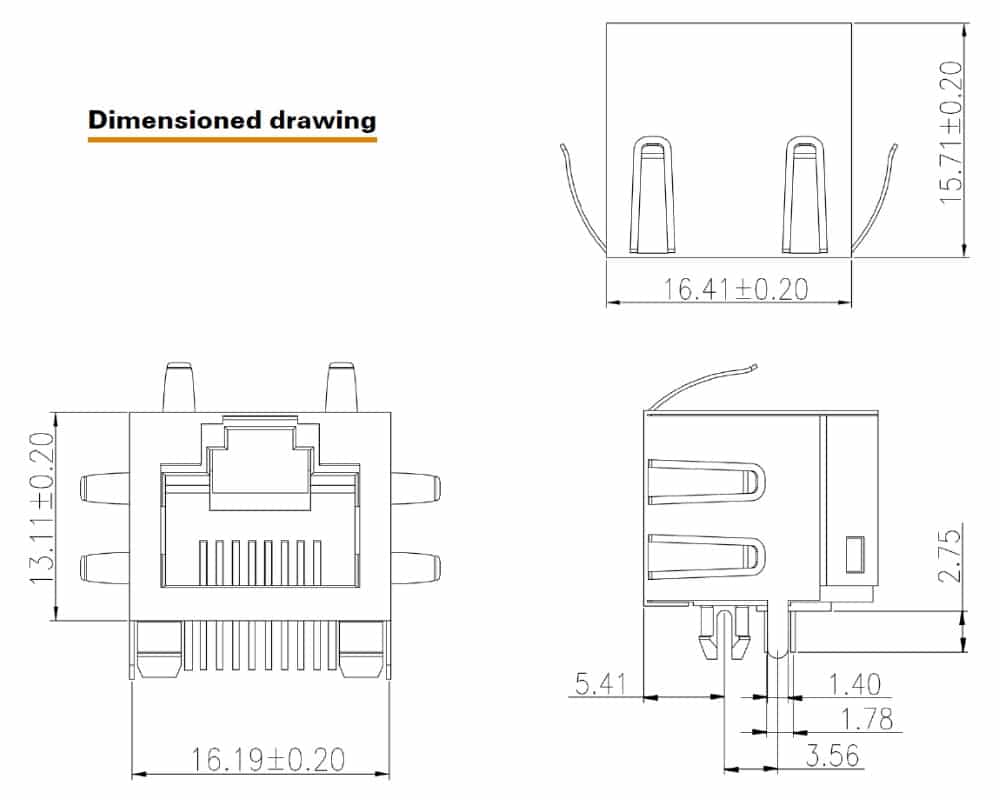

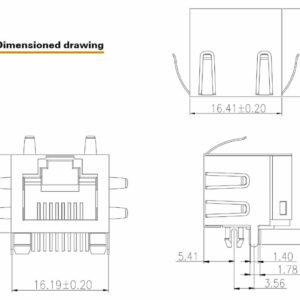

| Dimensions | 13.11 x 15.71 x 16.41mm |
| Conductor Outlet Direction | 90° |
| LED | No LEDs |
| Number of Poles | 8 |
| Plugging cycles | 750 |
| Series / Model | |
| Shielding | Nickel-plated |
Due to the technical complexity nature of these components, complete specifications, performance data, dimensional information and configuration options are provided within the product datasheet.
This product is available fully compliant to the RoHS EU directive 2011/65/EU.
We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| DOCUMENTATION | |
|---|---|
| Weidmüller RJ45C5 T1U 2.8E4N TY plug-in connector datasheet | |
