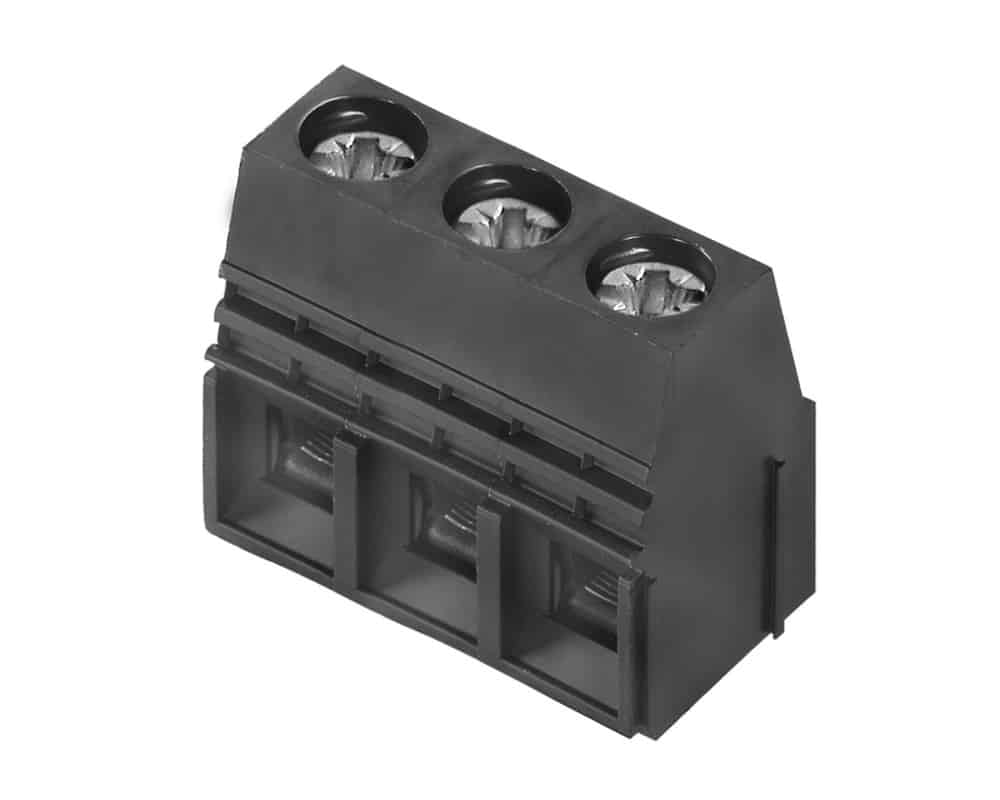

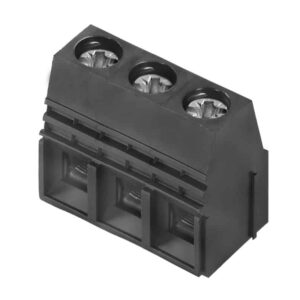

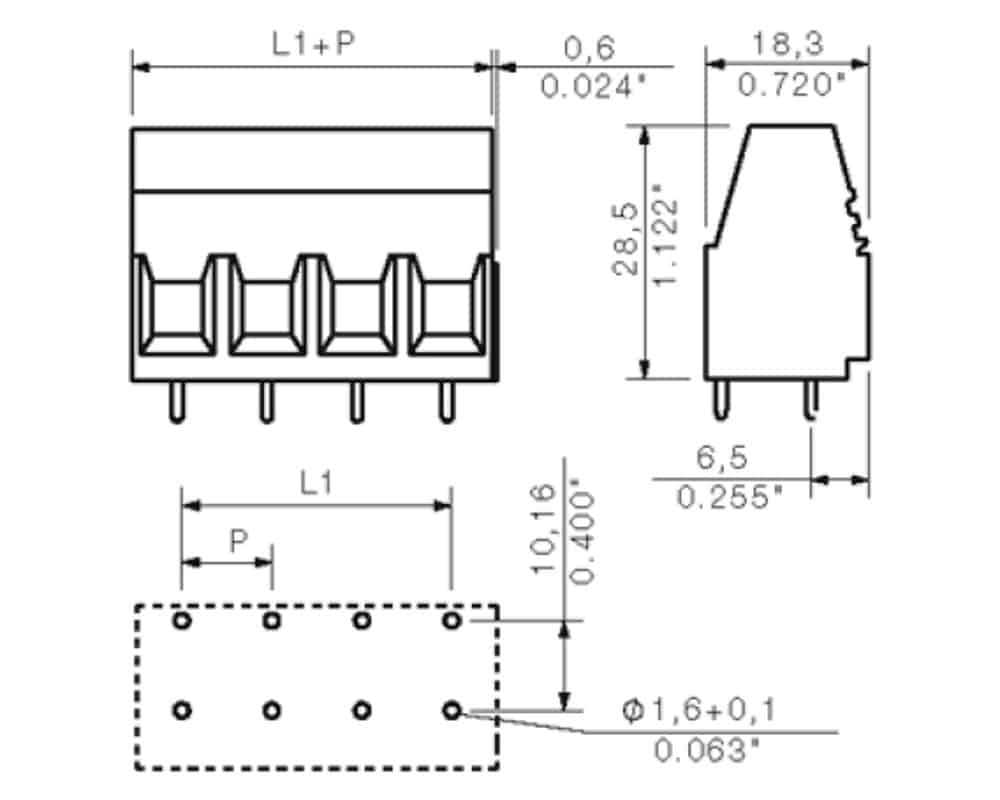

PCB terminal connector

Weidmüller LU 10.16/90 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 76A (IEC) and 65A (UL)
  • Dimensions of L1 10.16mm to 91.44mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 4.5mm
  • Wire connection cross section from AWG 22 to AWG 8
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • Compliant

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Black
Conductor Outlet Direction

90°
Number of Poles

2, 3, 4, 5, 6, 7, 8, 9, 10
Mounting / Size

Series / Model

Termination / Connection

Clamping Yoke via Screw

PCB terminal connector

Weidmüller LU 10.16/90 Series

  • PCB terminal connector
  • Rated current for minimum number of poles 76A (IEC) and 65A (UL)
  • Dimensions of L1 10.16mm to 91.44mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 4.5mm
  • Wire connection cross section from AWG 22 to AWG 8
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • Compliant

Request a Quote

Sample Request
Email Datasheet

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related PCB Power Terminals items

Weidmüller LLFS 7.50/180V Series
Weidmüller LSF-SMD 7.50/90 Series
Weidmüller LSF-SMT 7.50/180 Series
Weidmüller LUF 10.00/90V Series

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related Weidmüller LU 10.16/90 Series Components

Weidmüller LSF-SMD 7.50/90 Series

PCB terminal connector
  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 7.5mm to 37.5mm (depending on the number of poles required)
  • SMD solder connection
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

Weidmüller LSF-SMT 7.50/180 Series

PCB terminal connector
  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 7.5mm to 52.5mm (depending on the number of poles required)
  • SMT solder connection with a solder pin length of 3.5mm
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

Weidmüller LLFS 7.50/180V Series

PCB terminal connector
  • PCB terminal connector
  • Rated current for minimum number of poles 41A (IEC) and 37A (UL)
  • Dimensions of L1 7.5mm to 82.5mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 24 to AWG 8
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

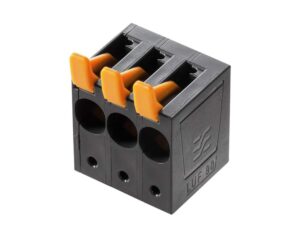

Weidmüller LUF 10.00/90V Series

PCB terminal connector
  • PCB terminal connector
  • Rated current for minimum number of poles 76A (IEC) and 58A (UL)
  • Dimensions of L1 10mm to 110mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 18 to AWG 6
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

Weidmüller LUF 15.00/90V Series

PCB terminal connector
  • PCB terminal connector
  • Study, direct connection fro extreme current and voltage requirements
  • Rated current for minimum number of poles 68A (IEC) and 58A (UL)
  • Dimensions of L1 15mm to 105mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 18 to AWG 4
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

Weidmüller LUFS 10.00/180V Series

PCB terminal connector
  • PCB terminal connector
  • Rated current for minimum number of poles 76A (IEC) and 57A (UL)
  • Dimensions of L1 10mm to 110mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 18 to AWG 4
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
View Product
Download Datasheet

The LU 10.16/90 PCB terminal series from Weidmüller’s Omnimate power range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 2 up to 10 poles and a 10.16mm pitch. The LU 10.16/90 series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with wave soldering
  • Number of poles available from 2 to 10
  • Solder pin length of 4.5mm
  • Pitch of 10.16mm
  • Conductor outlet direction of 90°
  • Clamping yoke via screw connection
  • Wire connection cross section from AWG 22 to AWG 8
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 10.16mm to 91.44mm depending on the number of poles required
  • Rated current for minimum number of poles 76A (IEC) and 65A (UL)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −50°C to +120°C

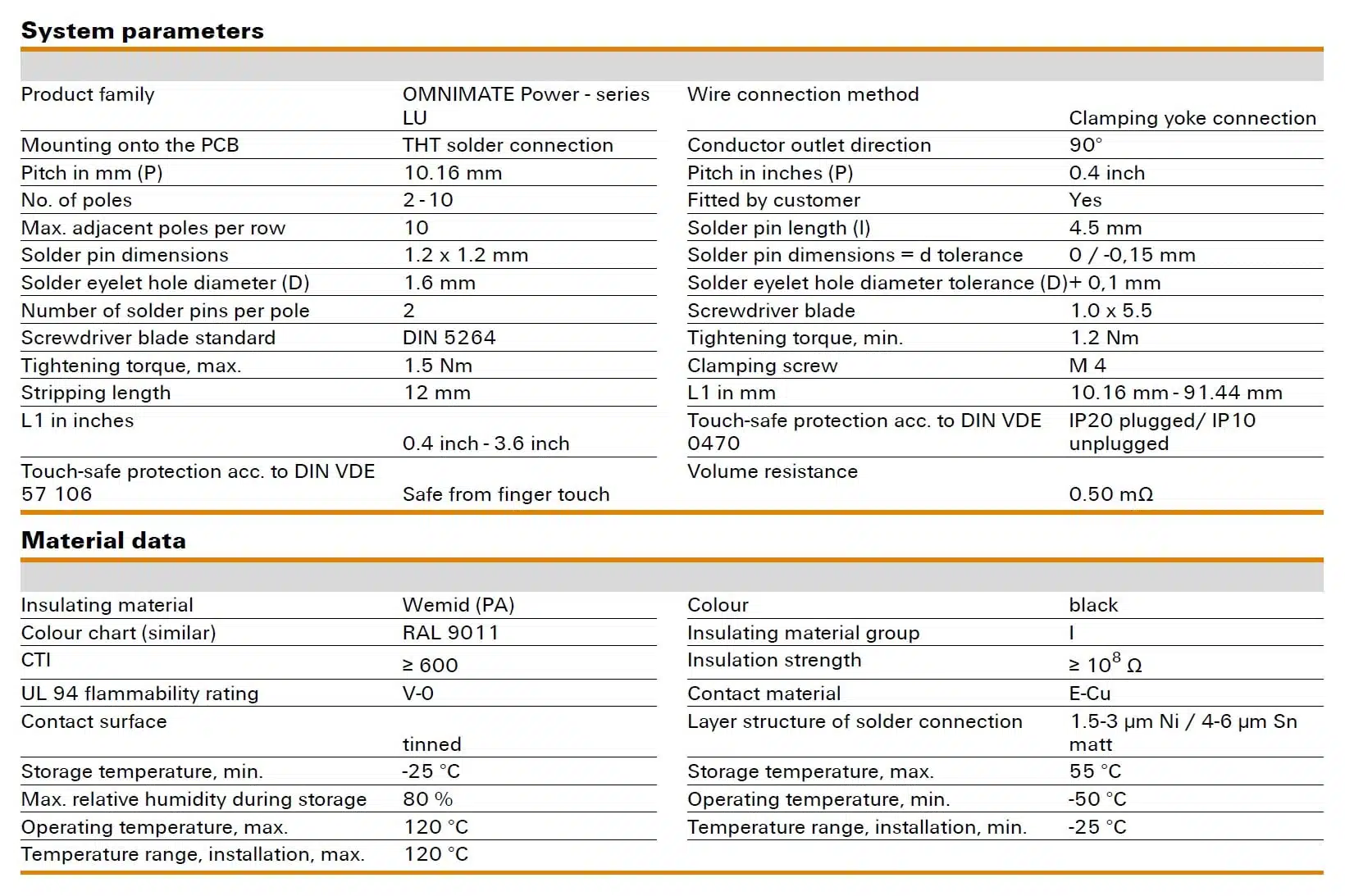

The below table gives the specifications of the Weidmüller LU 10.16/90 PCB terminal series:

Weidmüller LU 10.16/90 Specifications

Please see the relevant datasheet in the technical library for the exact specification
