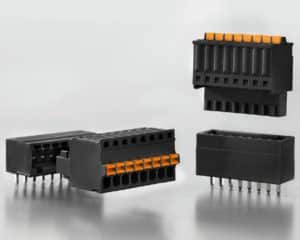

Weidmüller BLF 2.50/180 Series

PCB terminal connector with female plug
Rated current for minimum number of poles 6A (IEC) and 5A (UL)
Dimensions of L1 2.5mm to 27.5mm (depending on the number of poles required)
Push in spring connection with integrated push buttons for opening the terminal point
Wire connection cross section from AWG28 (0.08mm²) to AWG 20 (0.5mm²)
Temperature range −40°C up to +105°C
CSA and UL 1059 approved, IEC listed

Weidmüller BLF 3.50/180 Series

Female plug in connector
Rated current for minimum number of poles 17.5A (IEC) and 10A (UL)
Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
Push in spring connection
Clamping range from 0.14mm² to 1.5mm²
Wire connection cross section from AWG 26 to AWG 16
Temperature range −50°C up to +120°C
CSA and UL 1059 approved, IEC listed

Weidmüller BLF 5.08HC/180 Series

High current female plug in connector
Rated current for minimum number of poles 24A (IEC) and 18.5A (UL)
Dimensions of L1 5.08mm to 116.84mm (depending on the number of poles required)
Clamping range from 0.13mm² to 3.31mm²
Wire connection cross section from AWG 26 to AWG 12
Temperature range −50°C up to +100°C
CSA and UL 1059 approved, IEC listed
