Weidmüller BLZP 5.08HC/180 Series

  • Weidmüller

Product Features

  • High current female plug in connector
  • Rated current for minimum number of poles 23A (IEC) and 20A (UL)

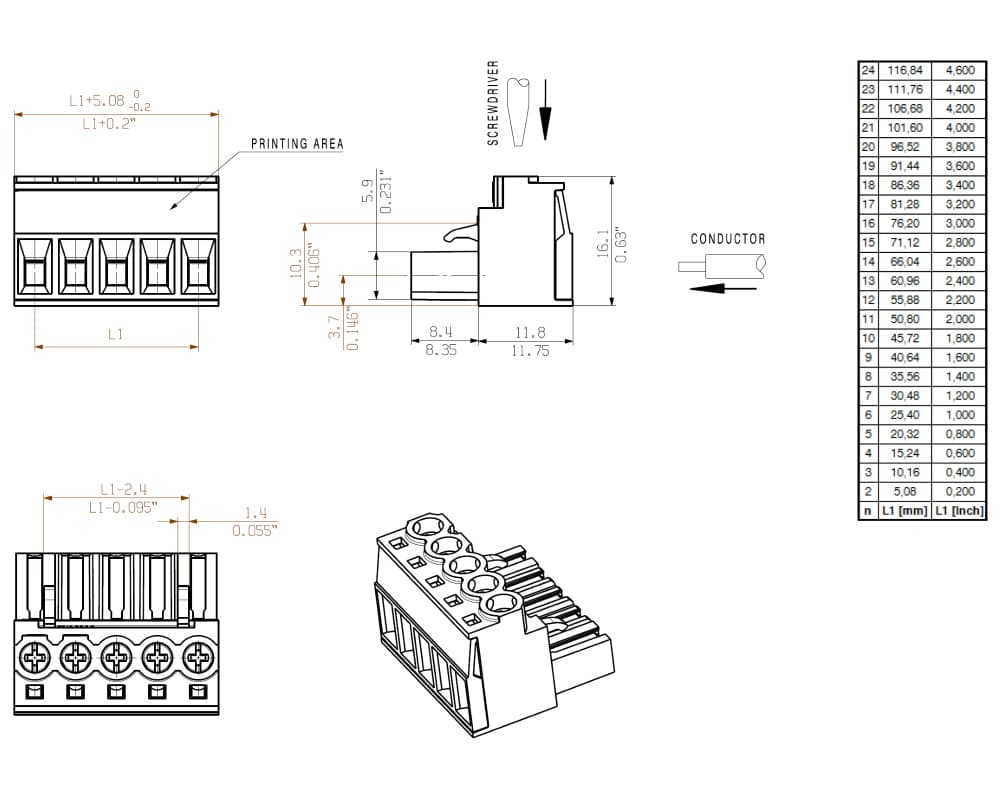

  • Dimensions of L1 5.08mm to 116.84mm (depending on the number of poles required)
  • Clamping yoke screw connection
  • Clamping range from 0.13mm² to 4mm²
  • Wire connection cross section from AWG 30 to AWG 12
  • Temperature range −50°C up to +100°C
  • CSA and UL 1059 approved, IEC listed
  • CSA
  • UL

Applications

  • Compliant

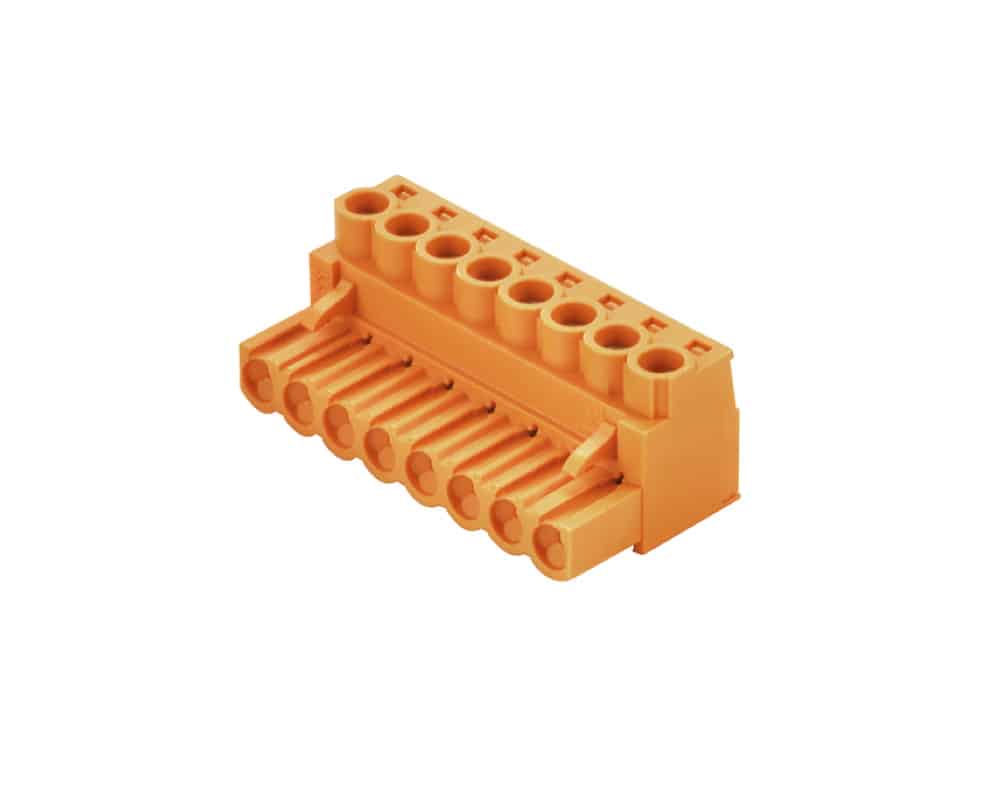

The BLZP 5.08HC/180 high current, female PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 5.08mm pitch and a choice from 2 up to 24 poles. The BLZP 5.08HC/180 series from Weidmüller have a clamping yoke screw connection with a high current rating of 23A (IEC) or 20A (UL approved). These connectors have an operating temperature range of −50°C up to +100°C .

  • High current female plug in connector
  • Clamping yoke via screw connection
  • Number of poles available from 2 to 24
  • Clamping range from 0.13 mm² to 4mm²
  • Wire connection cross section from AWG 30 to AWG 12
  • Pitch of 5.08mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 5.08mm to 116.84mm depending on the number of poles required
  • Rated current for minimum number of poles 23A (IEC) and 20A (UL)
  • Orange in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −50°C up to +100°C


The below table gives the specifications of the Weidmüller BLZP 5.08/180 PCB connector series:

Weidmüller BLZP 5.08/180 Specifications

Please see the relevant datasheet in the technical library for the exact specification

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Orange

Conductor Outlet Direction

180°

Number of Poles

2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24

Pitch

5.08mm

Series / Model

Termination / Connection

Clamping Yoke via Screw

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller BLZP 5.08/180B 3.2SN OR BX Technical Library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
2 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/02/180 SN OR BX PCB connector datasheet
3 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/03/180 SN OR BX PCB connector datasheet
4 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/04/180 SN OR BX PCB connector datasheet
5 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/05/180 SN OR BX PCB connector datasheet
6 pole – Weidmüller Omnimate Signal BLZP 5.08HC/06/180 SN OR BX PCB connector datasheet
7 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/07/180 SN OR BX PCB connector datasheet
8 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/08/180 SN OR BX PCB connector datasheet
9 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/09/180 SN OR BX PCB connector datasheet
10 pole – Weidmüller Omnimate Signal BLZP 5.08HC/10/180 SN OR BX PCB connector datasheet
11 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/11/180 SN OR BX PCB connector datasheet
12 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/12/180 SN OR BX PCB connector datasheet
13 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/13/180 SN OR BX PCB connector datasheet
14 pole – Weidmüller Omnimate Signal BLZP 5.08HC/14/180 SN OR BX PCB connector datasheet
15 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/15/180 SN OR BX PCB connector datasheet
16 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/16/180 SN OR BX PCB connector datasheet
17 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/17/180 SN OR BX PCB connector datasheet
18 pole – Weidmüller Omnimate Signal BLZP 5.08HC/18/180 SN OR BX PCB connector datasheet
19 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/19/180 SN OR BX PCB connector datasheet
20 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/20/180 SN OR BX PCB connector datasheet
21 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/21/180 SN OR BX PCB connector datasheet
22 pole – Weidmüller Omnimate Signal BLZP 5.08HC/22/180 SN OR BX PCB connector datasheet
23 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/23/180 SN OR BX PCB connector datasheet
24 Pole – Weidmüller Omnimate Signal BLZP 5.08HC/24/180 SN OR BX PCB connector datasheet

Weidmüller Omnimate BLZP Series Video Library

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Weidmüller Omnimate BLZP 5.08 series video.

Get to know our product BLZP 5.08 series from the OMNIMATE® Signal range. In addition to the product characteristics you will learn more about the handling of this PCB connector.

Place holder video for YouTube video Weidmüller Omnimate Signal video

A short video of Weidmüller' Device Connectivity components for signal applications. Designed specifically for automation applications, providing innovative solutions and backed by superior design in service and support.

VIDEOS
Place holder video for YouTube video
Weidmüller Omnimate BLZP 5.08 series video.

Get to know our product BLZP 5.08 series from the OMNIMATE® Signal range. In addition to the product characteristics you will learn more about the handling of this PCB connector.

Place holder video for YouTube video
Weidmüller Omnimate Signal video.

A short video of Weidmüller' Device Connectivity components for signal applications. Designed specifically for automation applications, providing innovative solutions and backed by superior design in service and support.
