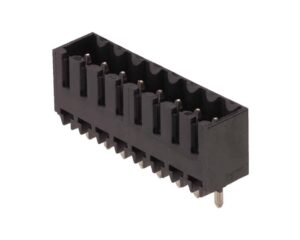

Weidmüller SL 3.50/180G Series

  • Weidmüller

Product Features

  • PCB terminal connector with male header and closed housing
  • Rated current for minimum number of poles 17A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 3.2mm
  • Temperature range −50°C to +100°C
  • CSA and UL 1059 approved, IEC listed
  • CSA
  • UL

Applications

  • Compliant

The SL 3.50/180G male header PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 3.5mm pitch and a choice from 2 up to 24 poles. The SL 3.50/180G series from Weidmüller have a closed housing and can be used in a fully automatic assembly using wave soldering (THT). These PCB plug-in connectors have an operating temperature range of −50°C up to +100°C .

  • PCB plug in connector with male header
  • Through-hole technology with wave soldering
  • Number of poles available from 2 to 24
  • Solder pin length of 3.2mm
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 2.5mm to 80.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17A (IEC) and 10A (UL)
  • Orange in colour
  • Packaged in box
  • Temperature range −50°C up to +100°C


The below table gives the specifications of the Weidmüller SL 3.50/180G PCB connector series:

Weidmüller SL 3.50/180G Specifications

* Poles 2 to 13 ±0.15mm and poles 14 to 24 ±0.2mm

Please see the relevant datasheet in the technical library for the exact specification

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Conductor Outlet Direction

Number of Poles

, , , , , , , , , , , , , , , , , , , , , ,

Package / Size

Series / Model

Termination / Connection

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller SL 3.50/180G 3.2SN OR BX Technical Library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
2 Pole – Weidmüller Omnimate Signal SL 3.50/02/180G 3.2SN OR BX PCB connector datasheet
3 Pole – Weidmüller Omnimate Signal SL 3.50/03/180G 3.2SN OR BX PCB connector datasheet
4 Pole – Weidmüller Omnimate Signal SL 3.50/04/180G 3.2SN OR BX PCB connector datasheet
5 Pole – Weidmüller Omnimate Signal SL 3.50/05/180G 3.2SN OR BX PCB connector datasheet
6 pole – Weidmüller Omnimate Signal SL 3.50/06/180G 3.2SN OR BX PCB connector datasheet
7 Pole – Weidmüller Omnimate Signal SL 3.50/07/180G 3.2SN OR BX PCB connector datasheet
8 Pole – Weidmüller Omnimate Signal SL 3.50/08/180G 3.2SN OR BX PCB connector datasheet
9 Pole – Weidmüller Omnimate Signal SL 3.50/09/180G 3.2SN OR BX PCB connector datasheet
10 pole – Weidmüller Omnimate Signal SL 3.50/10/180G 3.2SN OR BX PCB connector datasheet
