Weidmüller SL-SMT 3.50/90G Series

  • Weidmüller

Product Features

  • PCB terminal connector with male header and closed housing
  • Rated current for minimum number of poles 15A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
  • Pin length of 3.2mm suitable for wave or reflow soldering
  • Temperature range −50°C to +100°C
  • CSA and UL 1059 approved, IEC listed
  • CSA
  • UL

Applications

  • Compliant

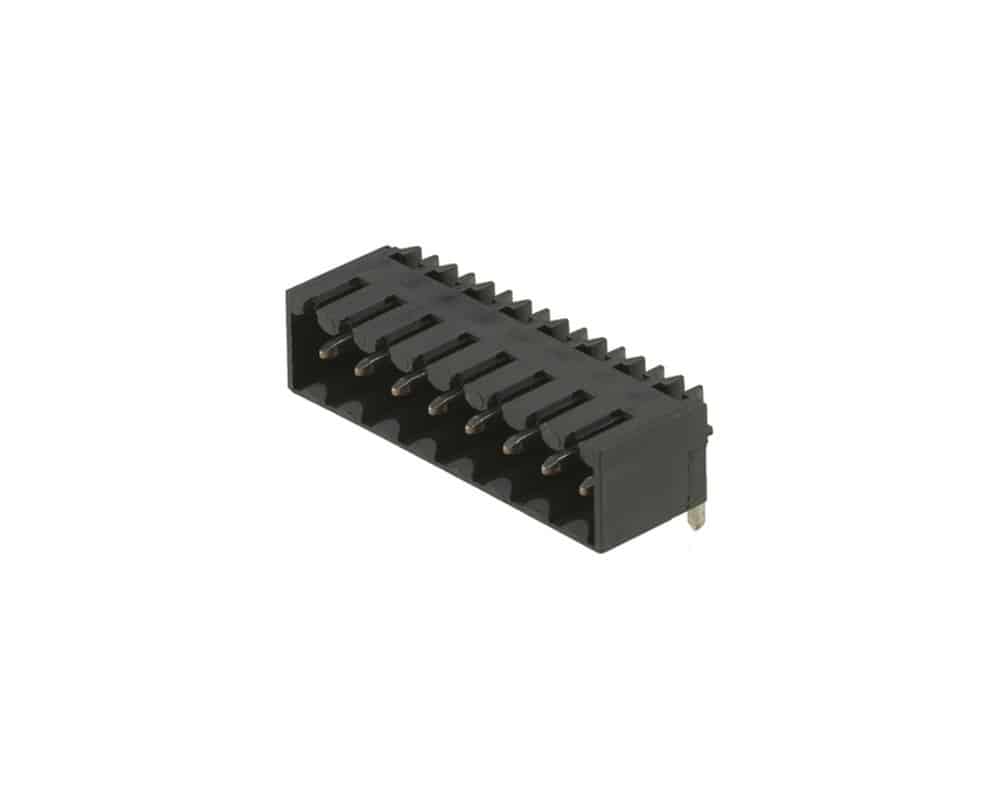

The SL-SMT 3.50/90G male header PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 90°. They have a 3.5mm pitch and a choice from 2 up to 24 poles. The SL-SMT 3.50/90G series from Weidmüller have a closed housing and are suitable for reflow (THR) and wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −50°C up to +100°C .

  • PCB plug in connector with male header
  • Through-hole technology suitable for reflow or wave soldering
  • Number of poles available from 2 to 24
  • Solder pin length of 3.2mm
  • Pitch of 3.5mm
  • Conductor outlet direction of 90°
  • CSA and UL 1059 approved, IEC listed

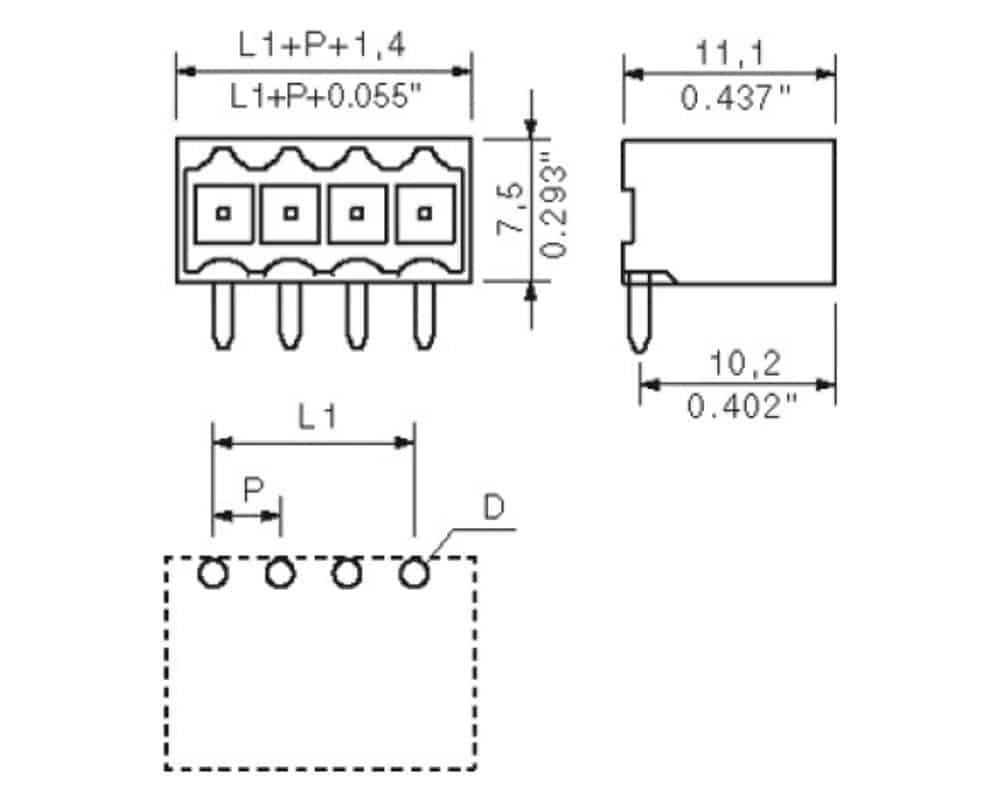

  • Dimmensions for L1 from 3.5mm to 80.5mm depending on the number of poles required
  • Rated current for minimum number of poles 15A (IEC) and 10A (UL)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −50°C up to +100°C

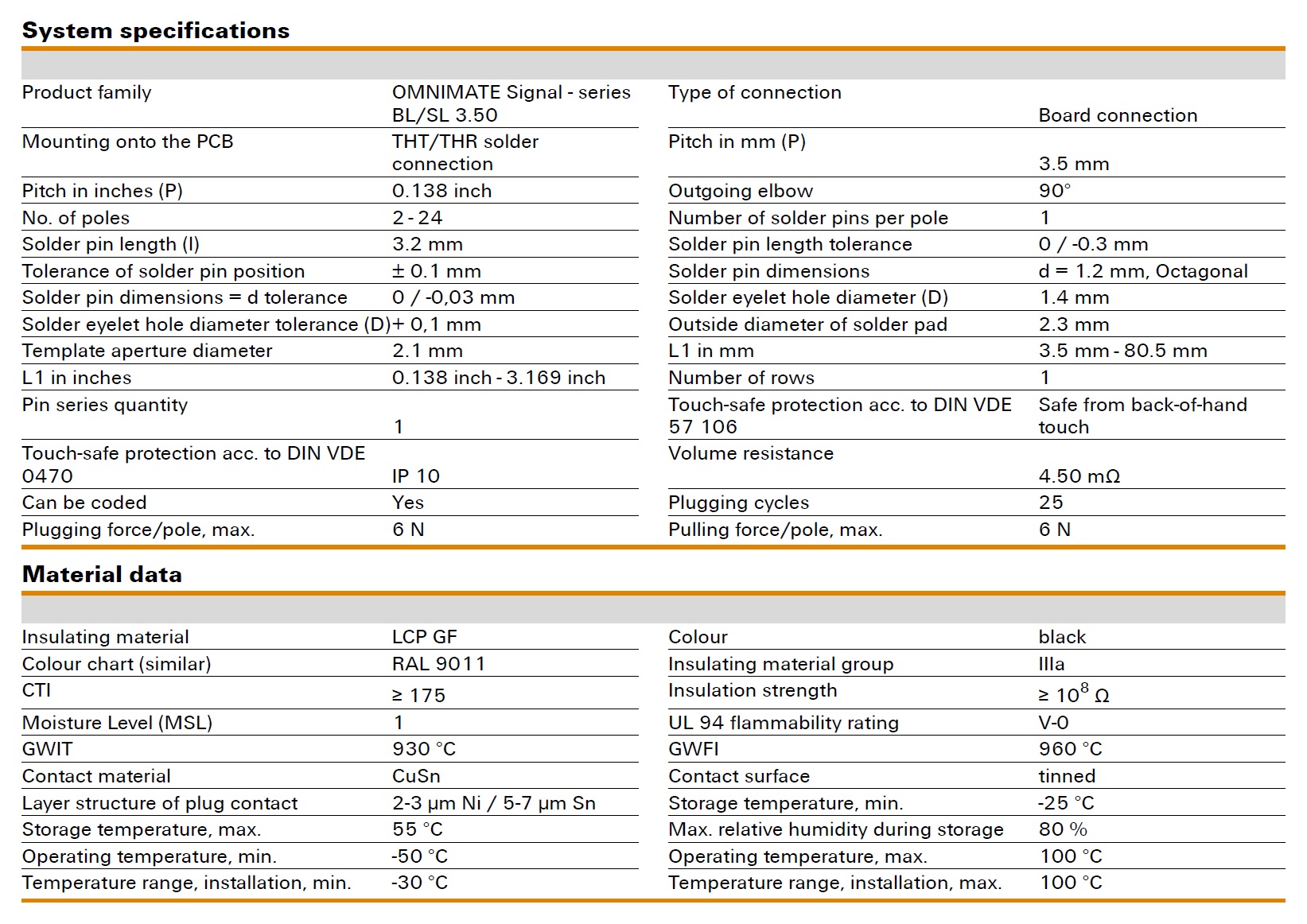

The below table gives the specifications of the Weidmüller SL-SMT 3.50/90G PCB connector series:

Weidmüller SL-SMT 3.50/90G Specifications

Please see the relevant datasheet in the technical library for the exact specification

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Conductor Outlet Direction

Number of Poles

, , , , , , , , , , , , , , , , , , , , , ,

Package / Size

Series / Model

Termination / Connection

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
