Weidmüller SL-SMT 3.50/180G Series

Weidmüller SL-SMT 3.50/180G Series
Weidmüller SL-SMT 3.50/180G Series
Weidmüller SL 2.50/90G Series
Weidmüller SL-SMT 3.50/180G Series
  • Weidmüller

Product Features

  • PCB terminal connector with male header and closed housing
  • Rated current for minimum number of poles 15A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
  • Pin length of 3.2mm suitable for wave or reflow soldering
  • Temperature range −50°C to +100°C
  • CSA and UL 1059 approved, IEC listed
  • UL

Applications

  • Compliant

Description

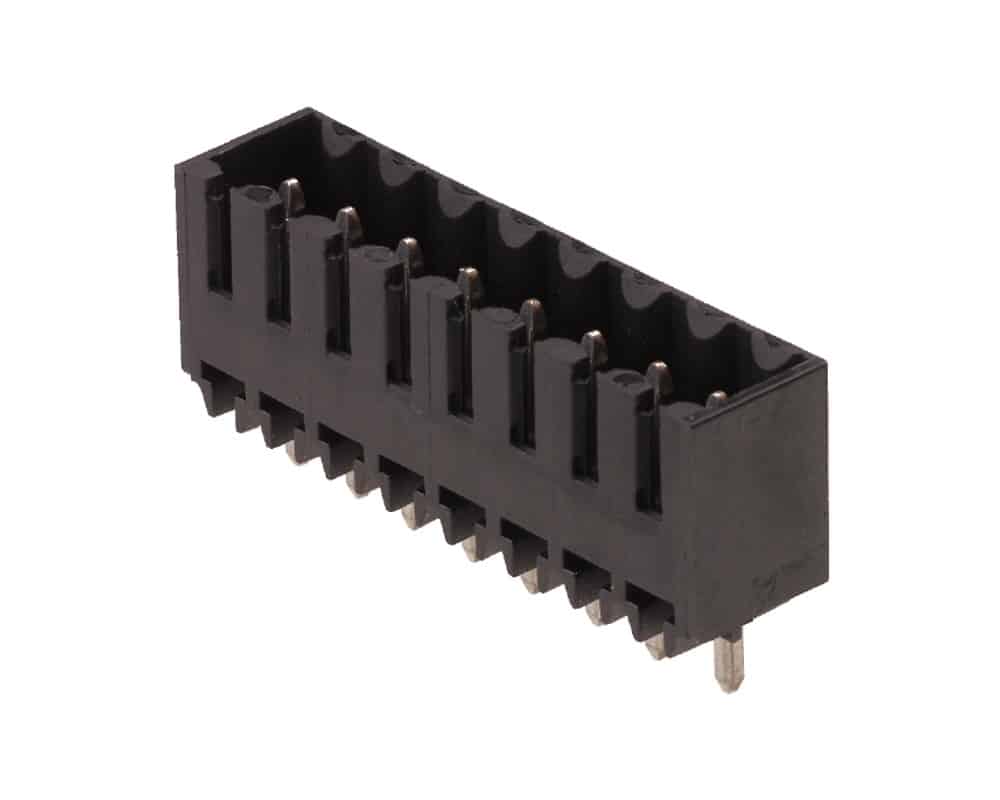

The SL-SMT 3.50/180G male header PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 3.5mm pitch and a choice from 2 up to 24 poles. The SL-SMT 3.50/180G series from Weidmüller have a closed housing and are suitable for reflow (THR) and wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −50°C up to +100°C .

  • PCB plug in connector with male header
  • Through-hole technology suitable for reflow or wave soldering
  • Number of poles available from 2 to 24
  • Solder pin length of 3.2mm
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 80.5mm depending on the number of poles required
  • Rated current for minimum number of poles 15A (IEC) and 10A (UL)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −50°C up to +100°C


The below table gives the specifications of the Weidmüller SL-SMT 3.50/180G PCB connector series:

Weidmüller SL-SMT 3.50/180G Specifications

* Poles 2 to 9 ±0.1mm, poles 10 to 13 ±0.15mm and poles 14 to 24 ±0.2mm

Please see the relevant datasheet in the technical library for the exact specification
