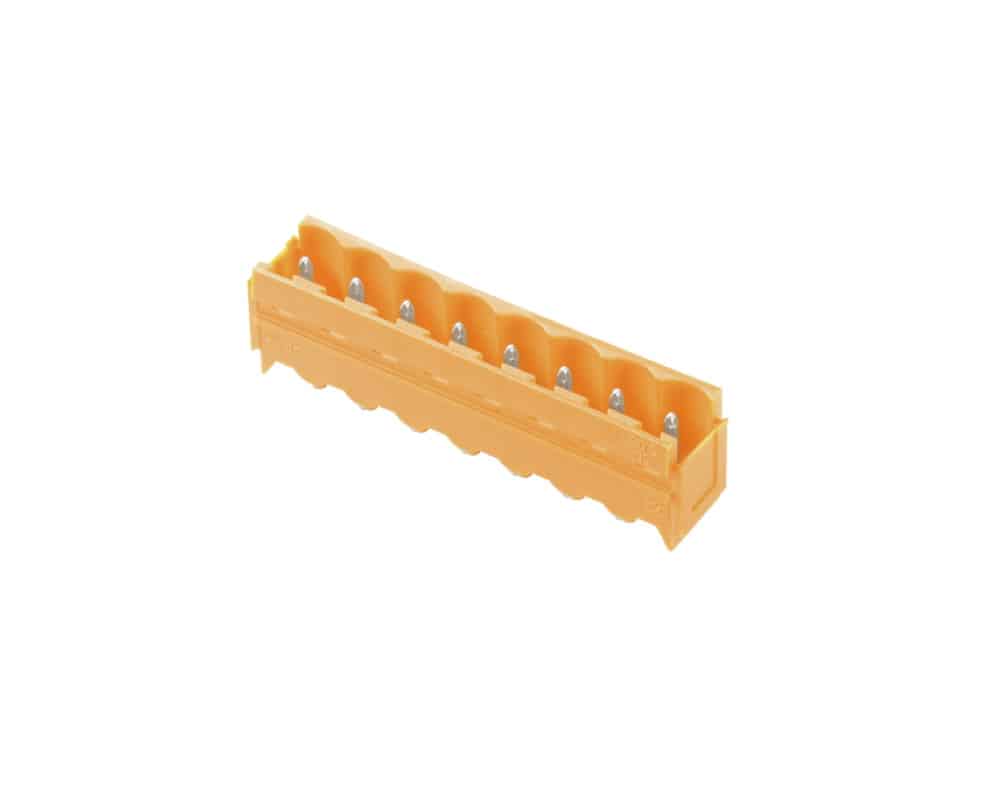

PCB terminal connector with male header and closed housing

The SL 5.08HC/180B high current male header, PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. With a 5.08mm pitch and a choice from 2 up to 24 poles. The SL 5.08HC/180B series from Weidmüller have a high current of 24A (IEC) or 18.5A (UL approved) these connectors can be used in a fully automatic assembly using wave soldering (THT). These PCB plug-in connectors have an operating temperature range of −50°C up to +100°C .

• PCB plug in connector with male header
• Through-hole technology with wave soldering
• Number of poles available from 2 to 24
• Solder pin length of 3.2mm
• Pitch of 5.08mm
• Conductor outlet direction of 180°
• CSA and UL 1059 approved, IEC listed

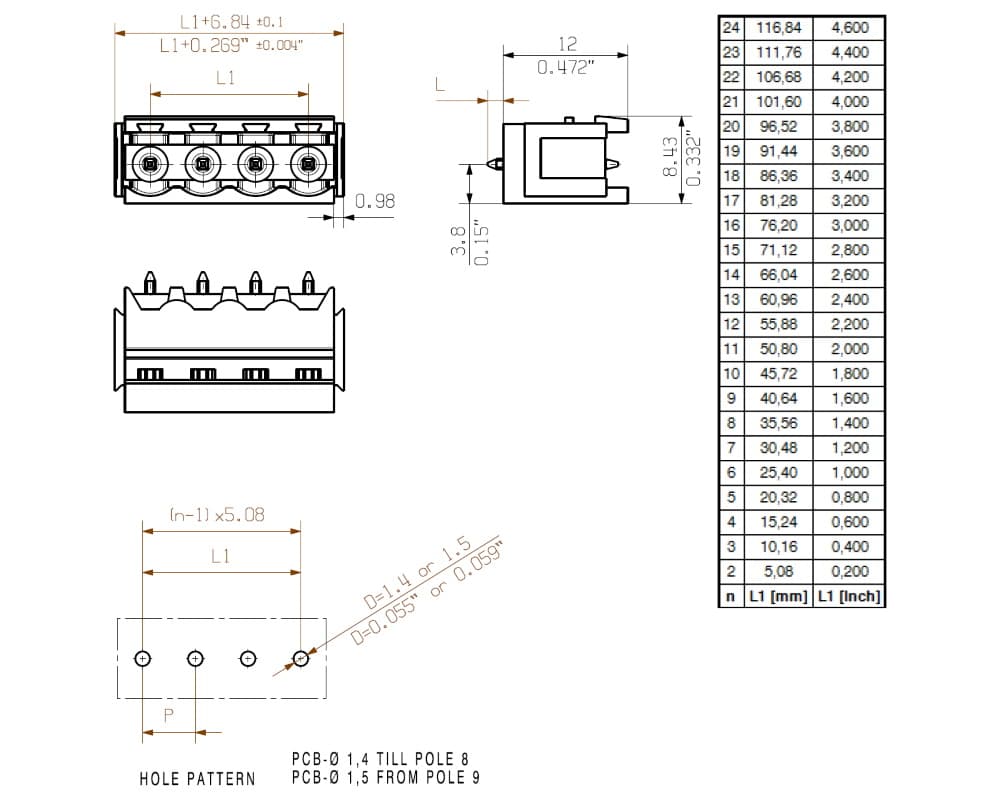

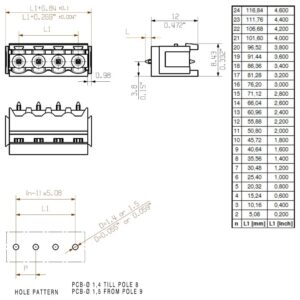

• Dimmensions for L1 from 5.08mm to 116.84mm depending on the number of poles required
• Rated current for minimum number of poles 17A (IEC) and 10A (UL)
• Orange in colour
• Packaged in box
• Temperature range −50°C up to +100°C

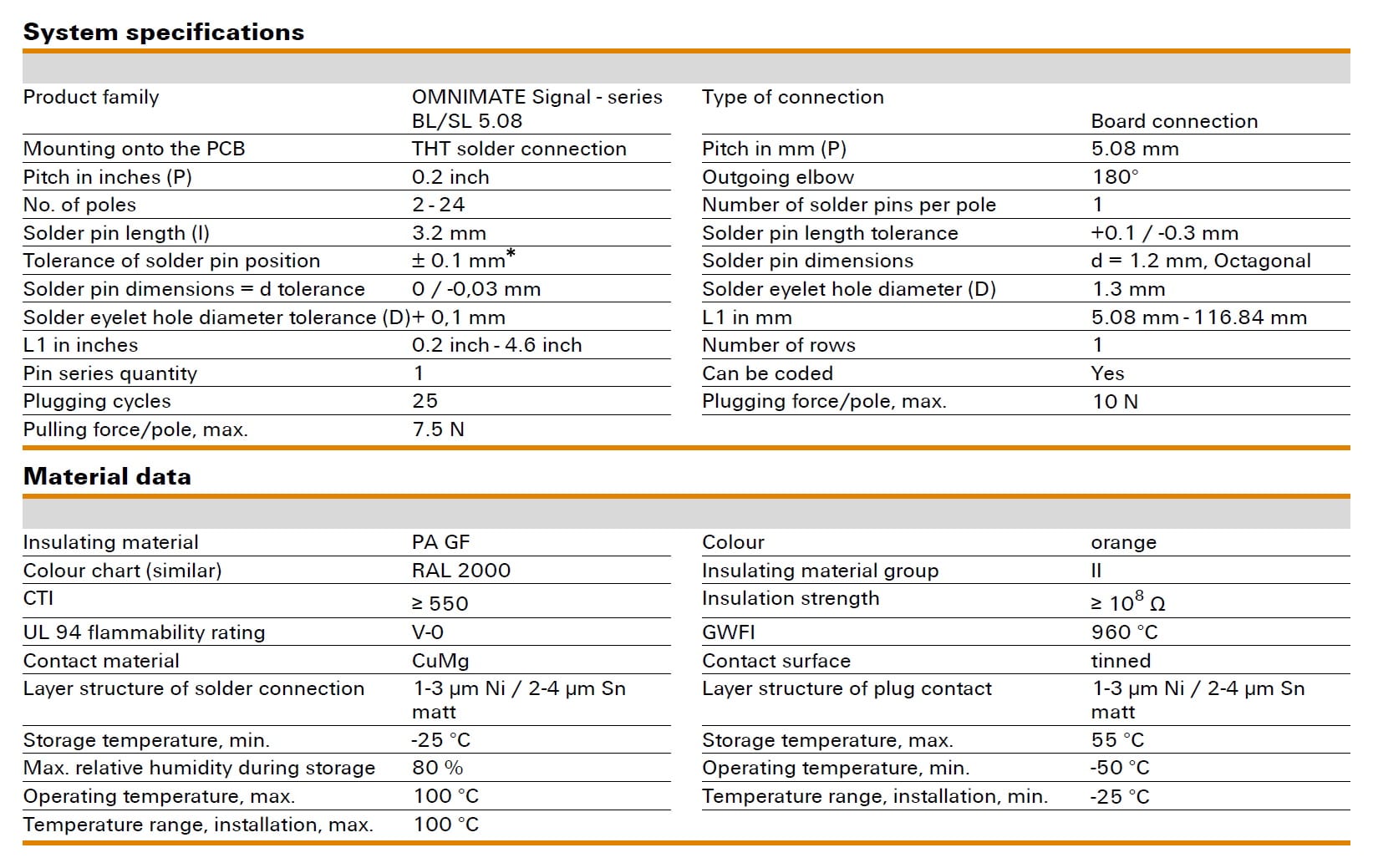

The below table gives the specifications of the Weidmüller SL 3.50/180G PCB connector series:

* Poles 2 to 9 ±0.1mm, poles 10 to 13 ±1.5mm and poles 14 to 24 ±2mm

Please see the relevant datasheet in the technical library for the exact specification
