Weidmüller BLF 3.50/180 Series

  • Weidmüller

Product Features

  • Female plug in connector
  • Rated current for minimum number of poles 17.5A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 80.5mm (depending on the number of poles required)
  • Push in spring connection
  • Clamping range from 0.14mm² to 1.5mm²
  • Wire connection cross section from AWG 26 to AWG 16
  • Temperature range −50°C up to +120°C
  • CSA and UL 1059 approved, IEC listed
  • CSA
  • UL

Applications

  • Compliant

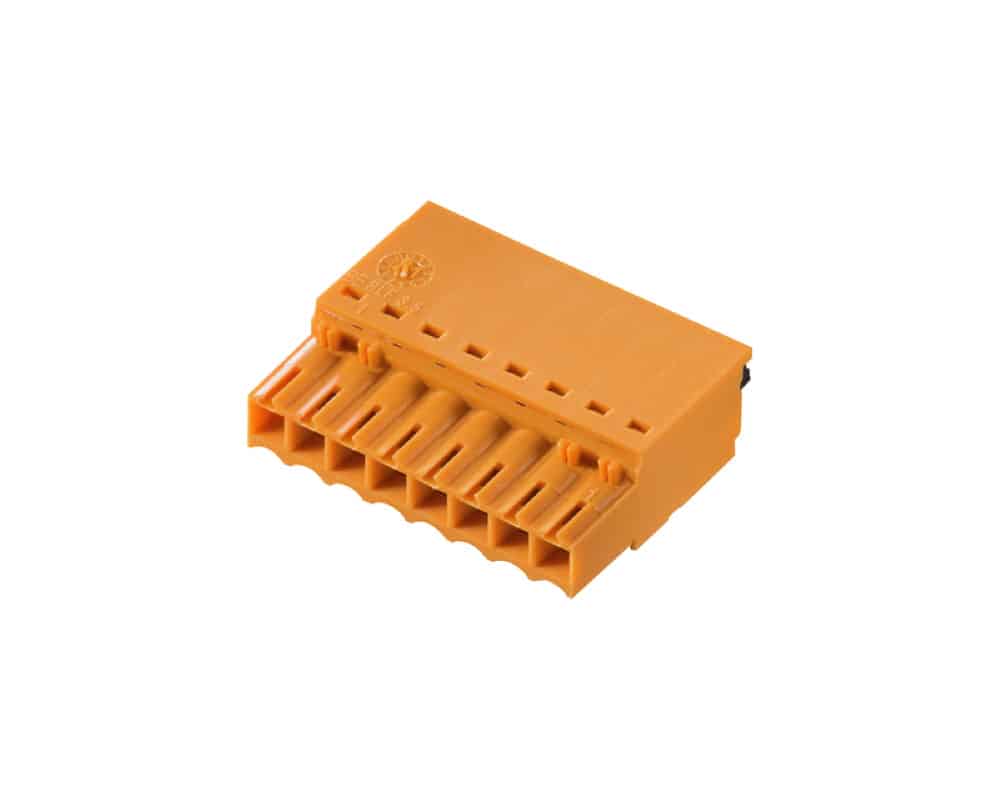

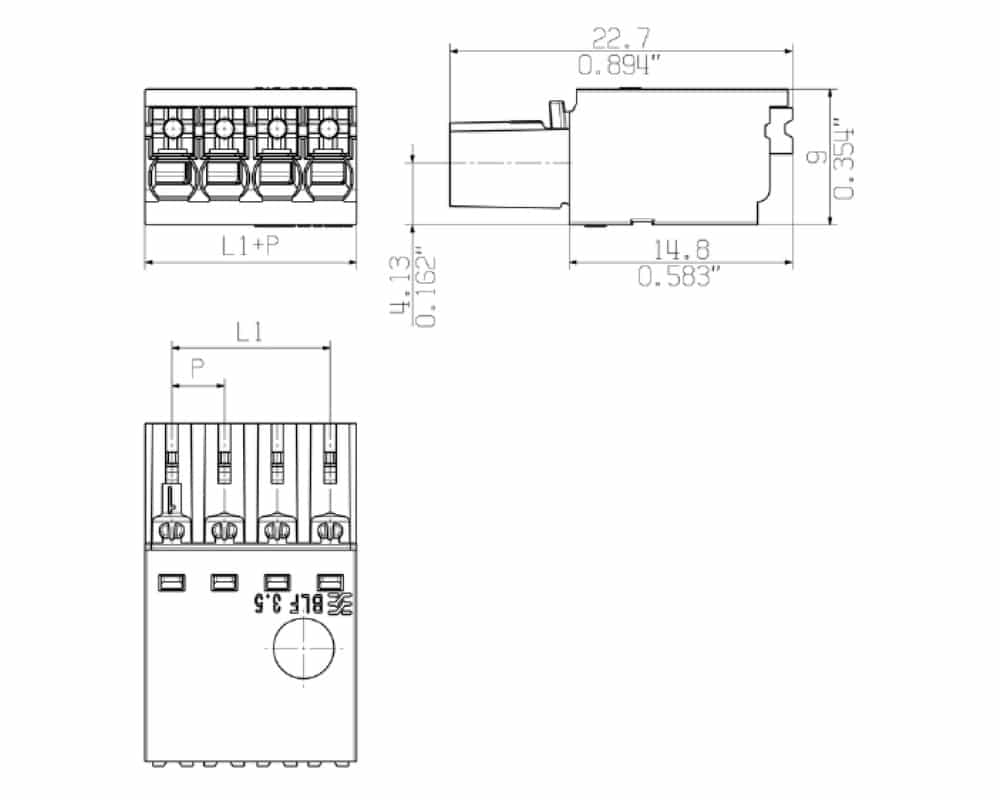

The BLF 3.50/180 female PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 3.5mm pitch and a choice from 2 up to 24 poles. The BLF 3.50/180 series from Weidmüller have a push in spring connection. These connectors have an operating temperature range of −50°C up to +120°C .

  • Female plug in connector
  • Push in spring connection
  • Number of poles available from 2 to 24
  • Clamping range from 0.14 mm² to 1.5mm²
  • Wire connection cross section from AWG 26 to AWG 16
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 80.5mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 10A (UL)
  • Orange in colour (additional colours available on request)
  • Packaged in box
  • Temperature range −50°C up to +120°C


The below table gives the specifications of the Weidmüller BLF 3.50/180 PCB connector series:

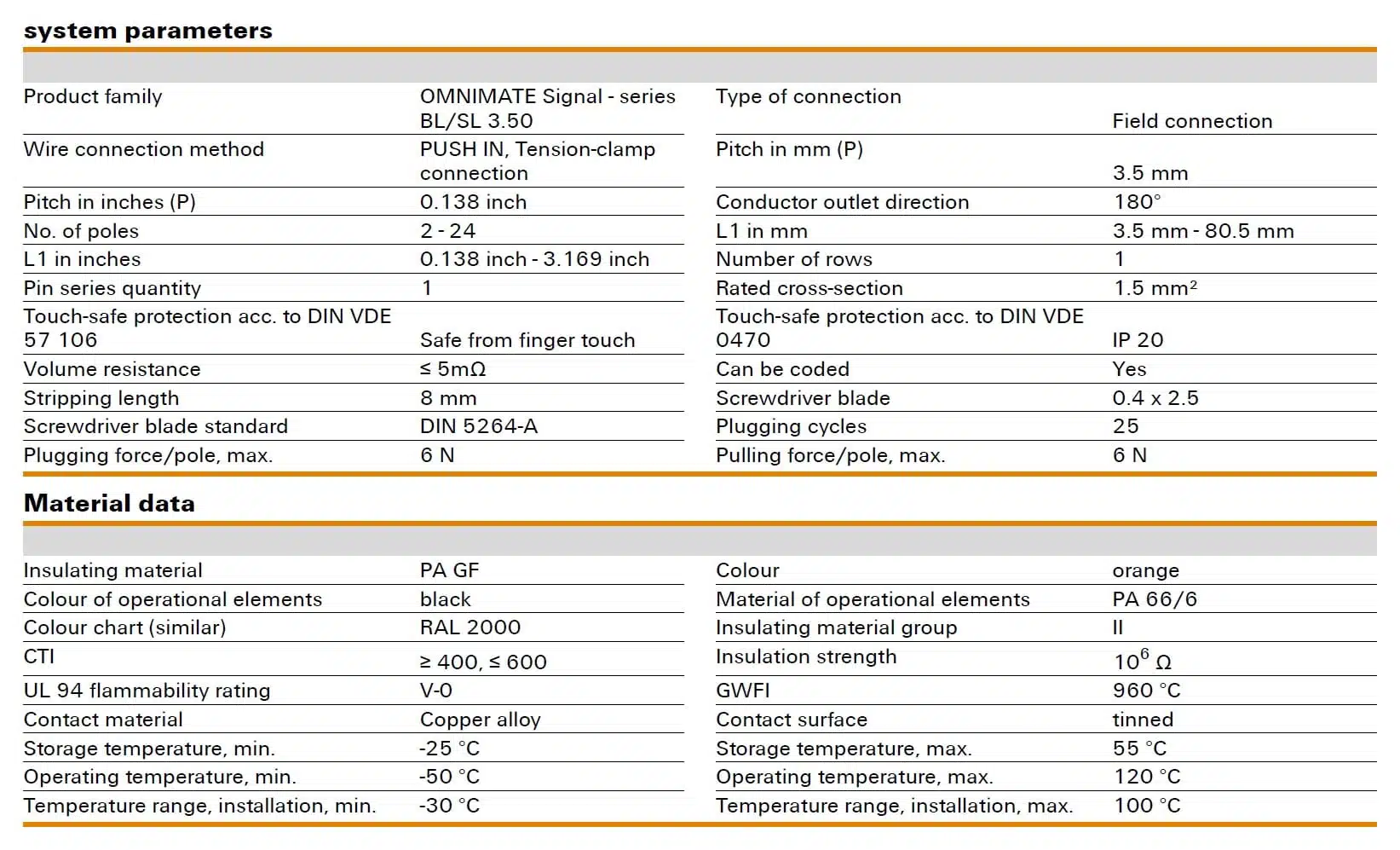

Weidmüller BLF 3.50/180 Specifications

Please see the relevant datasheet in the technical library for the exact specification
