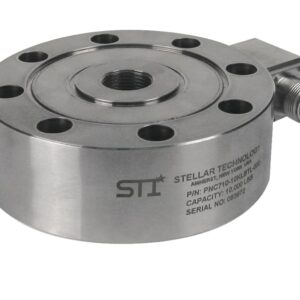

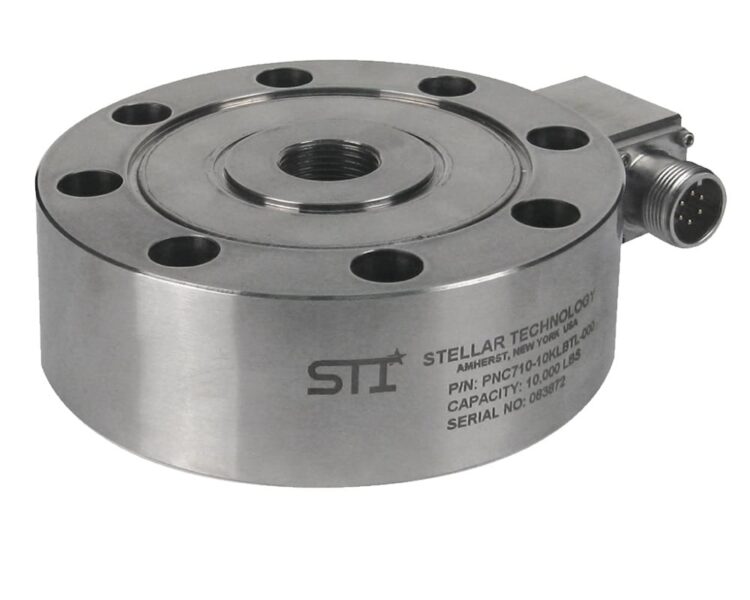

Stellar Technology PNC710 Series

Product Features

  • General purpose, high accuracy pancake tension and compression load cell
  • Barometric compensation
  • Shock and vibration resistant
  • Low profile design
  • All welded stainless steel construction
  • 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.002% FSO/°F
  • Temperature effect on span ±0.002% Reading/°F
  • Zero balance ±1% FSO

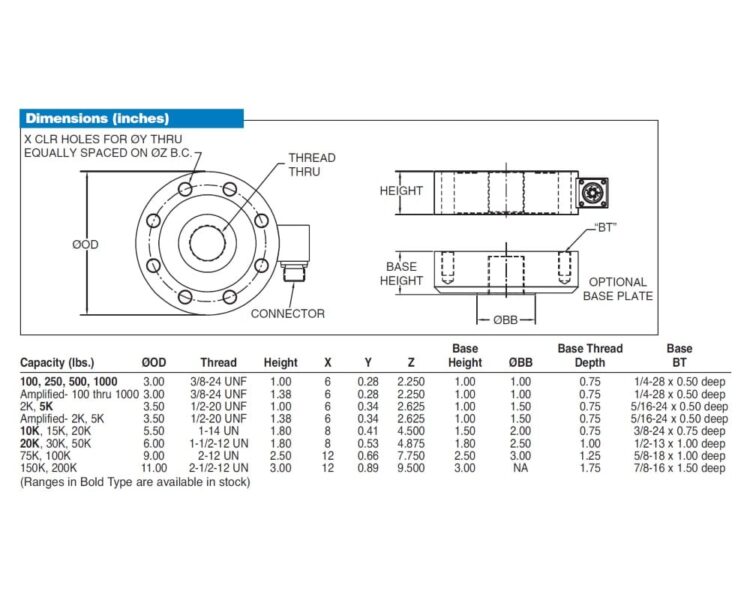

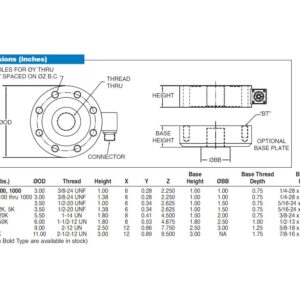

The PNC710 general purpose, high accuracy pancake load cell from Stellar Technology, offers maximum load ranges from 100lbs to 200k lbs with an accuracy of ±0.1% FSO (linearity) and hysteresis of 0.08% FSO. These force sensors incorporate a threaded-through centre hole with dual diaphragms and uniquely configured mounting holes, these design features result in improved accuracy and increased rigidity thus reducing both the effects if off-centre loading and side loading. The PNC710 series from Stellar Technology are constructed of all welded stainless steel for very demanding application environments, with bolt-on or welded-on stainless steel electrical connectors.

  • General purpose, high accuracy pancake tension and compression load cell
  • Low profile
  • Maximum load ranges from 100lbs to 200k lbs
  • Temperature range −65°F (-53.89°C) to +250°F (+121.1°C)
  • High accuracy of ±0.1% FSO BFSL (linearity)
  • Electrical output of 3mV/V ±50% FSO
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.002% FSO/°F
  • Temperature effect on span of ±0.002% reading/°F
  • Zero balance of ±1% FSO
  • Excellent off-axis capability
  • Barometric compensation, shock and vibration protection
  • Each unit comes with a 5 point calibration record traceable to NIST



Optional features for the Stellar Technology PNC710 series include:

  • Customer specified threaded centre hole
  • Metric versions
  • Customer specified electrical termination
  • Overload stops
  • Internal amplifier for high level analog and/or digital output
  • Special calibration
  • Dual/triple bridges
  • Operating Temperature range −320°F (-195.56°C) to +400°F (+204.4°C)
  • Submersible versions to 30,000ft (9,144m) in seawater

Potential markets for the Stellar Technology PNC710 series include:

  • Aerospace, defence systems
  • Alternative energy, industrial automation
  • Medical and pharmaceutical, power generation
  • Oil and Gas, process
  • Subsea, test and measurement
  • Transportation and automotive



Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Accuracy

±0.1% FS

Capacity

Customised Product, 100 lbs, 250 lbs, 500 lbs, 1k lbs, 2k lbs, 5k lbs, 10k lbs, 15k lbs, 20k lbs, 30k lbs, 50k lbs, 75k lbs, 100k lbs, 150k lbs, 200k lbs

Options

Amplified Capacity, Standard Capacity

Output

3mV/V

Series / Model

Temperature Range (°C)

-53.9 to +121.11°C

SKUCapacityOptions
Stellar Technology PNC710 Series100 lbsAmplified Capacity

Request Quote

Stellar Technology PNC710 Series1k lbsAmplified Capacity

Request Quote

Stellar Technology PNC710 Series250 lbsAmplified Capacity

Request Quote

Stellar Technology PNC710 Series2k lbsAmplified Capacity

Request Quote

Stellar Technology PNC710 Series500 lbsAmplified Capacity

Request Quote

Stellar Technology PNC710 Series5k lbsAmplified Capacity

Request Quote

Stellar Technology PNC710 SeriesCustomised ProductAmplified Capacity

Request Quote

Stellar Technology PNC710 Series100 lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series100k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series150k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series1k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series200k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series20k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series250 lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series2k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series30k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series500 lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series50k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series5k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series75k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series10k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 Series15k lbsStandard Capacity

Request Quote

Stellar Technology PNC710 SeriesCustomised ProductStandard Capacity

Request Quote
