Stellar Technology PNC700 Series

  • Stellar Technology

Product Features

  • General purpose, high accuracy pancake tension and compression load cell
  • Barometric compensation
  • Shock and vibration resistant
  • Low profile design
  • All welded stainless steel construction
  • 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.002% FSO/°F
  • Temperature effect on span ±0.002% Reading/°F
  • Zero balance ±1% FSO

Applications

  • Automotive
  • Medical
  • Military
  • Oil & Gas
  • Power Control
  • Renewables
  • Subsea
  • Test and Measurement

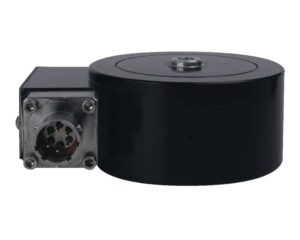

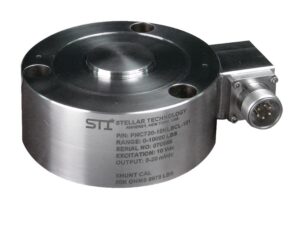

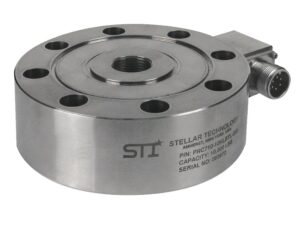

Description

The PNC700 general purpose, high accuracy pancake load cell from Stellar Technology, offers maximum load ranges from 100lbs to 100k lbs with an accuracy of ±0.05% FSO BFSL. These force sensors incorporate a threaded-through centre hole with dual diaphragms and uniquely configured mounting holes, these design features result in improved accuracy and increased rigidity thus reducing both the effects if off-centre loading and side loading. The PNC700 series from Stellar Technology are constructed of all welded stainless steel for very demanding application environments, with bolt-on or welded-on stainless steel electrical connectors.

  • General purpose, high accuracy pancake tension and compression load cell
  • Low profile
  • Maximum load ranges from 100lbs to 100k lbs
  • Temperature range −65°F (-53.89°C) to +250°F (+121.1°C)
  • High accuracy of ±0.05% FSO BFSL
  • Electrical output of 3mV/V (nominal)
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.002% FSO/°F
  • Temperature effect on span of ±0.002% reading/°F
  • Zero balance of ±1% FSO
  • Excellent off-axis capability
  • Barometric compensation, shock and vibration protection
  • Each unit comes with a 5 point calibration record traceable to NIST



Optional features for the Stellar Technology PNC700 series include:

  • Customer specified threaded centre hole
  • Metric versions
  • Customer specified electrical termination
  • Overload stops
  • Internal amplifier for high level analog and/or digital output
  • Special calibration
  • Dual/triple bridges
  • Operating Temperature range −320°F (-195.56°C) to +400°F (+204.4°C)
  • Submersible versions to 30,000ft (9,144m) in seawater

Potential markets for the Stellar Technology PNC700 series include:

  • Aerospace, defence systems
  • Alternative energy, industrial automation
  • Medical and pharmaceutical, power generation
  • Oil and Gas, process
  • Subsea, test and measurement
  • Transportation and automotive



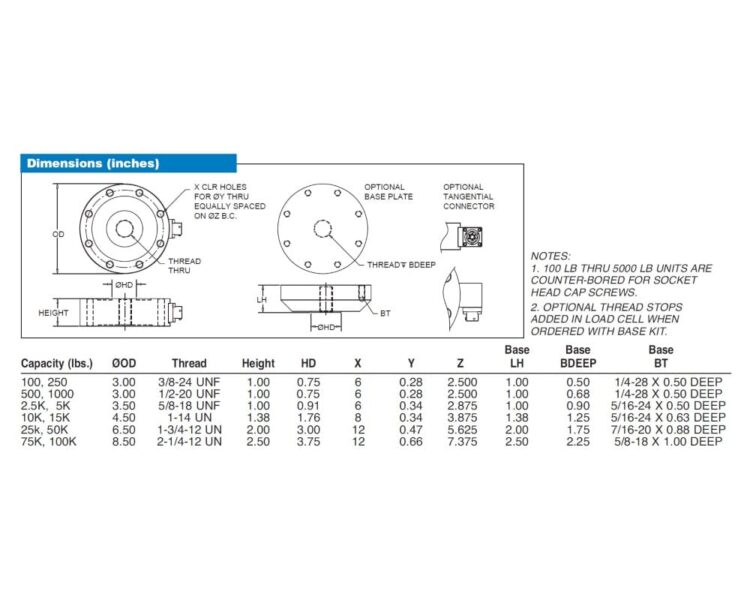

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Accuracy

Options

Series / Model

Additional Features

General purpose, high accuracy pancake tension and compression load cellBarometric compensationShock and vibration resistantLow profile designAll welded stainless steel construction5 point calibratio

Temperature Range (°C)

Output

Capacity

, , , , , ,

Stellar Technology PNC700 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology PNC700 general purpose, high accuracy tension and compression load cell datasheet
