  • General purpose, high accuracy pancake tension and compression load cell
  • Hysteresis of 0.08% FSO
  • Barometric compensation
  • Shock and vibration resistant
  • Low profile design
  • All welded stainless steel construction
  • 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.002% FSO/°F
  • Temperature effect on span ±0.002% Reading/°F
  • Zero balance ±1% FSO

Applications

  • Automotive
  • Medical
  • Military
  • Oil & Gas
  • Power Control
  • Renewables
  • Subsea
  • Test and Measurement

Description

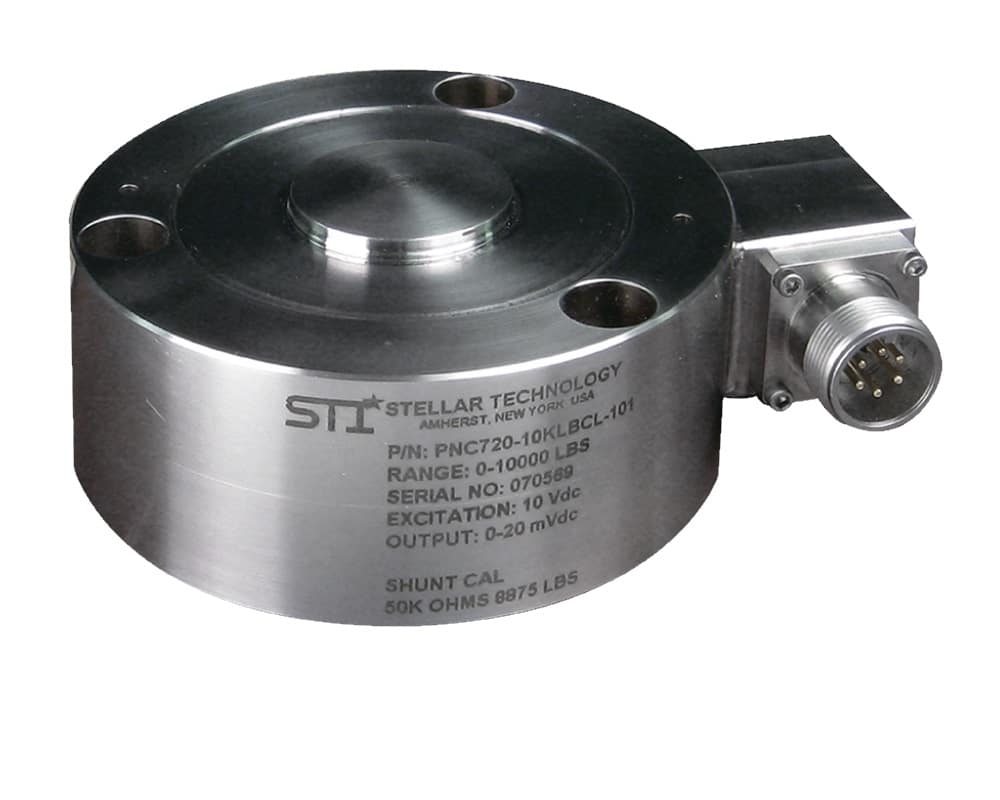

The PNC720 general purpose compression pancake load cell from Stellar Technology, offers maximum load ranges from 100lbs to 120k lbs with an accuracy of ±0.1% FSO (linearity) and hysteresis of 0.08% FSO. These load cells incorporate an integral spherical load button with welded dual diaphragms for improved accuracy and rigidity. The PNC720 series from Stellar Technology are constructed of all welded stainless steel for very demanding application environments, with bolt-on or welded-on stainless steel electrical connectors as standard.

  • General purpose compression load cell
  • Low profile design
  • Maximum load ranges from 100lbs to 120k lbs
  • Temperature range −65°F (-53.89°C) to +250°F (+121.1°C)
  • High accuracy of ±0.1% FSO BFSL (linearity)
  • Electrical output of 3mV/V ±50% FSO
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.002% FSO/°F
  • Temperature effect on span of ±0.002% reading/°F
  • Zero balance of ±1% FSO
  • Barometric compensation, shock and vibration protection
  • Each unit comes with a 5 point calibration record traceable to NIST

Optional features for the Stellar Technology PNC720 series include:

  • Customer specified electrical termination
  • Metric versions
  • Customer specified electrical termination
  • Overload stops
  • Internal amplifier for high level analog and/or digital output
  • Special calibration
  • Dual/triple bridges
  • Operating Temperature range −320°F (-195.56°C) to +400°F (+204.4°C)
  • Submersible versions to 30,000ft (9,144m) in seawater

Potential markets for the Stellar Technology PNC720 series include:

  • Aerospace, defence systems
  • Alternative energy, industrial automation
  • Medical and pharmaceutical, power generation
  • Oil and Gas, process
  • Subsea, test and measurement
  • Transportation and automotive

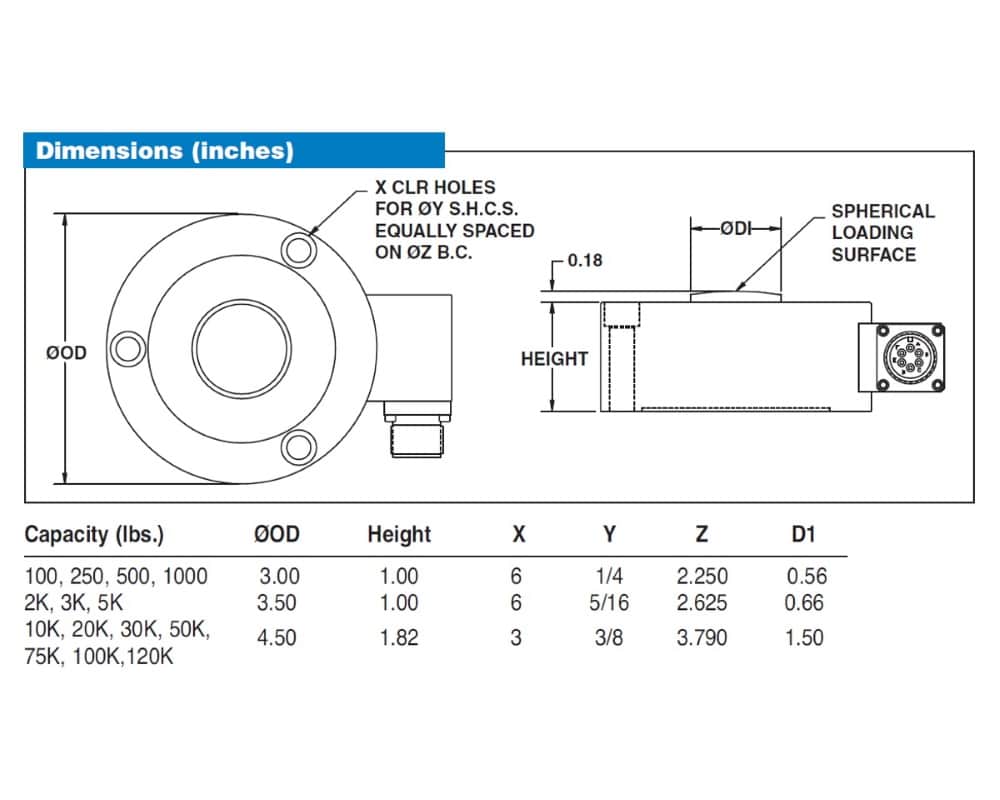

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Accuracy

Options

Series / Model

Output

Temperature Range (°C)

Capacity

, , , , , , , , ,

Stellar Technology PNC720 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology PNC720 general purpose compression pancake load cell datasheet
