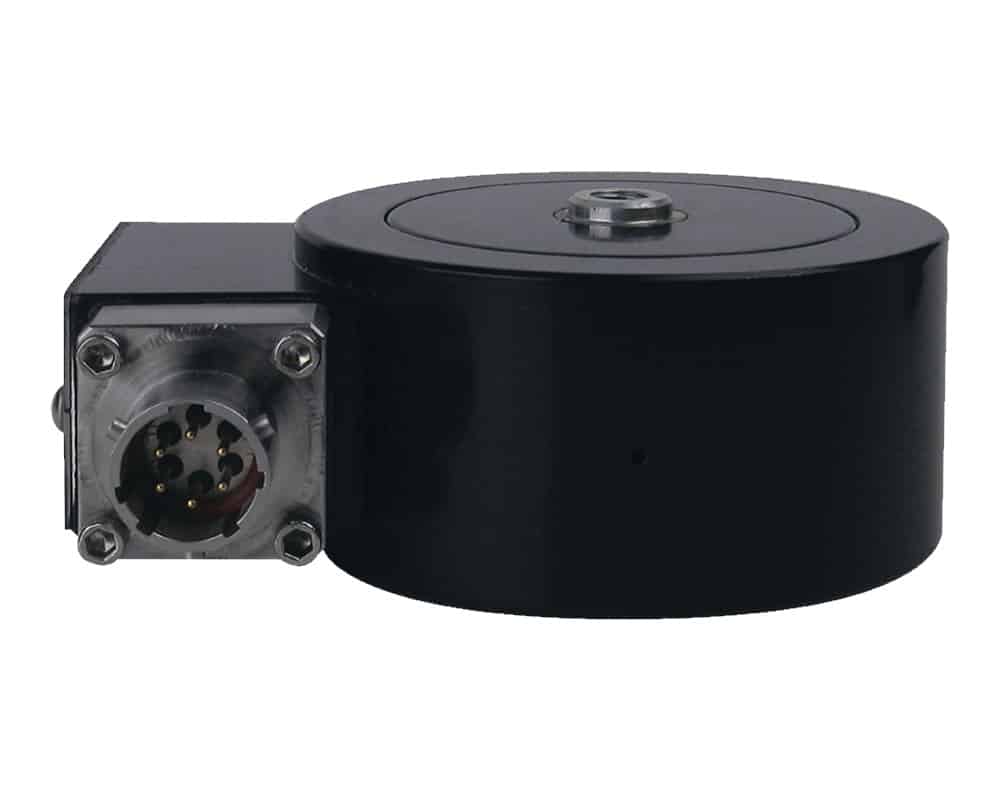

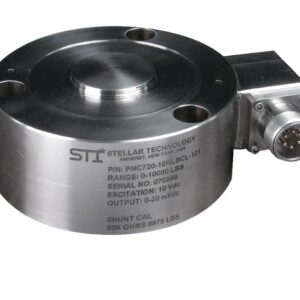

Stellar Technology PNC772 Series

  • Stellar Technology

Product Features

  • Low profile, lightweight and precise pancake load cell
  • Low off-axis sensitivity
  • Barometric compensation
  • Shock and vibration resistant
  • Compact size with integral base and bolt-on flange electrical connector
  • Life cycle of 10 million
  • 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.002% FSO/°F
  • Temperature effect on span ±0.002% Reading/°F
  • Zero balance ±1% FSO

Applications

The PNC772 low profile, lightweight and precision pancake load cell series from Stellar Technology, offers maximum load ranges of 25lbs, 50lbs, 100lbs, 200lbs and 300lbs with an accuracy of ±0.05% FSO BFSL. The PNC772 from Stella Technology load cells is designed with a bolt-on flange electrical connector, constructed of light weight aircraft aluminium for weight limited applications and incorporate an integral base for a more compact design.

  • Low profile, lightweight and precision pancake load cell
  • Compact size with integral base and bolt-on flange electrical connector
  • Maximum load ranges of 25lbs, 50lbs, 100lbs, 200lbs and 300lbs
  • Temperature range −65°F (-53.89°C) to +130°F (+54.44°C)
  • High accuracy of ±0.05% FSO BFSL
  • Electrical output of 2mV/V ±25% FSO
  • Light weight aircraft aluminium
  • Temperature effect on zero of ±0.002% FSO/°F
  • Temperature effect on span of ±0.002% reading/°F
  • Creep, in 30 min if 0.025% load
  • Zero balance of ±1% FSO
  • Barometric compensation, shock and vibration protection
  • Each unit comes with a 5 point calibration record traceable to NIST
  • Low off-axis sensitivity
  • Cycle life of 10 million



Optional features for the Stellar Technology PNC772 series include:

  • Customer specified connectors/cable lengths
  • Metric versions
  • Customer specified electrical termination
  • Internal amplifier for high level analog and/or digital output
  • Special calibration
  • Dual bridges

Potential markets for the Stellar Technology PNC772 series include:

  • Aerospace, defence systems
  • Alternative energy, industrial automation
  • Medical and pharmaceutical, power generation
  • Oil and Gas, process
  • Subsea, test and measurement
  • Transportation and automotive



Specifications

Weight 0.00000 kg

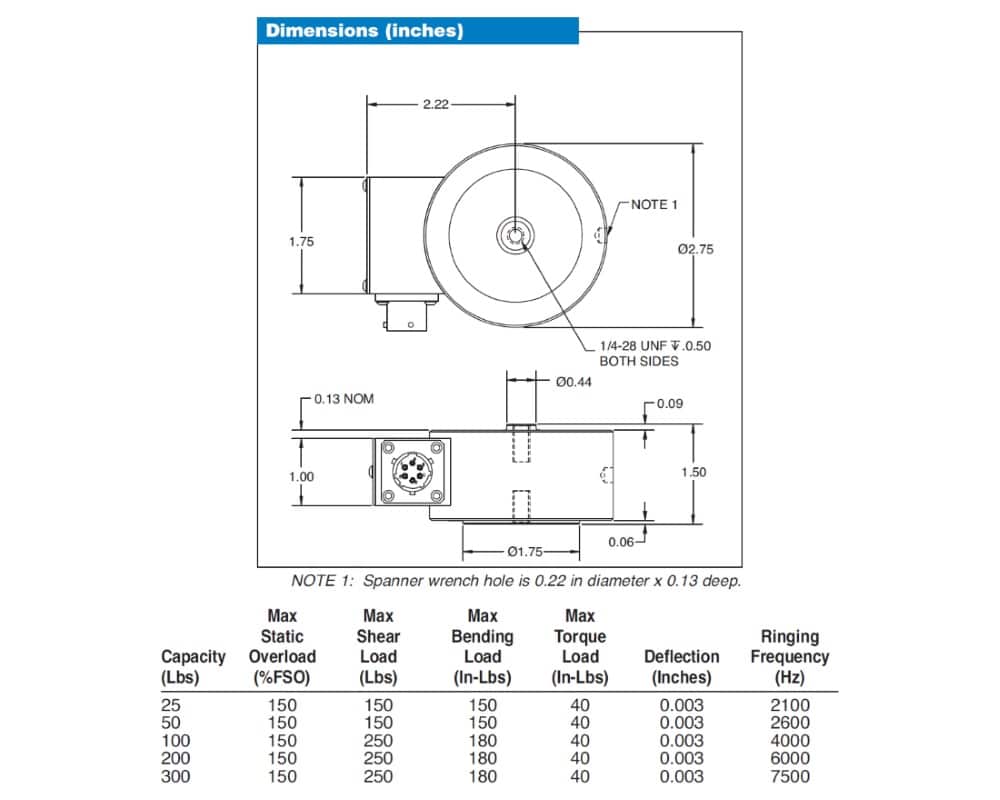

Dimensions 1.50 x 2.75 x 2.75mm
Accuracy

±0.05% FS

Capacity

Customised Product, 25 lbs, 50 lbs, 100 lbs, 200 lbs, 300 lbs

Options

Standard Capacity

Output

2mV/V

Series / Model

Temperature Range (°C)

-53.9 to +54.44°C

Stellar Technology PNC770/PNC772 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology PNC770/PNC772 low profile, lightweight and precision pancake load cell datasheet
