NVE AHL925-14E

  • NVE

Product Features

  • GMR low voltage nanopower digital switch
  • Power consumption of <14μW
  • Quiescent current of 75μA (typ.) at 2.4V
  • Continuous duty
  • Omnipolar response
  • Precise detection of low magnetic fields
  • Magnetic operate point 10Oe (typ.)
  • Magnetic release point 2Oe
  • Ultraminiature ULLGA Package

Applications

  • Compliant

Description

The AHL925-14E digital GMR sensors are ultraminiature magnetic switches designed to run on 1.5V batteries with extremely low power consumption of less than 14µW. Manufactured using NVE’ Spintronic GMR technology, and with continuously-operating duty cycle with a wide frequency response of 100kHz. The AHL series from NVE are considered ideal for battery-powered devices such as gas and water meters or portable instrumentation.

  • GMR low power switch sensor
  • Precision magnetic operate point of 10Oe (typ.)
  • Magnetic release point 2Oe
  • Supply voltage between 0.9V and 2.4V
  • Quiescent current of 75μA (typ.) at 2.4V
  • Precise detection of low magnetic fields
  • Continuous duty
  • Power of 180μW at 2.4v
  • Operating Temperature range from -40°C to +85°C
  • Ultraminiature ULLGA Package

The NVE AHL925-14E GMR nanopower digital switches covers the following applications:

  • Portable instruments
  • Utility meters
  • Lithium cell powered applications
  • Harvested power applications

The below table gives the full specifications of the NVE AHL series including the AHL925-14E

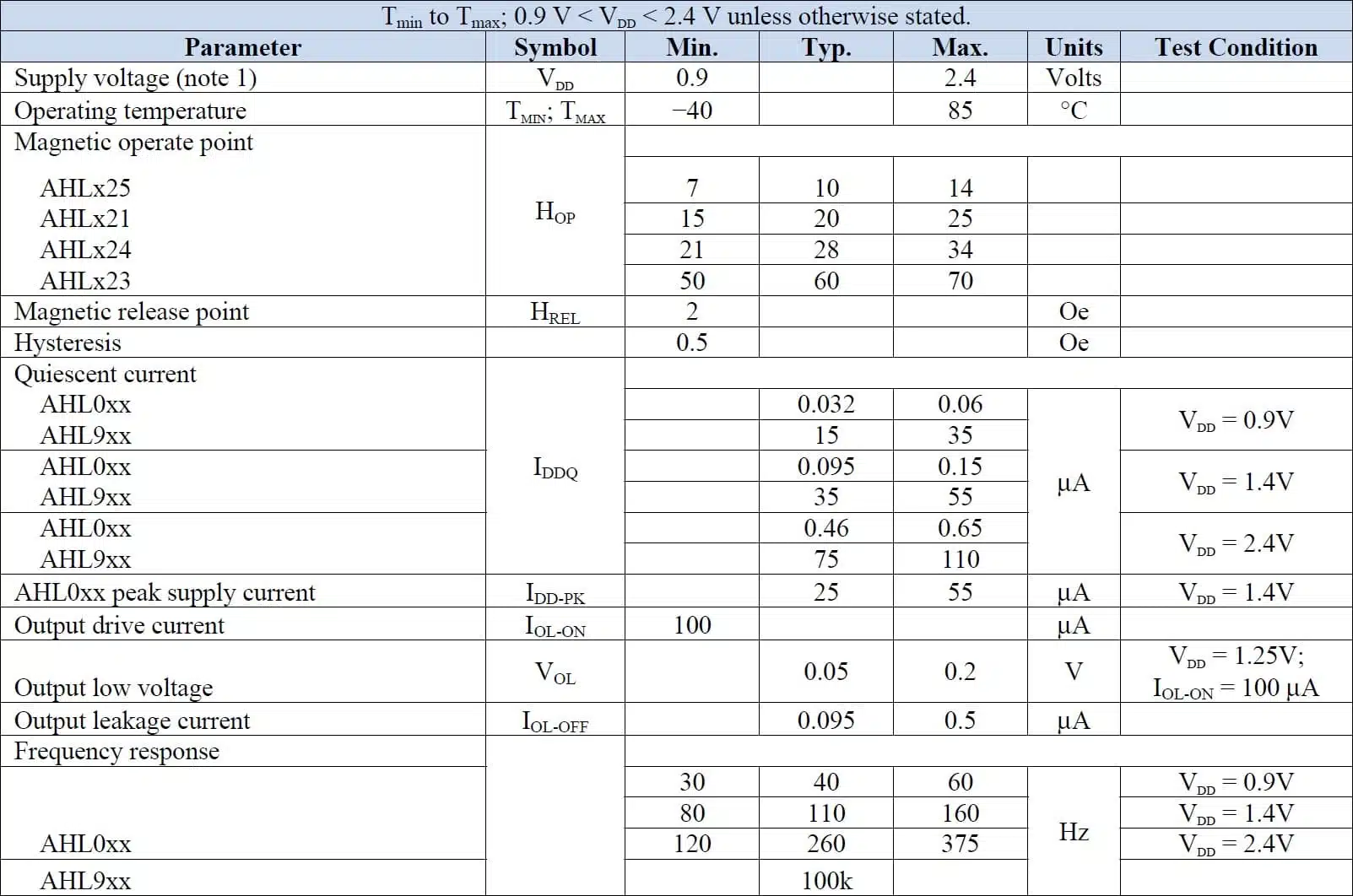

NVE AHL925-14E Specifications

1. Operation from -20°C to -40°C at supply voltage less than 1V may not meet specifications.

2. Soldering profile per JEDEC J-STD-020C, MSL 1.


Specifications

Weight 0.00500 kg
Dimensions 0.40 x 1.10 x 1.10mm
Hysteresis

Series / Model

Temperature Range (°C)

Output

Magnetic Orientation

Frequency Response
