SRT Microcéramique Product Catalogue

±10% series

SRT Microcéramique Radial Capacitor Dipped High Voltage

High voltage radial dipped capacitors
Capacitance from 0.4pF to 47µF
TCR options from ±30ppm/°C (NP0) to ±15% (X7R)
Voltages from 1kV to 15kV
IR 25°C/Un ≥10⁵MΩ or 1000Ω-Farad whichever is less *
Dielectrics: NP0, N2T, BX, 2C1, X7R
Operating temperatures from -55°C to +125°C

SRT Microcéramique Low Voltage High Capacitance X7R Capacitors

High capacitance SMD capacitors
Capacitance from 1.0µF to 47µF
TCR of ±15% with 0Vdc applied
Voltages from 4V to 100V
IR 25°C/Un 10⁴MΩ / 500Ω-Farad whichever is less *
Dielectric X7R
Operating temperatures of -55°C to +125°C **

SRT Microcéramique Low Voltage High Capacitance X5R Capacitors

High capacitance SMD capacitors
Capacitance from 1.0µF to 330µF
TCR of ±15% with 0Vdc applied
Voltages from 4V to 50V
IR 25°C/Un 10⁴MΩ / 500Ω-Farad whichever is less *
Dielectric X5R
Operating temperatures of -55°C, + 85°C

SRT Microcéramique Low Voltage High Capacitance X6S Capacitors

High capacitance SMD capacitors
Capacitance from 1.0µF to 330µF
TCR of ±22% with 0Vdc applied
Voltages from 2.5V to 50V
IR 25°C/Un 10⁴MΩ / 500Ω-Farad whichever is less *
Dielectric X6S
Operating temperatures of -55°C, + 105°C

SRT Microcéramique Low Voltage High Capacitance X7S Capacitors

High capacitance SMD capacitors
Capacitance from 1.0µF to 100µF
TCR of ±22% with 0Vdc applied
Voltages from 4V to 100V
IR 25°C/Un 10⁴MΩ / 500Ω-Farad whichever is less *
Dielectric X7S
Operating temperatures of -55°C to +125°C

SRT Microcéramique Low Voltage High Capacitance X7T Capacitors

High capacitance SMD capacitors
Capacitance from 1.0µF to 100µF
TCR of +22% -33% with 0Vdc applied
Voltages from 2.5V to 100V
IR 25°C/Un 10⁴MΩ / 500Ω-Farad whichever is less *
Dielectric X7T
Operating temperatures of -55°C, + 125°C

SRT Microcéramique SMD Extended Range Low Voltage Capacitors

SMD Low Voltage Capacitors (Extended Range)
Capacitance up to 220 µF
Voltages from 6.3V to 2000V
Operating temperature:
- NP0, X7R: -55°C to +125°C
- X5R: -55°C to +85°C
Tested in accordance with CECC 32100 and AEC-Q200

SRT Microcéramique SMD Low Inductance Class II Capacitors

Low Inductance Class II Capacitor
Capacitance from 1.0 nF to 1.5 µF
Voltages from 6.3 V to 50 V
Operating temperatures of -55°C to +125°C
Inverted geometry reduces the ESL up to 60% to standard MLCC
Tested in accordance with CECC 32100 and AEC-Q200

SRT Microcéramique SMD Low Voltage Class I Capacitors

Low Voltage Class I SMD Capacitor
Capacitance from 0.1 pF to 820 nF
TCR of ± 30ppm with 0Vdc applied
Voltages from 10V to 1000V
Operating temperatures of -55°C to +125°C
Tested in accordance to CECC 32100 and AEC-Q200

SRT Microcéramique SMD Low Voltage Class II Capacitors

Low Voltage Class II SMD Capacitor
Capacitance from 2.2 pF to 47 µF
TCR of ± 15% with 0Vdc applied (X7R) / +15% -25% at rated voltage (BX)
Voltages from 10V to 1000V
Operating temperatures of -55°C to +125°C
Tested in accordance to CECC 32100 and AEC-Q200

SRT Microcéramique SMD Low Voltage N2T Capacitors

Low Voltage N2T SMD Capacitor
Capacitance from 0.3 pF to 1.2 µF
TCR of -2200 ± 350 ppm/°C with 0Vdc applied
Voltages from 10V to 1000V
Operating temperatures of -55°C to +125°C
All PME SMD available in non magnetic termination

Caddock MP820 Series

TO-220 style power through-hole resistor
Metal mounting tab
Non-inductive design
Constructed with Caddock’s Micronox® resistance film technology
Maximum voltage rating of 300V
Operation up to +175°C case temperature
Resistor element is electrically isolated from the mounting surface

Caddock MP821 Series

TO-220 style power through-hole resistor
Metal mounting tab
Non-inductive design
Constructed with Caddock’s Micronox® resistance film technology
Operation up to +175°C case temperature
Resistor element is electrically isolated from the mounting surface

Caddock MP850 Series

TO-220 style power through-hole resistor
Integrated copper mounting surface in moulded package
Non-inductive design
Constructed with Caddock’s Micronox® resistance film technology
Maximum voltage rating of 300V
Operation up to +150°C case temperature
Resistor element is electrically isolated from the mounting surface

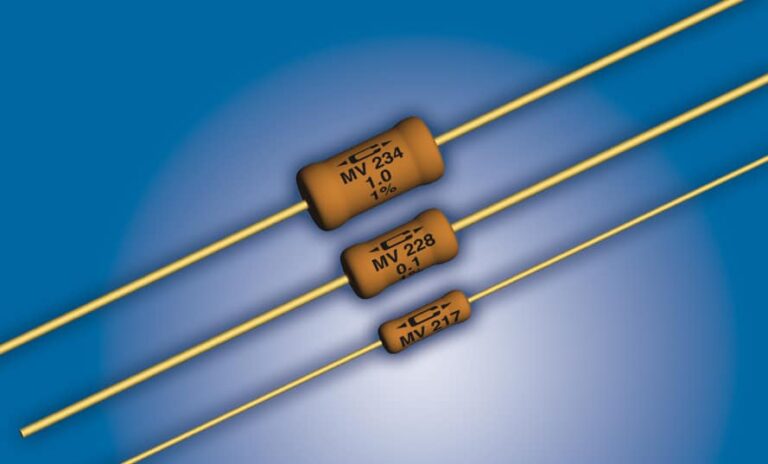

Caddock MV Series

Low resistance high temperature power axial leaded through-hole resistor
Maximum operating temperature up to +275°C
Utilises Caddock’s Micronox® resistance film
Five sizes and power ratings
Utilises Caddock’s non-inductive design

Jackcon HI-K DC Capacitor series

DC ceramic disc capacitor
Dissipation factor ≤2.5% (Y5P, Y5T and Y5U models) or ≤5% (Y5V models)
Insulation resistance of 10,000 MΩ min at 100Vdc over 1 minute
