  • SRT Microcéramique

SRT Microcéramique SMD High Voltage Class I Capacitors

SMD High Voltage Capacitor
  • High Voltage Class I SMD Capacitor
  • Capacitance from 0.1pF to 1µF
  • TCR of ± 30ppm with 0Vdc applied
  • Voltages from 1KV to 15KV
  • Operating temperatures of -55°C to +125°C
  • Tested in accordance to CECC 32100 and AEC-Q200
  • Compliant
  • SRT Microcéramique

SRT Microcéramique SMD High Voltage Class II Capacitors

SMD High Voltage Capacitor Class II
  • High Voltage Class II SMD Capacitor
  • Capacitance from 6.8pF to 10µF
  • TCR of ± 15% with 0Vdc applied
  • Voltages from 1kV to 15kV
  • Operating temperatures of -55°C to +125°C
  • Tested in accordance to CECC 32100 and AEC-Q200
  • Compliant
  • SRT Microcéramique

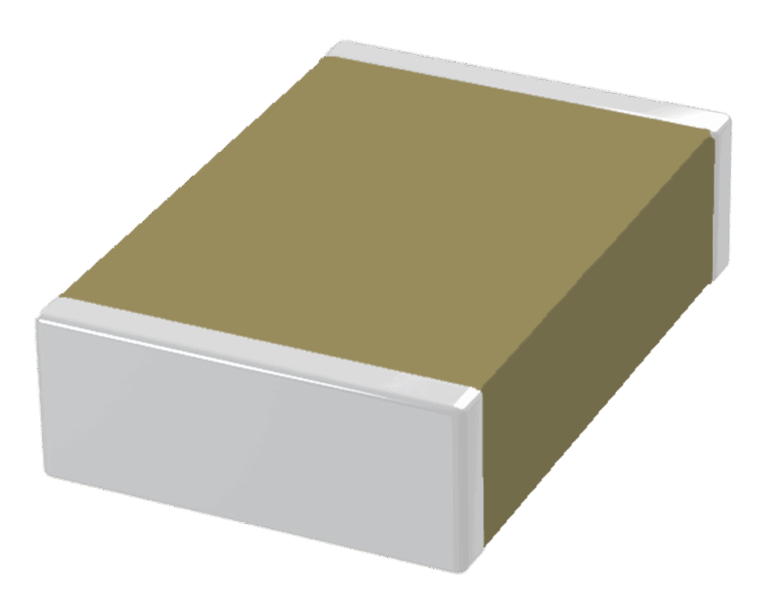

SRT Microcéramique SMD High Voltage N2T Capacitors

SRT Microceramique SMD High Voltage Capacitor N2T Dielectric
  • High Voltage N2T SMD Capacitor
  • No piezoelectric efect, high current pulse discharge
  • Capacitance from 1pF to 3.3µF
  • Voltages from 1kV to 15kV
  • Operating temperatures of -55°C to +125°C
  • Available in stack or radial
  • Compliant
  • SRT Microcéramique

SRT Microcéramique Stacked Capacitor High Voltage 10kV

  • High Voltage Stacked Capacitor
  • High Voltage Capability (1kV to 10kV)
  • Stacked MLCC Construction for High Capacitance
  • Available in NP0, N2T, and X7R dielectrics
  • Low ESR/ESL for High-Frequency Efficiency
  • 100% tested at elevated temperatures (125°C) and voltages for 48 hours
  • Compliant
  • Caddock

Caddock MG Standard Range

  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 600V up to 30kV *
  • Resistance values from 200Ω up to 2GΩ *
  • Tolerances of ±0.1%, ±0.25%, ±0.5% and ±1%
  • TCR as tight as ±80 ppm/°C from -15°C to +105°C
  • Maximum power rating from 0.5W up to 15W *
  • Operating Temperature Range of -55°C to +225°C
* Dependant on selected resistor model
  • Exempt
  • Caddock

Caddock MG Extended Range

  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 2kV up to 30kV *
  • Resistance values from 600Ω up to 10GΩ *
  • Tolerances of ±1% and ±5%
  • TCR as tight as ±80 ppm/°C from +25°C to +105°C
  • Operating Temperature Range of -55°C to +225°C
  • Maximum power rating from 1.5W up to 15W *
* Dependant on selected resistor model
  • Exempt
  • Caddock

Caddock USG1110 Series

  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Typical load life stability 0.025% per 1,000 hours
  • Temperature range -40°C to +85°C
  • Utilising Caddock’s Tetrinox® resistance film systems
  • Custom low TC HV strings are available: 50KV, 100KV, etc.
  • Exempt
  • Exxelia Ohmcraft

Exxelia Ohmcraft UHVC 2512

High Voltage Chip Resistor UHVC Series
  • Ultra High Voltage SMD Resistors
  • Resistance range from 120MΩ to 50GΩ
  • Tolerances from ±1% to ±20%
  • TCR of ±100 ppm/°C or ±200 ppm/°C
  • Voltage rating from 4kV to 10kV
  • Temperature range from -55°C to +150°C
  • Available
  • Exxelia Ohmcraft

Exxelia Ohmcraft UHVC 3512

High Voltage Chip Resistor UHVC Series
  • Ultra High Voltage SMD Resistors
  • Resistance range from 85MΩ to 50GΩ
  • Tolerances from ±1% to ±20%
  • TCR of ±100 ppm/°C or ±200 ppm/°C
  • Voltage rating from 4kV to 14kV
  • Temperature range from -55°C to +150°C
  • Available
  • Exxelia Ohmcraft

Exxelia Ohmcraft UHVC 4020

High Voltage Chip Resistor UHVC Series
  • Ultra High Voltage SMD Resistors
  • Resistance range from 150MΩ to 50GΩ
  • Tolerances from ±1% to ±20%
  • TCR of ±100 ppm/°C or ±200 ppm/°C
  • Voltage rating from 6kV to 16kV
  • Temperature range from -55°C to +150°C
  • Available
  • Exxelia Ohmcraft

Exxelia Ohmcraft UHVC 5020

High Voltage Chip Resistor UHVC Series
  • Ultra High Voltage SMD Resistors
  • Resistance range from 90MΩ to 50GΩ
  • Tolerances from ±1% to ±20%
  • TCR of ±100 ppm/°C or ±200 ppm/°C
  • Voltage rating from 6kV to 20kV
  • Temperature range from -55°C to +150°C
  • Available
  • Exxelia Ohmcraft

Exxelia Ohmcraft HVD 10

HVD Series | Exxelia Ohmcraft
  • High Voltage Divider
  • Resistance range from 100kΩ to 1TΩ
  • Ratio tolerances from ±0.1% to ±20%
  • TCR from ±25 ppm/°C to >±200 ppm/°C
  • Power rating of 1W
  • Voltage rating of 10kV
  • Temperature range from -55°C to +150°C
  • Available
  • Exxelia Ohmcraft

Exxelia Ohmcraft HVR 21

  • High Voltage Resistors
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.1% to ±20%
  • TCR from ±25 ppm/°C to >±200 ppm/°C
  • Power rating of 1W
  • Voltage rating of 10kV
  • Temperature range from -55°C to +150°C
  • Available
  • SRT Microcéramique

SRT Microcéramique High Voltage NP0 Capacitor Series (2kV-10kV)

NP0 Capacitor Series | High Voltage | SRT Microcéramique
  • Ultra stable ceramic capacitor
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 10.10-4 at 1Vrms and 1kHz (or 1MHz)
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E
  • Exempt
  • SRT Microcéramique

SRT Microcéramique High Voltage X7R Capacitor Series (2kV-10kV)

X7R Capacitor Stack Series | High Capacitance | SRT Microcéramique
  • Stable ceramic capacitor
  • High quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025 at 1kHz for C over 1nF, and up to 0.025 at 1MHz for C up to 1nF
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E
  • Exempt

SRT Microcéramique SMD High Voltage Class I Capacitors

  • High Voltage Class I SMD Capacitor
  • Capacitance from 0.1pF to 1µF
  • TCR of ± 30ppm with 0Vdc applied
  • Voltages from 1KV to 15KV
  • Operating temperatures of -55°C to +125°C
  • Tested in accordance to CECC 32100 and AEC-Q200

SRT Microcéramique SMD High Voltage Class II Capacitors

  • High Voltage Class II SMD Capacitor
  • Capacitance from 6.8pF to 10µF
  • TCR of ± 15% with 0Vdc applied
  • Voltages from 1kV to 15kV
  • Operating temperatures of -55°C to +125°C
  • Tested in accordance to CECC 32100 and AEC-Q200

SRT Microcéramique SMD High Voltage N2T Capacitors

  • High Voltage N2T SMD Capacitor
  • No piezoelectric efect, high current pulse discharge
  • Capacitance from 1pF to 3.3µF
  • Voltages from 1kV to 15kV
  • Operating temperatures of -55°C to +125°C
  • Available in stack or radial

SRT Microcéramique Stacked Capacitor High Voltage 10kV

  • High Voltage Stacked Capacitor
  • High Voltage Capability (1kV to 10kV)
  • Stacked MLCC Construction for High Capacitance
  • Available in NP0, N2T, and X7R dielectrics
  • Low ESR/ESL for High-Frequency Efficiency
  • 100% tested at elevated temperatures (125°C) and voltages for 48 hours

Caddock MG Standard Range

  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 600V up to 30kV *
  • Resistance values from 200Ω up to 2GΩ *
  • Tolerances of ±0.1%, ±0.25%, ±0.5% and ±1%
  • TCR as tight as ±80 ppm/°C from -15°C to +105°C
  • Maximum power rating from 0.5W up to 15W *
  • Operating Temperature Range of -55°C to +225°C
* Dependant on selected resistor model

Caddock MG Extended Range

  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 2kV up to 30kV *
  • Resistance values from 600Ω up to 10GΩ *
  • Tolerances of ±1% and ±5%
  • TCR as tight as ±80 ppm/°C from +25°C to +105°C
  • Operating Temperature Range of -55°C to +225°C
  • Maximum power rating from 1.5W up to 15W *
* Dependant on selected resistor model

Caddock USG1110 Series

  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Typical load life stability 0.025% per 1,000 hours
  • Temperature range -40°C to +85°C
  • Utilising Caddock’s Tetrinox® resistance film systems
  • Custom low TC HV strings are available: 50KV, 100KV, etc.

Exxelia Ohmcraft UHVC 2512

  • Ultra High Voltage SMD Resistors
  • Resistance range from 120MΩ to 50GΩ
  • Tolerances from ±1% to ±20%
  • TCR of ±100 ppm/°C or ±200 ppm/°C
  • Voltage rating from 4kV to 10kV
  • Temperature range from -55°C to +150°C

Exxelia Ohmcraft UHVC 3512

  • Ultra High Voltage SMD Resistors
  • Resistance range from 85MΩ to 50GΩ
  • Tolerances from ±1% to ±20%
  • TCR of ±100 ppm/°C or ±200 ppm/°C
  • Voltage rating from 4kV to 14kV
  • Temperature range from -55°C to +150°C

Exxelia Ohmcraft UHVC 4020

  • Ultra High Voltage SMD Resistors
  • Resistance range from 150MΩ to 50GΩ
  • Tolerances from ±1% to ±20%
  • TCR of ±100 ppm/°C or ±200 ppm/°C
  • Voltage rating from 6kV to 16kV
  • Temperature range from -55°C to +150°C

Exxelia Ohmcraft UHVC 5020

  • Ultra High Voltage SMD Resistors
  • Resistance range from 90MΩ to 50GΩ
  • Tolerances from ±1% to ±20%
  • TCR of ±100 ppm/°C or ±200 ppm/°C
  • Voltage rating from 6kV to 20kV
  • Temperature range from -55°C to +150°C

Exxelia Ohmcraft HVD 10

  • High Voltage Divider
  • Resistance range from 100kΩ to 1TΩ
  • Ratio tolerances from ±0.1% to ±20%
  • TCR from ±25 ppm/°C to >±200 ppm/°C
  • Power rating of 1W
  • Voltage rating of 10kV
  • Temperature range from -55°C to +150°C

Exxelia Ohmcraft HVR 21

  • High Voltage Resistors
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.1% to ±20%
  • TCR from ±25 ppm/°C to >±200 ppm/°C
  • Power rating of 1W
  • Voltage rating of 10kV
  • Temperature range from -55°C to +150°C

SRT Microcéramique High Voltage NP0 Capacitor Series (2kV-10kV)

  • Ultra stable ceramic capacitor
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 10.10-4 at 1Vrms and 1kHz (or 1MHz)
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

SRT Microcéramique High Voltage X7R Capacitor Series (2kV-10kV)

  • Stable ceramic capacitor
  • High quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025 at 1kHz for C over 1nF, and up to 0.025 at 1MHz for C up to 1nF
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E
