Caddock MG Extended Range

Caddock MG Extended Range
Caddock MG Extended Range
Caddock MG Extended Range
Caddock MG Extended Range
Caddock MG Extended Range
  • Caddock

Product Features

  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 2kV up to 30kV *
  • Resistance values from 600Ω up to 10GΩ *
  • Tolerances of ±1% and ±5%
  • TCR as tight as ±80 ppm/°C from +25°C to +105°C
  • Operating Temperature Range of -55°C to +225°C
  • Maximum power rating from 1.5W up to 15W *

* Dependant on selected resistor model

Applications

  • Medical
  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

Description

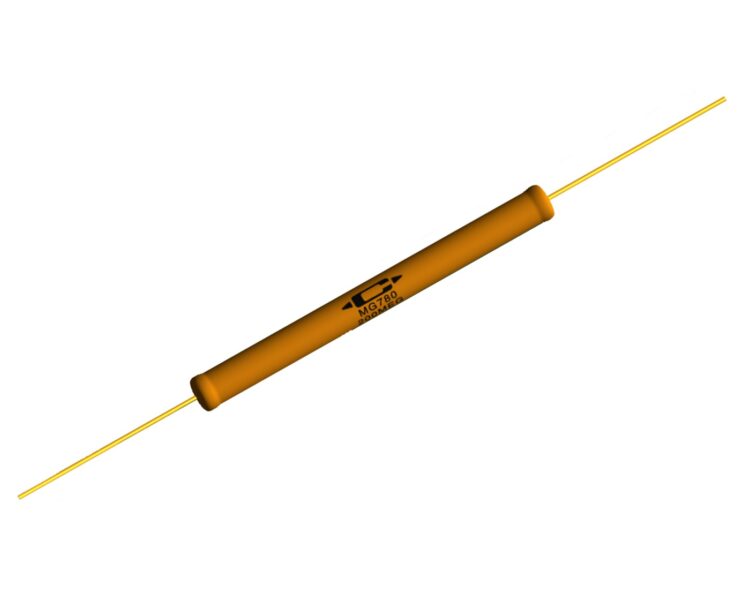

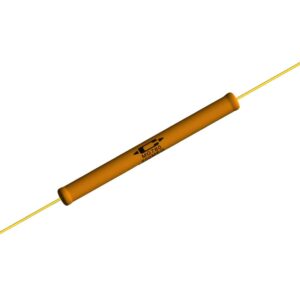

The MG precision high-voltage axial resistor range with extended values from Caddock offers a resistance range from 600Ω up to 10GΩ and a voltage rating up to 30kV with the possibility of 1.5 times maximum continuous operating voltage for 5 seconds. The power rating for these resistors is up to 15W with the possibility of 5 times rated power for 5 seconds (not exceeding maximum voltage). The MG series offers tolerances of ±1% and ±5% and has demonstrated stability of 0.01% per 1,000 hours in extended load life testing. Caddock’s Micronox® resistance films are the source of their outstanding combination of performance features.

  • Cylindrical high voltage axial leaded resistor
  • Resistance values from 600Ω up to 10GΩ *
  • Tolerances of ±1% and ±5%
  • TCR as tight as ±80 ppm/°C from +25°C to +105°C, -200 ppm/°C to +50 ppm/°C from -15°C to +25°C
  • Operating Temperature Range of -55°C to +225°C
  • Maximum operating voltage from 2kV up to 30kV *
  • Maximum power rating from 1.5W up to 15W *
  • Excellent long-term stability of 0.01% per 1,000 hours
  • All models are manufactured with Caddock’s non-inductive design

* Dependant on selected resistor model

Typical applications for the MG precision high-voltage axial resistor range with extended values include:

  • TWT HV power supplies
  • Electron microscopes
  • E-beam equipment
  • Electrical distribution HV monitor dividers
  • X-ray systems
  • Geophysical instruments
  • Medical electronics
  • HV & Compact instrument probes




Caddock MG Extended Range Specification Table

Model No.WattageMax voltageCoating dielectric strengthResistance rangeToleranceTCR
MG7171.5W2kV750ACrms600Ω to 225MΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7212W4kV750ACrms200Ω to 300MΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7303W6kV1000ACrms500Ω to 750MΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7312.6W4kV1000ACrms200Ω to 750MΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7353.6W10kV1000ACrms750Ω to 1GΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7403.6W6kV1000ACrms300Ω to 1.5GΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7455W15kV1000ACrms1kΩ to 1.5GΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7505W10kV1000ACrms400Ω to 2.5GΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7807.5W15kV1000ACrms600Ω to 3.75GΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG7858W20kV1000ACrms800Ω to 5GΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG81010W25kV1000ACrms1kΩ to 6.25GΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C
MG81515W30kV1000ACrms1kΩ to 10GΩ±1% / ±5%±80 ppm/°C from +25°C to +105°C
-200 ppm/°C to +50 ppm/°C from -15°C to +25°C


Caddock Electronics, Inc. manufactures High Performance, High Stability Film Resistors designed for precision applications. Caddock uses unique resistance film technologies and process technologies to create solutions for performance demanding applications. Their product line consists of over 250 models, spanning a multitude of series, all of which are manufactured at their facilities in Roseburg, Oregon, USA. Please visit www.caddock.com for more information.

Specifications

Series / Model

Voltage Rating

, , , , , , ,

Minimum Resistance

Maximum Resistance

Tolerance

,

Temperature Coefficient

,

Power Rating

, , , , , , , , ,

Caddock MG Series Ordering Info

The MG range is available with various options. The information below gives an example of the part numbering system used for these resistors and the options available.

Caddock MG Series Ordering Info

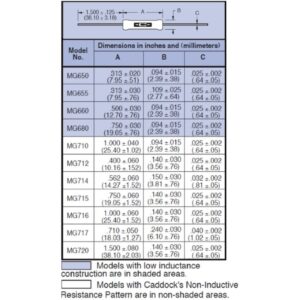

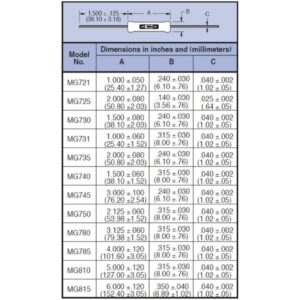

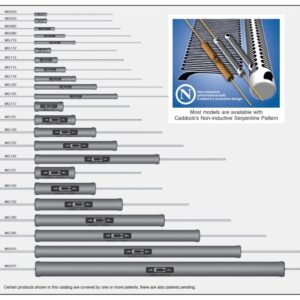

Caddock MG Series – Available Models


Model No. Standard Range -15 Range Extended Range
MG650
MG655
MG660
MG680
MG710
MG712
MG714
MG715
MG716
MG717
MG720
MG721
MG725
MG730
MG731
MG735
MG740
MG745
MG750
MG780
MG785
MG810
MG815
