Caddock USG1110 Series

  • Caddock

Product Features

  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Typical load life stability 0.025% per 1,000 hours
  • Operating temperature -40°C to +85°C
  • Utilising Caddock’s Tetrinox® resistance film systems
  • Custom low TC HV strings are available: 50KV, 100KV, etc.

Applications

Description

The USG1110 series from Caddock are ultra-stable precision high voltage resistors. The resistance values available are 100MΩ and 150MΩ with a TCR of 10 ppm/°C or 20 ppm/°C and a tolerance of ±0.10% or ±0.20% depending on the resistance value required. The USG1110 series from Caddock uses the Tetrinox® resistance film system and was developed to optimize low temperature coefficient performance and long term stability performance.

  • Ultra-stable precision high voltage axial leaded film through-hole resistors
  • Resistance values available are 100MΩ and 150MΩ
  • TCR of 10 ppm/°C or 20 ppm/°C depending on the resistance value required
  • Tolerance of ±0.1% or ±0.2% depending on the resistance value required
  • Operating temperature -40°C to +85°C
  • Maximum voltage rating 10KV
  • Typical load life stability 0.025% per 1,000 hours
  • Utilising Caddock’s Tetrinox® resistance film systems

The low TCR of the Type USG1110 resistors minimizes temperature related drift due to temperature gradients that may exist due to the placement of the resistor components in the high voltage assembly

The below table gives the specifications available for the USG1110 series:

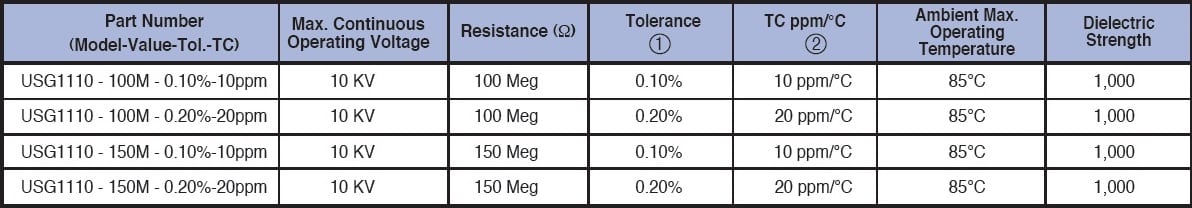

Caddock USG1110 series Specifications

* Please see the datasheet for the specification notes.

Specifications

Weight 0.00000 kg

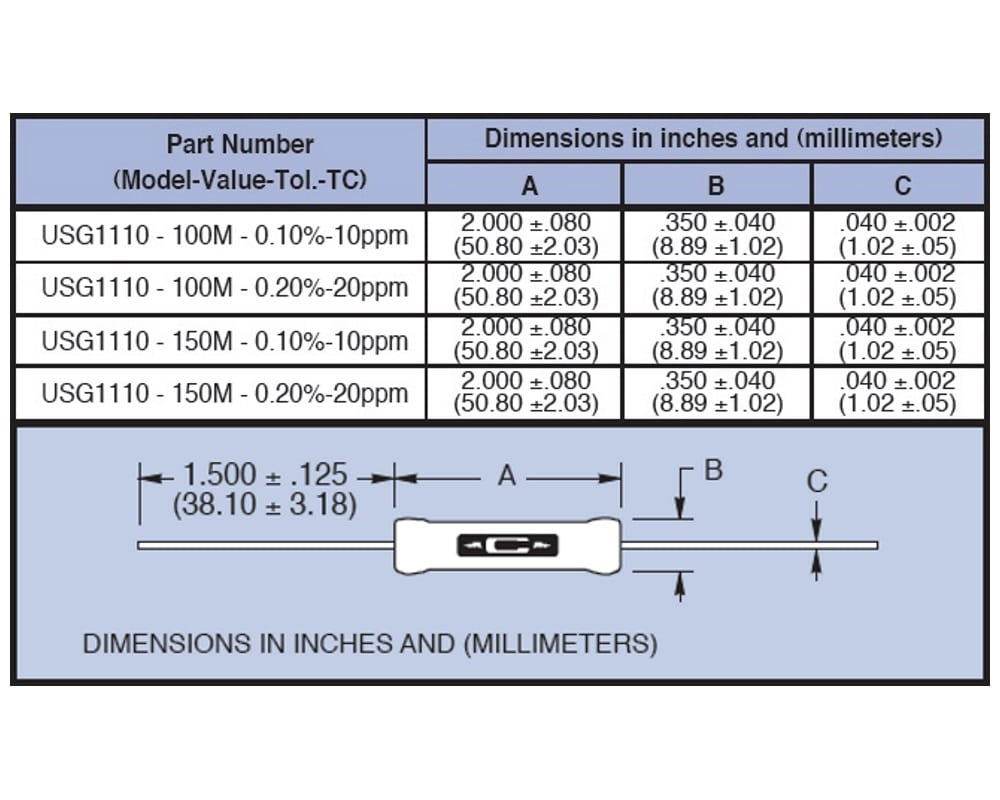

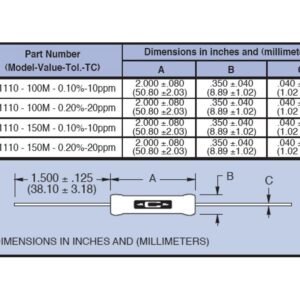

Dimensions 50.80 × 8.89 × 0.00 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

,

Additional Features

Ultra-stable precision high voltage axial leaded film through-hole resistorsTypical load life stability 0.025% per 1,000 hoursOperating temperature -40°C to +85°CUtilising Caddock's Tetrinox® resi

Tolerance

,

Voltage Rating

RoHS Compliant Product – Caddock

This product is available fully compliant to the RoHS EU directive 2011/65/EU and 2015/863/EU
