SRT Microcéramique High Voltage NP0 Capacitor Series (2kV-10kV)

  • Exempt
  • SRT Microcéramique

Product Features

  • Ultra stable ceramic capacitor
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 10.10-4 at 1Vrms and 1kHz (or 1MHz)
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement

Description

The NP0 (Type 1) high voltage, ultra-stable ceramic chip MLCC capacitor series from SRT Microcéramique offers a vast range of options to suit any demand, including capacitance between 0.47pF to 47nF across a range of chip sizes from 1206 to 8060, selection of tolerances (±0.25pF, ±0.5pF, ±1%. ±2%, ±5%, ±10%, ±20% and -20% to +80%), voltages (2kV, 3kV, 4kV, 5kV and 10kV) and a wide range of terminations. As with all SRT-MC components, the NP0 capacitors are popular in safety-critical industries thanks to their excellent quality and reliability, as well as zero ageing rate up to 10000 hours, zero voltage coefficient of capacitance and change of capacitance with frequency, and very low-temperature coefficient of capacitance. Their operating temperature is between -55°C and +125°C.

  • High voltage, ultra-stable ceramic, chip MLCC capacitors
  • Available in capacitance ratings between 0.47pF and 47nF
  • Available in standard chip sizes from 1206 to 8060
  • Dissipation factor under 10.10-4 at 1Vrms and 1kH (or 1MHz)
  • Temperature coefficient of ±30ppm
  • Selection of Voltage ratings: 2kV, 3kV, 4kV, 5kV and 10kV
  • Selection of tolerances: ±0.25pF, ±0.5pF, ±1%. ±2%, ±5%, ±10%, ±20% and -20% to +80%
  • Temperature range between -55°C and +125°C

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver
  • Tin-plated Nickel
  • Tin-plated Copper
  • Flexible Tin-plated polymer (Microflex), improving the resistance to brittle fracture if the board is subject to flexion or vibration

While this capacitor series offers a large number of options, customisation is possible on all SRT Microcéramique components – if none of the given options are suitable for your application, please contact us to discuss the custom solutions available.

The dielectric strength test for the NP0 capacitors is performed per method 103 of EIA 198-2-E

Typical applications for the SRT-MC NP0 series of high voltage ceramic capacitors include:

  • Passing
  • Coupling
  • Filtering
  • Blocking
  • Applications where high stability of dielectric characteristics is required

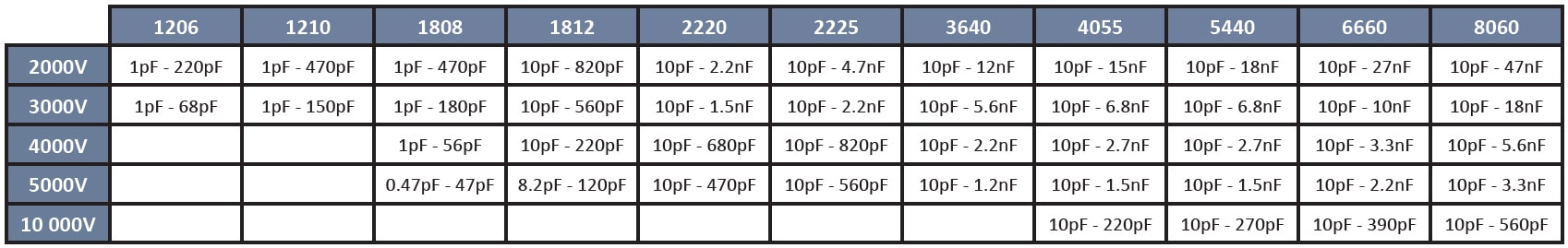

The below table gives the specifications overview for each capacitor model available within the NP0 high voltage series between 2kV and 10kV:

SRT Microcéramique High Voltage NP0 capacitor series (2kV to 10kV)



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Additional Features

Ultra stable ceramic capacitorHighest quality and reliability, suitable for safety-critical industriesDissipation factor under 10.10-4 at 1Vrms and 1kHz (or 1MHz)Insulation resistance of 25°C/Un 105

Tolerance

, , , , , , ,

Temperature Range (°C)

Package / Size

, , , , , , , , ,

Voltage Rating

, , , ,

SRT Microceramique Capacitance Value note

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
