Susumu PAT4556 Series

Susumu PAT4556 Series
Susumu PAT4556 Series
Susumu PAT4556 Series
  • Susumu

Product Features

  • Surface-mount high precision chip attenuator
  • Rated operating temperature +70°C
  • Temperature range of −55°C to +125°C

Applications

  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

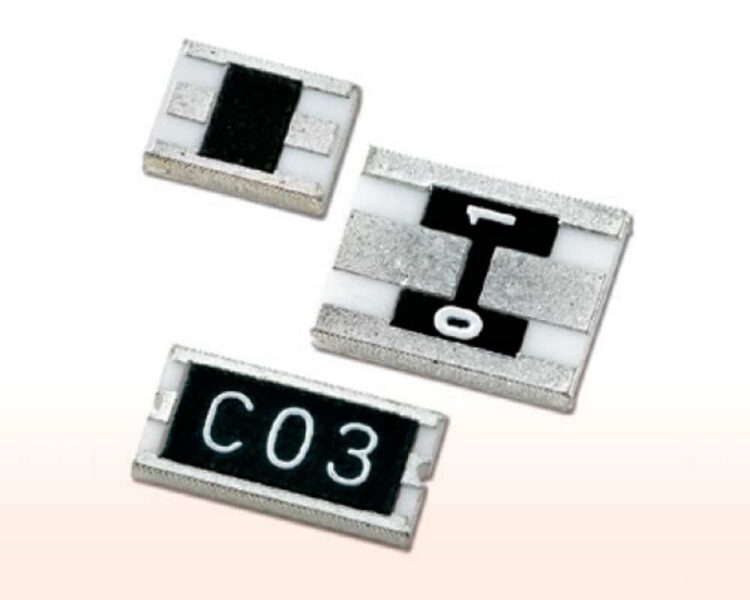

The PAT4556 series are thin film precision chip attenuators from Susumu offers designers low noise and good high-frequency characteristics which makes it possible to handle circuits with different frequencies with ease. The Susumu PAT4556 series has a wider frequency range of DC∼10GHz and and is available in a chip size of 2218. The distribution of the signal terminals in the middle and ground terminals at the ends, are designed for easy integration to coaxial connectors.

  • Surface-mount high precision chip attenuator
  • Attenuation between 0dB∼10dB, 13dB, 16dB or 20dB
  • Attenuation tolerance values between ±0.1dB to ±0.5dB depending on the attenuation and frequency required
  • Impedance value of 50Ω
  • Operating frequency of DC∼10GHz
  • Rated power of 0.5W
  • Chip size 2218
  • Rated operating temperature +70°C
  • Temperature range is −55°C to +125°C



Susumu PAT4556 series thin film precision chip attenuators are ideal for the following applications:

  • Attenuator for coaxial lines/circuit
  • Attenuator for measuring instrumentation



The below table gives the full specifications of the Susumu PAT series W type including the PAT4556:

Susumu PAT4556 Specifications
Please see the below table which includes the attenuation tolerance for the PAT3042 and PAT4556



Table 1
* Only PAT4556





Specifications

Weight 0.00000 kg

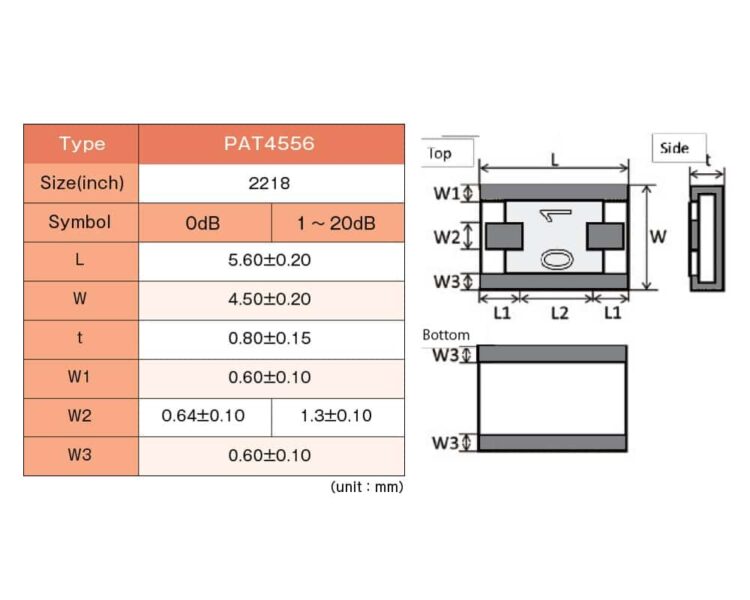

Dimensions 5.60 × 4.50 × 0.80 mm
Series / Model

Power Rating

Tolerance

,

Operating Frequency

Impedance

Attenuation

, , , , , , , , , , , , ,

Susumu PATW Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Susumu PAT precision thin film chip attenuator series (W type) datasheet
Susumu product selection guide and handling care information
Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

Susumu Video Library

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

Susumu PAT4556 Series Resources

Product Datasheet

Supporting Manufacturer Information
