Susumu PAT3060H Series

  • Susumu

Product Features

  • Surface-mount high precision chip attenuator
  • Rated operating temperature of +70°C
  • Temperature range of −55°C to +125°C

Applications

  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

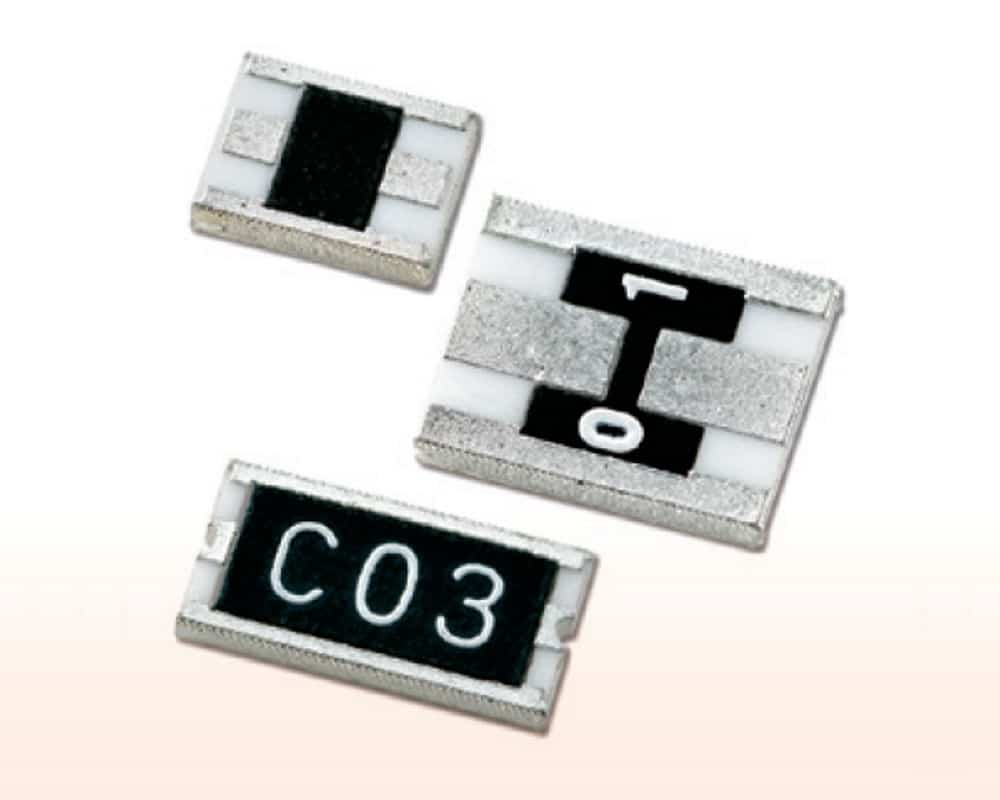

The PAT3060H series are precision thin film chip attenuators from Susumu offers designers low noise and good high-frequency characteristics which makes it possible to handle circuits with different frequencies with ease. The Susumu PAT3060H series has a wider frequency range of DC∼6GHzand and is available in a chip size of 2412. The distribution of the signal terminals in the middle and the ground terminals at the ends are designed for easy integration to coaxial connectors.

  • Surface-mount high precision chip attenuator
  • Attenuation values available are 1dB, 2dB, 3dB, 5dB, 6dB and 10dB
  • Attenuation tolerance of ±0.5dB
  • Impedance value of 50Ω
  • Operating frequency of DC∼6GHz
  • Rated power of 5W

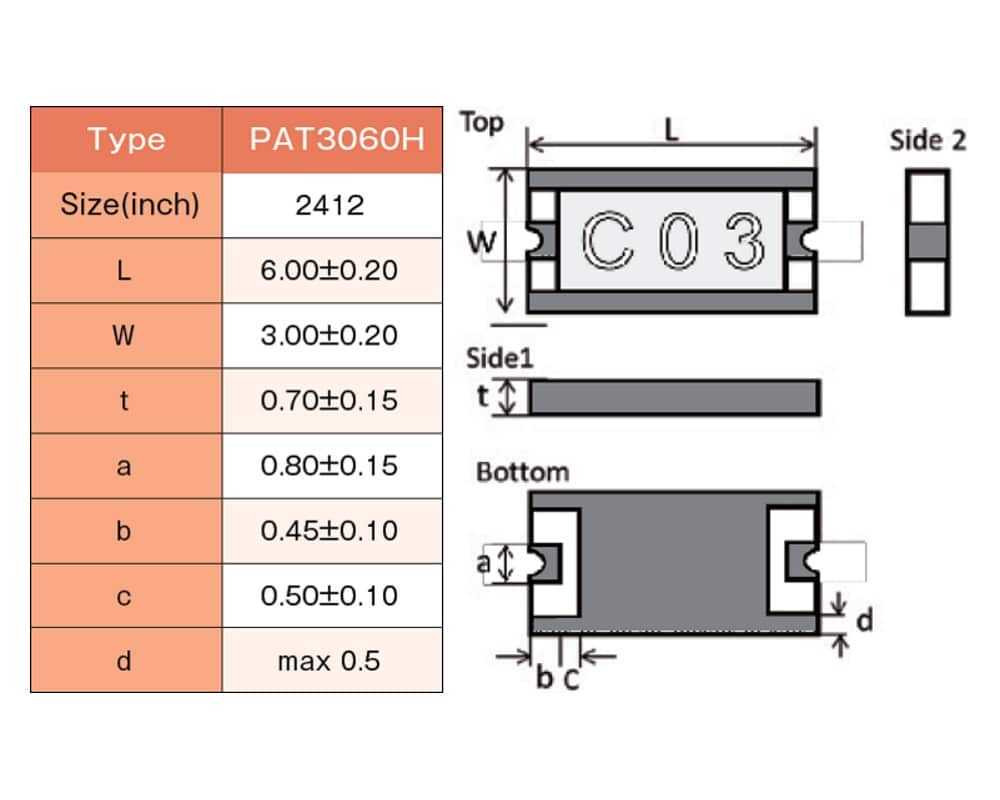

  • Chip size of 2412
  • Rated operating temperature +70°C
  • Temperature range is −55°C to +125°C

The Susumu PAT3060H series precision thin film chip attenuators are ideal for the following applications:

  • Attenuator for coaxial lines/circuit
  • Attenuator for measuring instrumentation

The below table gives the full specifications of the Susumu PAT series W type including the PAT3060H:

Susumu PAT3060H Specifications

Please see the below table which includes the attenuation tolerance for the PAT3042 and PAT4556

Table 1

* Only PAT4556

Specifications

Weight 0.00000 kg
Dimensions 6.00 × 3.00 × 0.70 mm
Series / Model

Power Rating

Additional Features

Surface-mount high precision chip attenuatorRated operating temperature of +70°COperating temperature range of −55°C to +125°C

Tolerance

Operating Frequency

Impedance

Attenuation

, , , , ,
