Susumu PAT0816 Series

  • Compliant
  • Susumu

Product Features

  • High precision chip attenuator
  • Surface mount design with an 0603 chip size
  • Attenuation of 0dB to 10dB (1dB steps)
  • Attenuation tolerance down to ±0.3dB
  • Impedance of 50Ω
  • Temperature range from −55°C to +125°C

Applications

  • Scientific Instrumentation
  • Test and Measurement

Description

The PAT0816 high precision chip attenuator is part of the PAT series of thin film attenuators designed for high precision applications from Susumu. The PAT0816 model has a 0603 chip size and is available in an attenuation range of 0dB to 10dB in 1dB steps. This series utilises a similar wrap-around terminal to that of regular chip resistors making them easy to mount. One chip attenuator covers a wide frequency range of up to 10Ghz DC. These attenuators have been developed to withstand operating temperatures between −55°C to +125°C.

  • High precision chip attenuator
  • Surface mount design with an 0603 chip size
  • Attenuation of 0dB to 10dB (1dB steps)
  • Attenuation tolerances of ±0.3dB, ±0.5dB or ±0.7dB
  • Impedance of 50Ω (C)
  • VSWR of <1.3(0 to 6GHz)or <1.5(6 to 10GHz)
  • Operating frequency of DC∼10GHz
  • Rated power of 64mW
  • Temperature range from −55°C to +125°C
  • Rated operating temperature +70°C

The Susumu PAT0816 high precision chip attenuator is ideal for the following applications:

  • Cell phone base stations
  • Wireless communication modules
  • Wide band measurement instrumentation


Susumu PAT0816 Series Specification Table

AttenuationAttenuation toleranceImpedanceVSWROperating frequencyRated powerPackaging quantity
0 - 3dB (1dB steps)±0.3dB50Ω (C)<1.3 (0 - 6Ghz)
<1.5 (6 - 10Ghz)
DC~10Ghz64mWB (100pcs/bag)
T1 (1,000 pcs/reel)
T5 (5,000 pcs/reel)
4 - 7dB (1dB steps)±0.5dB50Ω (C)<1.3 (0 - 6Ghz)
<1.5 (6 - 10Ghz)
DC~10Ghz64mWB (100pcs/bag)
T1 (1,000 pcs/reel)
T5 (5,000 pcs/reel)
8 - 10dB (1dB steps)±0.7dB50Ω (C)<1.3 (0 - 6Ghz)
<1.5 (6 - 10Ghz)
DC~10Ghz64mWB (100pcs/bag)
T1 (1,000 pcs/reel)
T5 (5,000 pcs/reel)

Susumu is a leading manufacturer of thin-film attenuators, covering a range of attenutations from 0dB to 20dB. Specialised in the production of High precision, High frequency and Thermovariable Attenuators available in various small chip sizes to compliment miniturisation of devices. Please visit www.susumu.co.jp/usa/ for more information.

Specifications

Weight 0.00000 kg

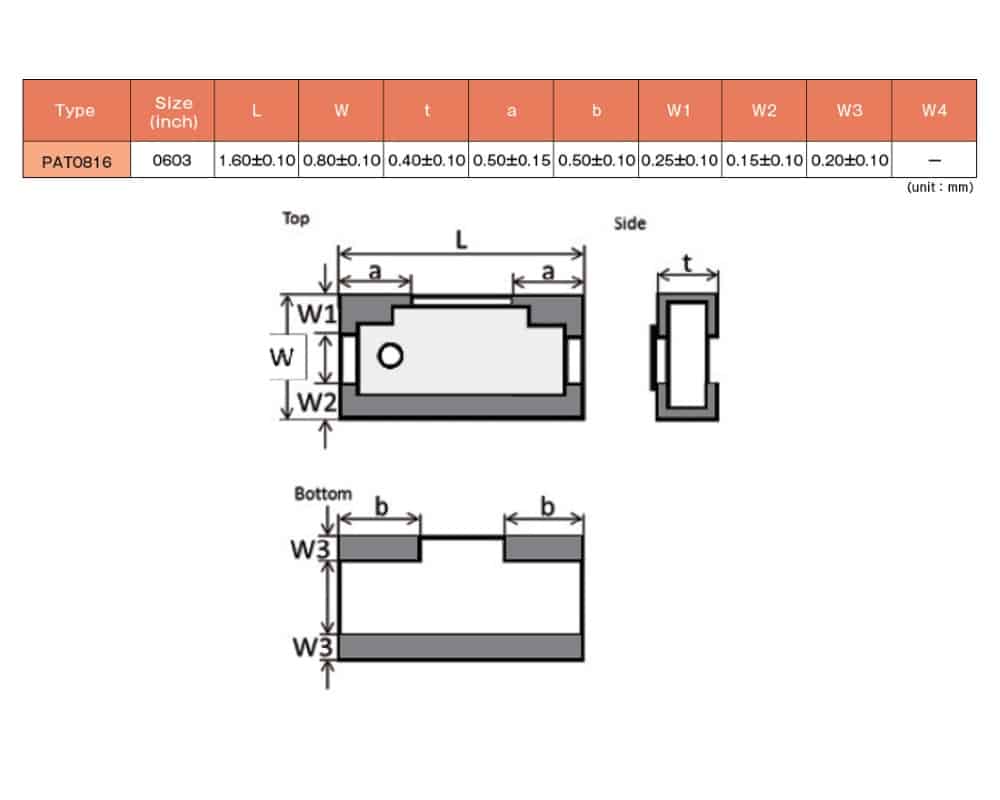

Dimensions 1.60 × 0.80 × 0.40 mm
Series / Model

Power Rating

Tolerance

, ,

Operating Frequency

Impedance

Attenuation

, , , , , , , , , ,

Susumu PAT0816 Series Resources

Product Datasheet

Supporting Manufacturer Information

Susumu PAT Series Ordering Info

The PAT attenuator series is available with various options. The information below gives an example of the part numbering system used for these attenuators and the options available.

Below is an example of the part number break down for the PAT attenuator series:

Susumu PAT Series Ordering Information
