SRT Microcéramique Non Magnetic NP0 Capacitor Series

  • SRT Microcéramique

Product Features

  • Non magnetic NP0 (Type 1) MLCC Capacitors
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 10.10-4 at 1Vrms and 1kHz (or 1MHz)
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Rhopoint Energy
  • Scientific Instrumentation
  • Test and Measurement

Description

  • Non-magnetic ceramic chip MLCC capacitors
  • Available in capacitance ratings between 0.47nF and 82nF
  • Available in standard chip sizes from 0402 to 3640
  • Dissipation factor under 10.10-4 at 1Vrms and 1kHz (or 1MHz)
  • Temperature Coefficient of ±30ppm
  • Selection of Voltage ratings: 16V, 25V, 50V, 100V, 500V, 1kV, 3kV or 5kV
  • Selection of tolerances: ±5%, ±10% and ±20%
  • Operating temperature between -55°C and +125°C



The Non-magnetic NP0 (Type 1) ceramic chip MLCC capacitor series from SRT Microcéramique offers a wide range of options to suit any demand, including capacitance between 0.47nF to 82nF across a range of chip sizes from 0402 to 3640, a selection of ±5%, ±10% or ±20% tolerance, voltage options (16V, 25V, 50V, 100V, 500V, 1kV, 3kV or 5kV) and a selection of termination options. As with all SRT-MC components, the non-magnetic NP0 capacitors are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver
  • Tin-plated CooperWhile this product series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

    Typical applications for the SRT-MC Non-magnetic NP0 series of ceramic capacitors include:

    • Magnetic resonance imaging
    • Medical test equipment
    • Laboratory analysis systems



    The below table gives the specifications overview for each capacitor model available within the Non-magnetic NP0 series:

    SRT Microcéramique Non Magnetic NP0 Capacitor series






Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Additional Features

Non magnetic NP0 (Type 1) MLCC CapacitorsHighest quality and reliability, suitable for safety-critical industriesDissipation factor under 10.10-4 at 1Vrms and 1kHz (or 1MHz)Insulation resistance of 2

Tolerance

, ,

Temperature Range (°C)

Package / Size

, , , , , , ,

Voltage Rating

, , , , , , ,

SRT Microceramique Capacitance Value note

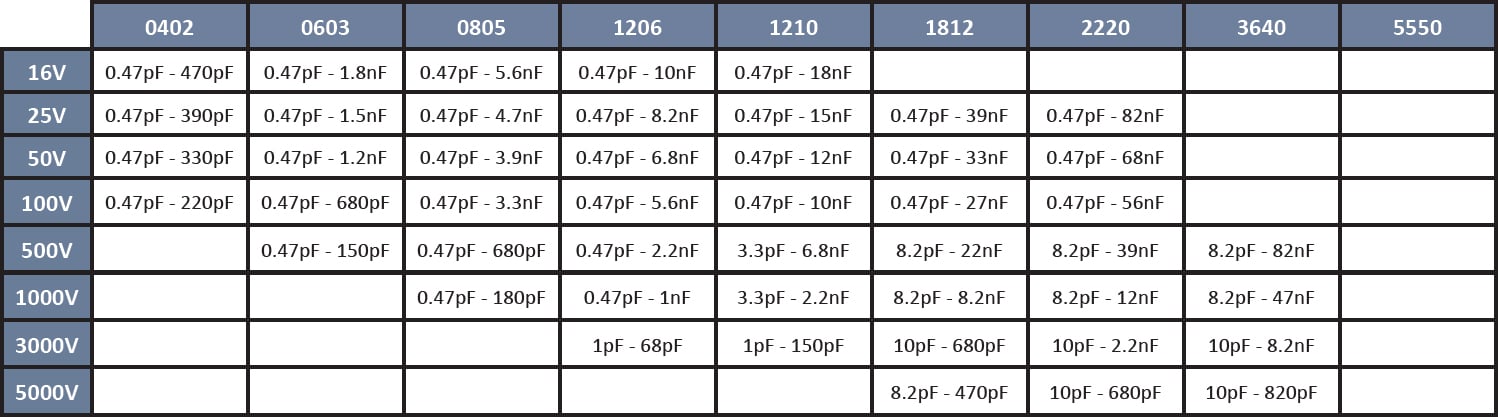

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microceramique Non Magnetic NP0 Capacitor Series Ordering Info

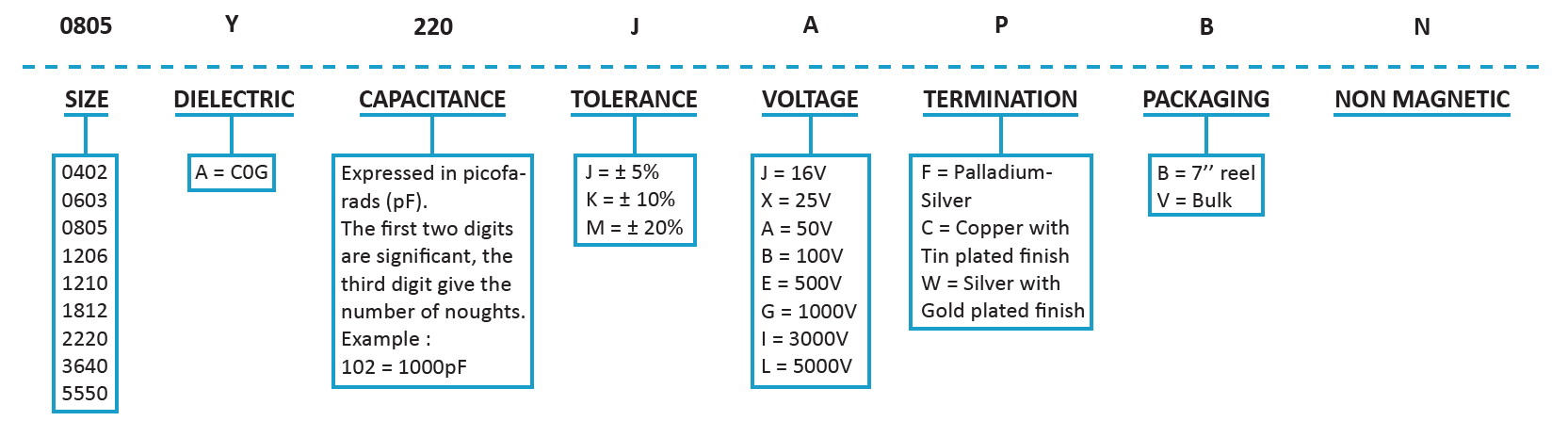

Below is an example of the part number breakdown for the SRT Microcéramique Non Magnetic NP0 Capacitor Series :

SRT Microcéramique Non Magnetic NP0 Capacitor Series

SRT Microcéramique Non Magnetic NP0 Capacitor Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
SRT Microceramique Non Magnetic NP0 Capacitor series datasheet
SRT Microcéramique's Microflex – Innovative flexible termination option for chip capacitors
