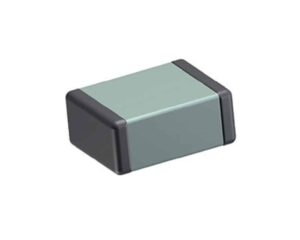

SRT Microcéramique Chip Capacitors with Negative TC

  • Exempt
  • SRT Microcéramique

Product Features

  • NP0 (C0G) Chip ceramic capacitor with negative TC
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 10.10-4 at 1Vrms and 1kH (or 1MHz)
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement

Description

The NP0 (C0G) ceramic chip MLCC capacitor series with negative TC from SRT Microcéramique offers a wide range of options to suit any demand, including a selection of negative temperature coefficients (N150±60ppm, N220±60ppm, N330±60ppm, N470±60ppm, N750±120ppm, N1200±120ppm), as well as a capacitance between 0.47pF to 8.2nF across a range of chip sizes from 0603 to 1210, a wide selection of tolerances (±0.1pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10% and ±20%), voltages (50V or 100V) and a range of terminations. As with all SRT-MC components, the NP0 capacitors are popular in safety-critical industries thanks to their excellent quality and reliability, as well as zero ageing rate up to 10000 hours, zero voltage coefficient of capacitance and change of capacitance with frequency, and very low-temperature coefficient of capacitance. Their operating temperature is between -55°C and +125°C.

  • Ceramic chip MLCC capacitors with negative temperature coefficient (TC)
  • Temperature coefficients of N150, N220, N330 and N470 at ±60ppm, N750 and N1200 at ±120ppm
  • Available in capacitance ratings between 0.47pF and 8.2nF
  • Available in standard chip sizes from 0603 to 1210
  • Dissipation factor under 10.10-4 at 1Vrms and 1kH (or 1MHz)
  • Selection of Voltage ratings: 50V or 100V
  • Selection of tolerances: ±0.1pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10% and ±20%
  • Temperature range between -55°C and +125°C

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver
  • Tin-plated Nickel
  • Tin-plated Copper
  • Flexible Tin-plated polymer (Microflex), improving the resistance to brittle fracture if the board is subject to flexion or vibration

While this capacitor series offers a large number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

The dielectric strength test for the NP0 capacitors with negative TC is performed per method 103 or EIA 198-2-E with 250% of the rated voltage applied.

Typical applications for the SRT-MC NP0 series of ceramic capacitors with negative TC include:

  • Temperature compensation applications
  • Oscillators



The below table gives the specifications overview for each capacitor model available within the NP0 series with the negative TC:

SRT Microcéramique NP0 series (Negative TC)



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

,

Additional Features

NP0 (C0G) Chip ceramic capacitor with negative TCHighest quality and reliability, suitable for safety-critical industriesDissipation factor under 10.10-4 at 1Vrms and 1kH (or 1MHz)Insulation resistan

Tolerance

, , , , , , ,

Temperature Range (°C)

Package / Size

, , ,

Voltage Rating

,

SRT Microceramique Capacitance Value note

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microceramique Neg TC Capacitors Ordering Info

Below is an example of the part number breakdown for the SRT Microcéramique's series of Capacitors with Negative TC:

SRT Microcéramique Capacitors with Negative TC ordering info

SRT Microcéramique Negative TC Capacitor Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
SRT Microceramique Capacitors with Negative TC series datasheet
SRT Microcéramique's Microflex – Innovative flexible termination option for chip capacitors

SRT Microcéramique Chip Capacitors with Negative TC
