SRT Microcéramique Low Voltage BX Capacitor Series (50-100V)

  • Exempt
  • SRT Microcéramique

Product Features

  • Stable ceramic capacitor
  • Better voltage behaviour compared to X7R dielectric
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025 at 1kHz for C over 1nF, and up to 0.025 at 1MHz for C up to 1nF
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement

Description

The BX low voltage, stable ceramic chip MLCC capacitor series from SRT Microcéramique offers improved voltage behaviour compared to the X7R series. These capacitors feature a wide range of options to suit any demand, including capacitance between 100pF to 1µF across a range of chip sizes from 0805 to 2225, a wide selection of tolerances (±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10%, ±20% and -20% to +80%), voltages (50V or 100V) and a range of terminations. As with all SRT-MC components, the BX capacitors are popular in safety-critical industries thanks to their excellent quality and reliability and are manufactured according to MIL Specifications. Their operating temperature is between -55°C and +125°C.

  • Low voltage ceramic chip MLCC capacitors
  • Available in capacitance ratings between 100pF and 1µF
  • Available in standard chip sizes from 0805 to 2225
  • Dissipation factor under 0.025 at 1kHz for C ≥ 1nF and under 0.025 at 1MHz for C ≤ 1nF
  • Selection of Voltage ratings: 50V or 100V
  • Selection of tolerances: ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10%, ±20% and -20% to +80%
  • Temperature range between -55°C and +125°C

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver
  • Tin-plated Nickel
  • Tin-plated Copper
  • Flexible Tin-plated polymer (Microflex), improving the resistance to brittle fracture if the board is subject to flexion or vibration

While the BX series offers a large number of options, customisation is possible on all SRT Microcéramique components – if none of the given options are suitable for your application, please contact us to discuss the custom solutions available.

Typical applications for the SRT-MC BX series of low voltage ceramic capacitors include:

  • Passing
  • Coupling
  • Filtering
  • Blocking

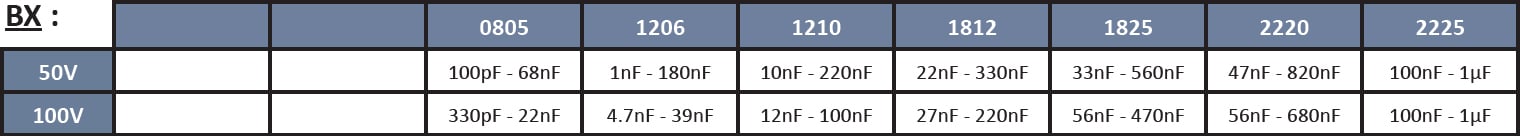

The below table gives the specifications overview for each low voltage capacitor model available within the BX-series (50V-100V):

SRT Microcéramique Low Voltage X7R series



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

,

Additional Features

Stable ceramic capacitorBetter voltage behaviour compared to X7R dielectricHighest quality and reliability, suitable for safety-critical industriesDissipation factor up to 0.025 at 1kHz for C over 1n

Tolerance

, , , , , , ,

Temperature Range (°C)

Package / Size

, , , , , ,

Voltage Rating

,

SRT Microceramique Capacitance Value note

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microceramique X7R & BX Low Voltage Capacitor Series Ordering Info

Below is an example of the part number breakdown for the SRT Microcéramique X7R & BX Low Voltage Capacitor Series :

SRT Microcéramique X7R & BX Low Voltage Capacitor Series

SRT Microcéramique X7R & BX Low Voltage Capacitor Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
SRT Microceramique Low Voltage BX and X7R Capacitor series datasheet
SRT Microcéramique's Microflex – Innovative flexible termination option for chip capacitors
