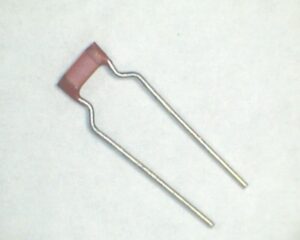

SRT Microcéramique Radial Dipped NP0 Capacitors (200V - 500V)

  • Exempt
  • SRT Microcéramique

Product Features

  • Radial dipped NP0 capacitor series
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement

Description

The NP0 (Type 1) dipped radial condenser MLCC capacitor series is designed especially for severe environment applications, offering excellent shock and vibration resistance. The series features capacitance values between 1pF and 12nF across four package sizes (SRMC32, SRMC41, SRMC43 and SRMC44), option of voltage rating 200V or 500V, and tolerances ±0.25pF, ±0.5pF, ±1%, ±2%, ±5% or ±10%. The operating temperature of NP0 radial capacitors is between -55°C and +125°C.

  • Dipped Radial MLCC capacitors, 200-500V
  • Five sizes available – SRMC32, SRMC41, SRMC43 and SRMC44
  • Available in capacitance ratings between 1pF and 12nF
  • Dissipation factor under 0.025
  • Temperature Coefficient of ±15% with 0Vdc applied
  • Selection of tolerances: ±0.25pF, ±0.5pF, ±1%, ±2%, ±5% or ±10%
  • Temperature range between -55°C and +125°C

While this product series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.



The below table gives the specifications overview for 200-500V capacitor models available within the NP0 radial capacitor series:

SRT Microcéramique High Frequency Capacitor series



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Additional Features

Radial dipped NP0 capacitor series  Highest quality and reliability, suitable for safety-critical industriesDissipation factor up to 0.025 Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-F

Tolerance

, , , , ,

Temperature Range (°C)

Package / Size

Voltage Rating

,

SRT Microceramique Capacitance Value note

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microcéramique Radial Dipped NP0 Capacitor (50V – 100V) Series Ordering Info

Below is an example of the part number breakdown for the SRT Microcéramique Radial Dipped NP0 Capacitor (50V – 100V) Series:

SRT Microcéramique Radial Dipped NP0 Capacitor (50V - 100V) Series

SRT Microcéramique Radial Dipped NP0 Capacitor (200V – 500V) Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
SRT Microcéramique Radial Dipped NP0 Capacitor (200V – 500V) Series Datasheet
