SRT Microcéramique Radial Dipped NP0 Capacitors (50V - 100V)

SRT Microcéramique Radial Dipped NP0 Capacitors (200V - 500V)
  • SRT Microcéramique

Product Features

  • Radial dipped NP0 capacitor series
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

Description

The NP0 (Type 1) dipped radial condenser MLCC capacitor series is designed especially for severe environment applications, offering excellent shock and vibration resistance. The series features capacitance values between 1pF and 150nF across five package sizes (SRMC32, SRMC41, SRMC43, SRMC44 and SRMC61), option of voltage rating 50V or 100V, and tolerances ±0.25pF, ±0.5pF, ±1%, ±2%, ±5% or ±10%. The operating temperature of NP0 radial capacitors is between -55°C and +125°C.

  • Dipped radial MLCC capacitors, 50-100V
  • Five sizes available – SRMC32, SRMC41, SRMC43, SRMC44 and SRMC61
  • Available in capacitance ratings between 1pF and 150nF
  • Dissipation factor under 0.025
  • Temperature Coefficient of ±15% with 0Vdc applied
  • Selection of tolerances: ±0.25pF, ±0.5pF, ±1%, ±2%, ±5% or ±10%
  • Temperature range between -55°C and +125°C

While this capacitor series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

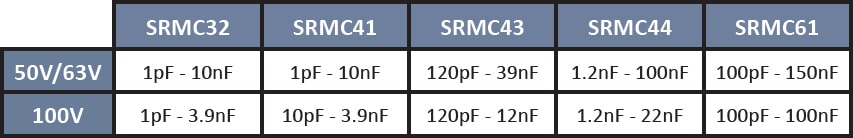

The below table gives the specifications overview for 50-100V capacitor models available within the NP0 radial capacitor series:

SRT Microcéramique Radial Dipped NP0 Capacitor series (50V - 100V)



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Tolerance

, , , , ,

Temperature Range (°C)

Package / Size

Voltage Rating

, ,

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microcéramique Radial Dipped NP0 Capacitor (50V – 100V) Series Ordering Info

Below is an example of the part number breakdown for the SRT Microcéramique Radial Dipped NP0 Capacitor (50V – 100V) Series:

SRT Microcéramique Radial Dipped NP0 Capacitor (50V - 100V) Series

SRT Microcéramique Radial Dipped NP0 Capacitor (50V – 100V) Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
SRT Microcéramique Radial Dipped NP0 Capacitor (50V – 100V) Series Datasheet
