  • SRT Microcéramique

Product Features

  • Radial moulded capacitor series for military applications
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025 at 1Vrms and 1kHz
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Climatic Category 55/125/56

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

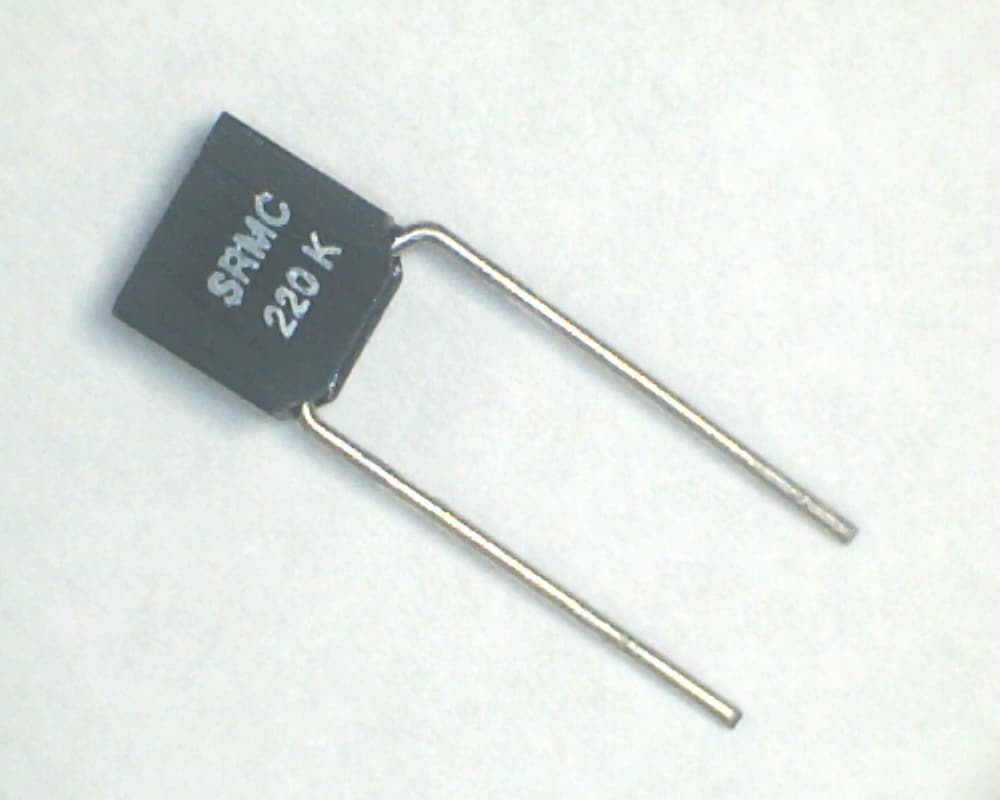

Description

The X7R (Type 2) high voltage moulded radial MLCC capacitor series is designed especially for severe environment, high voltage military applications, offering excellent shock and vibration resistance. The series features capacitance values between 150pF and 270nF across two package sizes (SR50 or SR60), option of high voltage ratings 500V, 1kV or 2kV, and tolerances ±10% or ±20. The operating temperature of these capacitors is between -55°C and +125°C.

  • High voltage moulded radial MLCC capacitors, 500V – 2kV
  • Two package sizes available – SRMC50 or SRM60
  • Available in capacitance ratings between 150pF and 270nF
  • Dissipation factor under 0.025 at 1Vrms and 1KHz
  • Capacitance-Temperature characteristics of ±15% without voltage
  • Selection of tolerances: ±10% or ±20%
  • Temperature range between -55°C and +125°C

While this capacitor series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options is suitable for your application, please contact us to discuss the custom solutions available.

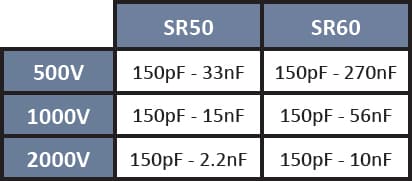

The below table gives the specifications overview for high voltage 500V – 2kV capacitor models available within the moulded radial capacitor series:

SRT Microcéramique Radial Moulded Capacitor series (500V - 2kV)



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Additional Features

Radial moulded capacitor series for military applicationsHighest quality and reliability, suitable for safety-critical industriesDissipation factor up to 0.025 at 1Vrms and 1kHz Insulation resistance

Tolerance

,

Temperature Range (°C)

Package / Size

Voltage Rating

, ,

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Microcéramique Radial Moulded Capacitor (500V – 2kV) Series Ordering Info

Below is an example of the part number breakdown for the SRT Microcéramique Radial Moulded Capacitor (500V – 2kV) Series:

SRT Microcéramique Radial Moulded Capacitor (500V - 2kV) Series

SRT Microcéramique Radial Moulded Capacitor (500V – 2kV) Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
SRT Microcéramique Radial Moulded Capacitor (500V – 2kV) Series Datasheet
