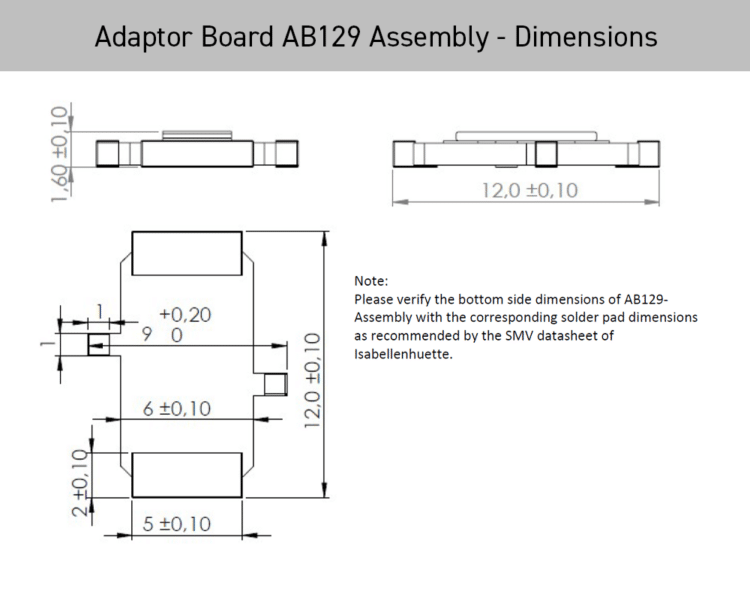

dtpm-adaptor-board-ab129-assembly-dimensions

Adaptor Board AB129 Assembly

DTPM Adaptor Board AB129 Assembly

Adaptor Board AB129 with SMD resistors
Resistance ranges from 0.001Ω to 1Ω *
Tolerances of 0.5% and 1%
Power Rating of 4W

Datasheet

Resistance Value

Tolerance

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Any questions, contact us?

Why buy from Rhopoint?

Frequently Asked Questions

Application Notes

Assembly consisting of Adaptor Board AB129 and suitable standard SMD resistor components for a pincompatible replacement of SMV-series of Isabellenhuette (case size 4723)
Resistance ranges from 0.001Ω to 1Ω *
Tolerances of 0.5% and 1%
Power Rating of 4W
Mounting: Reflow-, IR- and vapour phase soldering
Packaging: tape/reel accordingly to EN 60286-3 (1,000 pcs per reel)
RoHS 2011/65/EU compliant
Excellent long-term stability (dR/R < ±0.7% in 2000hrs at rated power and temperature)
On request: lot inspection per MIL-PRF-55342 (scope to be determined as required)

^{* Ranges are dependant on the model selected, a full list of available resistances can be found in the table below.}

Specifications

Dimensions	1.6 x 6 x 12mm
Assembly Type	AB129
Resistance Value	0.001Ω, 0.002Ω, 0.003Ω, 0.005Ω, 0.0068Ω, 0.0075Ω, 0.01Ω, 0.012Ω, 0.015Ω, 0.018Ω, 0.02Ω, 0.022Ω, 0.025Ω, 0.027Ω, 0.03Ω, 0.033Ω, 0.039Ω, 0.047Ω, 0.05Ω, 0.056Ω, 0.068Ω, 0.075Ω, 0.082Ω, 0.1Ω, 0.12Ω, 0.15Ω, 0.18Ω, 0.2Ω, 0.22Ω, 0.24Ω, 0.27Ω, 0.3Ω, 0.33Ω, 0.39Ω, 0.47Ω, 0.5Ω, 0.68Ω, 0.82Ω, 1Ω
Tolerance	±0.5%, ±1%
Power Rating	4W

Due to the technical complexity nature of these components, complete specifications, performance data, dimensional information and configuration options are provided within the product datasheet.

Actual Energy Failure ()

Resistance Value (XRXX)

Resistance value, in ohms, is expressed by a series of 4 characters, 3 of which represent significant digits. R (ohms) designates the location of the decimal point.

Tolerance (X)

D: ±0.5%
F: ±1%

Available resistor values

E12 series [Ω]	E24 series [Ω]	0.5% (D)	1.0% (F)
0.001	0.001	✓	✓
	0.002	✓	✓
	0.003	✓	✓
	0.005		✓
0.0068	0.0068		✓
	0.0075		✓
0.01	0.01	✓	✓
0.012	0.012	✓	✓
0.015	0.015	✓	✓
0.018	0.018		✓
	0.02	✓	✓
0.022	0.022	✓	✓
	0.025	✓	✓
0.027	0.027	✓	✓
	0.03	✓	✓
	0.05	✓	✓
0.033	0.033	✓	✓
0.039	0.039	✓	✓
0.047	0.047	✓	✓
0.056	0.056	✓	✓
0.068	0.068	✓	✓
	0.075		(✓)
0.082	0.082	✓	✓
0.10	0.10	✓	✓
0.12	0.12	✓	✓
0.15	0.15	✓	✓
0.18	0.18	✓	✓
	0.20	✓	✓
0.22	0.22	✓	✓
	0.24	✓	✓
0.27	0.27		✓
	0.30	✓	✓
0.33	0.33	✓	✓
0.39	0.39		(✓)
0.47	0.47	✓	✓
	0.5	✓	✓
0.68	0.68	✓	✓
0.82	0.82		(✓)
1.00	1.00	✓	✓

_{* resistance values marked (✓) are deviating in terms of height dimension and TCR. Please get in touch with the manufacturer for further details.}

Product Variations

SKU	Resistance Value	Tolerance
AB129-2512R001D	0.001Ω	±0.5%
AB129-2512R002D	0.002Ω	±0.5%
AB129-2512R003D	0.003Ω	±0.5%
AB129-2512R01D	0.01Ω	±0.5%
AB129-2512R012D	0.012Ω	±0.5%
AB129-2512R015D	0.015Ω	±0.5%
AB129-2512R02D	0.02Ω	±0.5%
AB129-2512R022D	0.022Ω	±0.5%
AB129-2512R025D	0.025Ω	±0.5%
AB129-2512R027D	0.027Ω	±0.5%
AB129-2512R03D	0.03Ω	±0.5%
AB129-2512R033D	0.033Ω	±0.5%
AB129-2512R039D	0.039Ω	±0.5%
AB129-2512R047D	0.047Ω	±0.5%
AB129-2512R05D	0.05Ω	±0.5%
AB129-2512R056D	0.056Ω	±0.5%
AB129-2512R068D	0.068Ω	±0.5%
AB129-2512R082D	0.082Ω	±0.5%
AB129-2512R1D	0.1Ω	±0.5%
AB129-2512R12D	0.12Ω	±0.5%
AB129-2512R15D	0.15Ω	±0.5%
AB129-2512R18D	0.18Ω	±0.5%
AB129-2512R2D	0.2Ω	±0.5%
AB129-2512R22D	0.22Ω	±0.5%
AB129-2512R24D	0.24Ω	±0.5%
AB129-2512R3D	0.3Ω	±0.5%
AB129-2512R33D	0.33Ω	±0.5%
AB129-2512R47D	0.47Ω	±0.5%
AB129-2512R5D	0.5Ω	±0.5%
AB129-2512R68D	0.68Ω	±0.5%
AB129-25121RD	1Ω	±0.5%
AB129-2512R001F	0.001Ω	±1%
AB129-2512R002F	0.002Ω	±1%
AB129-2512R003F	0.003Ω	±1%
AB129-2512R005F	0.005Ω	±1%
AB129-2512R0068F	0.0068Ω	±1%
AB129-2512R0075F	0.0075Ω	±1%
AB129-2512R01F	0.01Ω	±1%
AB129-2512R012F	0.012Ω	±1%
AB129-2512R015F	0.015Ω	±1%
AB129-2512R018F	0.018Ω	±1%
AB129-2512R02F	0.02Ω	±1%
AB129-2512R022F	0.022Ω	±1%
AB129-2512R025F	0.025Ω	±1%
AB129-2512R027F	0.027Ω	±1%
AB129-2512R03F	0.03Ω	±1%
AB129-2512R033F	0.033Ω	±1%
AB129-2512R039F	0.039Ω	±1%
AB129-2512R047F	0.047Ω	±1%
AB129-2512R05F	0.05Ω	±1%
AB129-2512R056F	0.056Ω	±1%
AB129-2512R068F	0.068Ω	±1%
AB129-2512R075F	0.075Ω	±1%
AB129-2512R082F	0.082Ω	±1%
AB129-2512R1F	0.1Ω	±1%
AB129-2512R12F	0.12Ω	±1%
AB129-2512R15F	0.15Ω	±1%
AB129-2512R18F	0.18Ω	±1%
AB129-2512R2F	0.2Ω	±1%
AB129-2512R22F	0.22Ω	±1%
AB129-2512R24F	0.24Ω	±1%
AB129-2512R27F	0.27Ω	±1%
AB129-2512R3F	0.3Ω	±1%
AB129-2512R33F	0.33Ω	±1%
AB129-2512R39F	0.39Ω	±1%
AB129-2512R47F	0.47Ω	±1%
AB129-2512R5F	0.5Ω	±1%
AB129-2512R68F	0.68Ω	±1%
AB129-2512R82F	0.82Ω	±1%
AB129-25121RF	1Ω	±1%

Resources

Product Datasheet

DTPM Adaptor Board AB129 Assembly Datasheet
