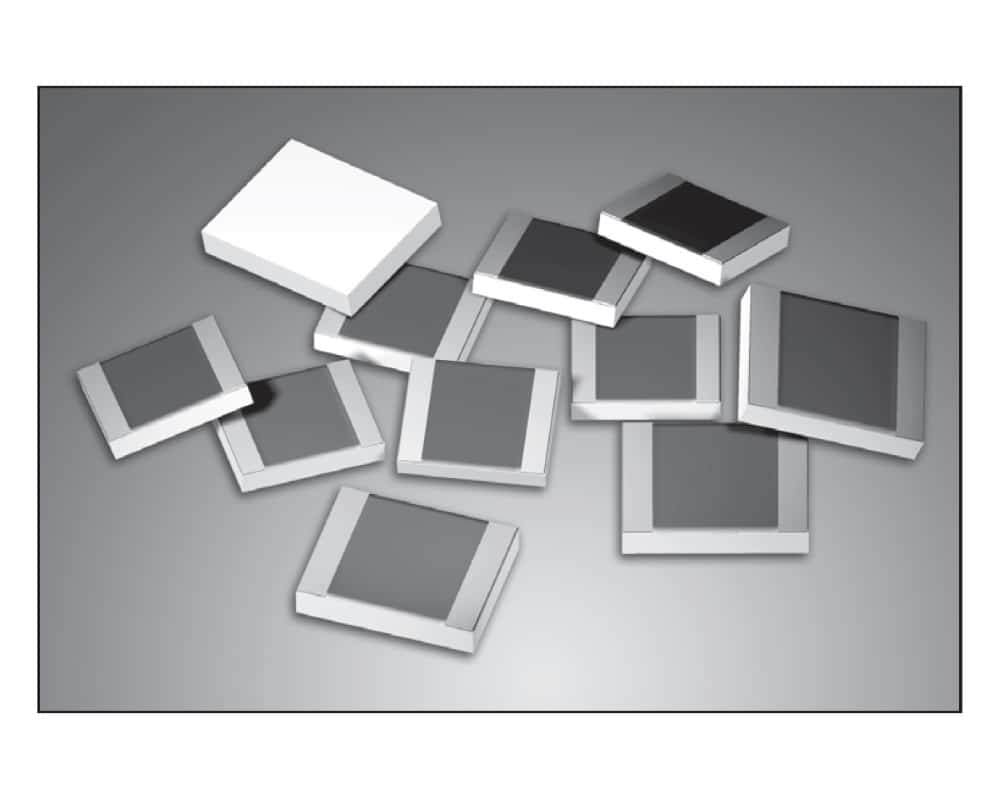

Caddock CC2015FC Series

  • Compliant
  • Caddock

Product Features

  • Current sensing resistor
  • Resistance range from 0.02Ω to 10Ω
  • Tolerance from ±1.0% to ±5.0%
  • TCR of -20 to +80, 0 to +200 or +300 ppm/°C
  • Power rating of 1W at 70°C
  • Temperature range from -55°C to +150°C

Applications

  • Power Control
  • Scientific Instrumentation
  • Test and Measurement

Description

The CC2015FC low resistance precision flip-chip surface-mount resistor series from Caddock offers resistance values from as low as 0.02Ω up to 10Ω making it ideal for current sensing applications. The CC2015FC series features low inductance of 5nH (typical) which provides excellent high frequency and pulse response, with high pulse handling and overload capabilities. For general applications, the CC2015FC series has a power rating of 1W (at +70°C).

  • Low resistance precision flip-chip resistor
  • Flip-chip version for surface-mount applications (FC)
  • 2015 chip size
  • Resistance values from 0.02Ω to 10Ω
  • Bare ceramic back surface
  • High pulse handling and overload capabilities
  • Low inductance of 5nH (typical) provides excellent high frequency and pulse response
  • Tolerances from as low as ±1.0% up to ±5.0% (resistance value dependent)
  • TCR from as low as -20 to +80 ppm/°C (resistance values of 0.5Ω and above)
  • Operating temperature range from -55°C up to +150°C



The CC2015FC series from Caddock is the best choice for switching power supplies, motor speed controls and high current sensing applications.

Thermal resistance is provided for the CC2015FC series to optimise high power designs when utilising higher thermal conductivity circuit board substrates such as IMS or Alumina. Please see datasheet for further details.

The recommended solders for flip-chip solder attachment are Sn (62) / Pb (36) / Ag (2), Sn (96.5) / Ag (3.5), or standard Sn / Ag / Cu solder alloys.

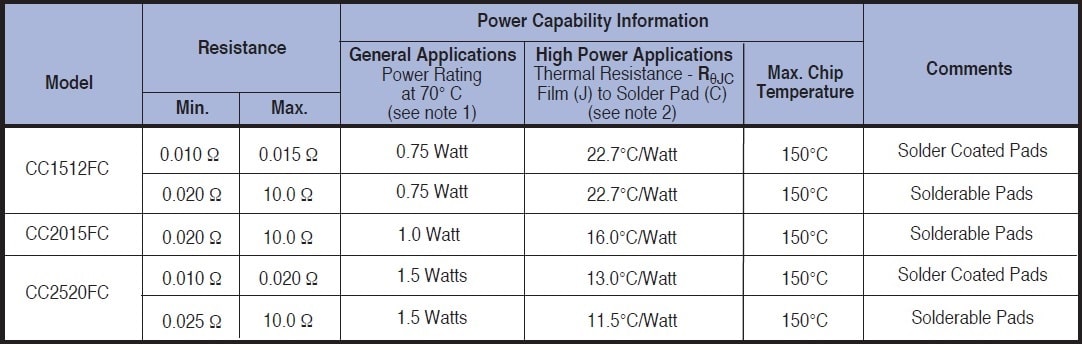

The below table gives the available specifications for the complete CC FC series including the CC2015FC:

Caddock CC FC Specifications
Please see datasheet for notes relating to the power capabilities.



Specifications

Weight 0.00000 kg

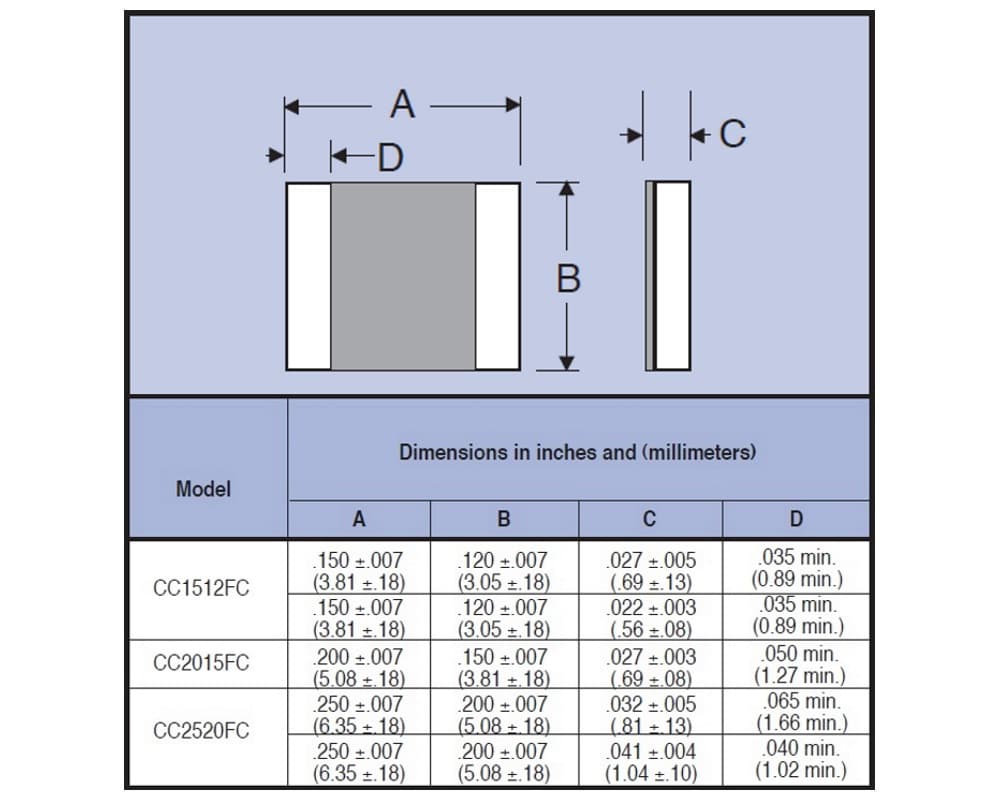

Dimensions 5.08 × 3.81 × 0.69 mm
Product Type

Minimum Resistance

Maximum Resistance

Tolerance

, ,

Temperature Coefficient

, ,

Power Rating

Temperature Range (°C)

Package / Size

, ,

RoHS Compliant Product – Caddock

This product is available fully compliant to the RoHS EU directive 2011/65/EU and 2015/863/EU

Caddock CC Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Caddock CC low resistance precision chip resistor series datasheet
Designing with Caddock TO-style heat sink mountable power film resistors application note (AEN-0101)
Understanding the power rating of Caddock MP9100 resistors application note (AEN-0102)
Application of the type CHR high resistance precision chip resistor products application note (AEN-0103)
Terminal finish and soldering process information for Caddock resistor products application note (AEN-0104)
Caddock resistor products and the RoHS directive application note (AEN-0105)
Customer applications that are outside the scope of the RoHS directive application note (AEN-0106)
Caddock REACH compliance statement application note (AEN-0107)
Recommended solder reflow profile for Caddock surface-mount resistors application note (AEN-0108)
