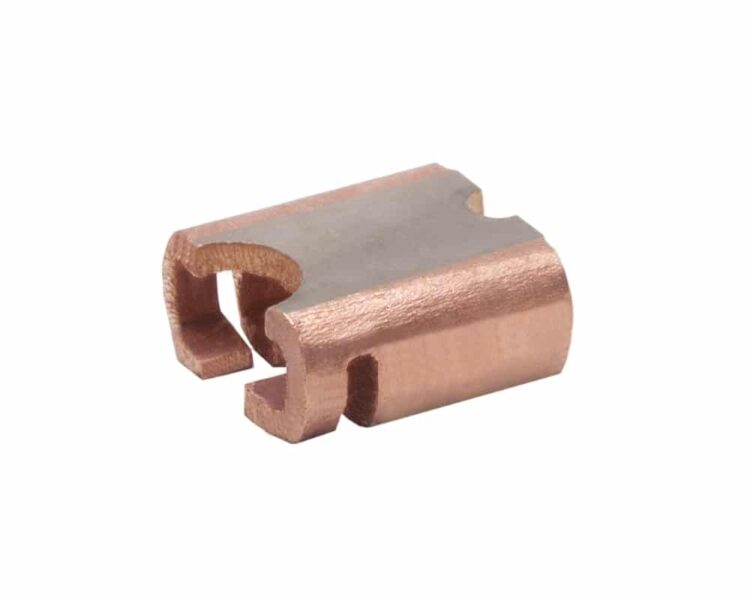

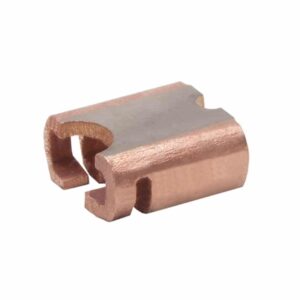

Current Sensing Precision Resistor

Isabellenhütte BVN Series

  • Current sensing resistor
  • 4-terminal surface-mount 1216 package
  • Resistance range from 0.0003Ω to 0.003Ω
  • Tolerance ±1.0% or ±5.0%
  • TCR value <50 ppm/°C
  • Power rating 10W (at +70°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Compliant

Specifications

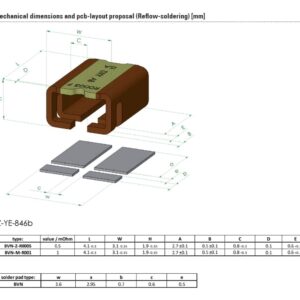

Dimensions 1.9 x 3.1 x 4.1mm
Product Type

Series / Model

Mounting / Size

,

Material Type

, ,

Resistance Value

-

Minimum Resistance

300µΩ
Maximum Resistance

0.003Ω
Tolerance

,

Temperature Coefficient

Current Rating

Power Rating

Temperature Range

-65 to +170°C
Download Datasheet

Current Sensing Precision Resistor

Isabellenhütte BVN Series

  • Current sensing resistor
  • 4-terminal surface-mount 1216 package
  • Resistance range from 0.0003Ω to 0.003Ω
  • Tolerance ±1.0% or ±5.0%
  • TCR value <50 ppm/°C
  • Power rating 10W (at +70°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Compliant
Download Datasheet

Request a Quote

Sample Request
Email Datasheet

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related Current Sensing & Low Resistance Resistors items

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related Current Sensing & Low Resistance Resistors Components

Isabellenhütte BAN-AL Series

Isabellenhütte BAN-AL Busbar Shunt
  • ISA-WELD® precision resistor, a busbar shunt with weldable aluminium terminals
  • Resistance value 25µΩ, manufactured to ±5%
  • Continuous current load up to 1095A at 25µΩ
  • Permanent power up to 30W at 25µΩ
  • Tensile strength above 50MPa
  • Applicable temperature range -40°C to +170°C
  • AEC-Q200 qualified, RoHS
Isabellenhütte BAN-AL busbar shunt, two silver aluminium terminals either side of two copper sections with the resistance alloy strip between them and a triangular hole in each copper section
View Product
Download Datasheet

Isabellenhütte FMH-K-R000

Isabellenhütte FMH-K-R000 Zero Ohm Jumper
  • ISA-PLAN® high power jumper, a zero ohm resistor in full copper with tinned terminals
  • Standard 0603 pad size
  • Constant current up to 26A
  • Resistance value below 0.2mΩ, inductance below 1nH
  • Power rating 0.135W at a terminal temperature of 125°C
  • Applicable temperature range −65°C to +170°C
  • AEC-Q200 qualified, RoHS
  • C-samples on request, start of production February 2027
Isabellenhütte FMH-K-R000 zero ohm jumper, a silver chip body with a green top layer and an arched underside between its two terminals
View Product
Download Datasheet

Isabellenhütte BAN Series

Isabellenhütte BAN Series Precision Shunt
  • ISA-WELD® precision resistor, a shunt with tinned terminals
  • Resistance value of 25µΩ, manufactured to 5% tolerance
  • Continuous current load up to 1200A at 25µΩ
  • Permanent power up to 36W at 25µΩ
  • Temperature coefficient from 0±20ppm/K, depending on version
  • Applicable temperature range from -40°C to +170°C
  • AEC-Q200 qualified
Isabellenhütte BAN ISA-WELD precision shunt, two copper terminals with a resistance alloy strip welded between them and one mounting hole per terminal
View Product
Download Datasheet

Resi HRES6918BL025MST0

High-Precision Shunt Based Current Sensing Module
High-precision shunt current sensing module with 25µΩ resistance, 600A rated current and 15mV output for BMS, ESS, EV and eVTOL applications.
View Product
Download Datasheet

Resi SRES6918BL100VST0

High-Precision Shunt Based Current Sensing Module
High-precision shunt current sensing module with 100µΩ resistance, 400A current rating and ±0.1% accuracy for EV, BMS and energy storage systems.
View Product
Download Datasheet

Isabellenhütte 25003/VMI (0805)

DLA | Precision Current Sense Resistor
  • Current sensing precision resistor
  • Constant current up to 7A (10mOhm)
  • Resistance range from 0.01Ω to 0.05Ω
  • Tolerance of ±1%
  • Two-terminal configuration
  • Power rating up to 0.5W (at +70°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

The BVN current sensing precision resistor series from Isabellenhütte offers 4-terminal surface-mount connection technology for current sensing applications in a space-saving design. Developed for high current automotive applications with a power rating up to 10W, resistance values available are 0.0003Ω, 0.0004Ω, 0.0005Ω, 0.001Ω, 0.002Ω and 0.003Ω. The BVN series from Isabellenhütte offers excellent long term stability, manufactured from solid metal alloys and are ideal for mounting on DBC or ceramic substrate.

  • 4-terminal Current sensing resistor
  • Surface-mount 1216 chip size
  • Continuous current load up to 100A (0.0005Ω)
  • Resistance values of 0.0003Ω, 0.0004Ω, 0.0005Ω, 0.00075Ω, 0.001Ω, 0.002Ω and 0.003Ω
  • TCR value <50 ppm/°C (between +20°C and +60°C)
  • Temperature range from -65°C to +170°C
  • Tolerance ±1.0% and ±5.0% tolerance
  • Excellent long term stability
  • Power rating 10W (at +70°C)
  • Maximum solder temperature up to 350°C for 30 sec
  • AEC-Q200 qualified



Typical applications for the BVN series include:

  • Current sensor for power hybrid applications
  • High current applications for the automotive market
  • Frequency converters and power modules

Isabellenhütte BVN Series Specification Table

Product Ordering CodeResistance Value*Tolerance*TCRPower rating (P70°C)Internal heat resistanceMaterial Type
BVN-Z-R00030.3mΩ±1% / ±5%<±100 ppm/°C10W6°C/W (Rthi)ZERANIN®30
BVN-Z-R00040.4mΩ±1% / ±5%<±75 ppm/°C10W6.5°C/W (Rthi)ZERANIN®30
BVN-Z-R00050.5mΩ±1% / ±5%<±50 ppm/°C9W8°C/W (Rthi)ZERANIN®30
BVN-M-L7500.75mΩ±1% / ±5%<±50 ppm/°C8W11°C/W (Rthi)MANGANIN®
BVN-M-R0011mΩ±1% / ±5%<±50 ppm/°C7W13°C/W (Rthi)MANGANIN®
BVN-M-R0011mΩ±1% / ±5%<±50 ppm/°C7W13°C/W (Rthi)MANGANIN®
BVN-V-R0022mΩ±1% / ±5%<±50 ppm/°C5W20°C/W (Rthi)NOVENTIN®
BVN-V-R0033mΩ±1% / ±5%<±50 ppm/°C3W35°C/W (Rthi)NOVENTIN®

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.
