Isabellenhütte FMK Series

Isabellenhütte FMK Series
Isabellenhütte FMK Series

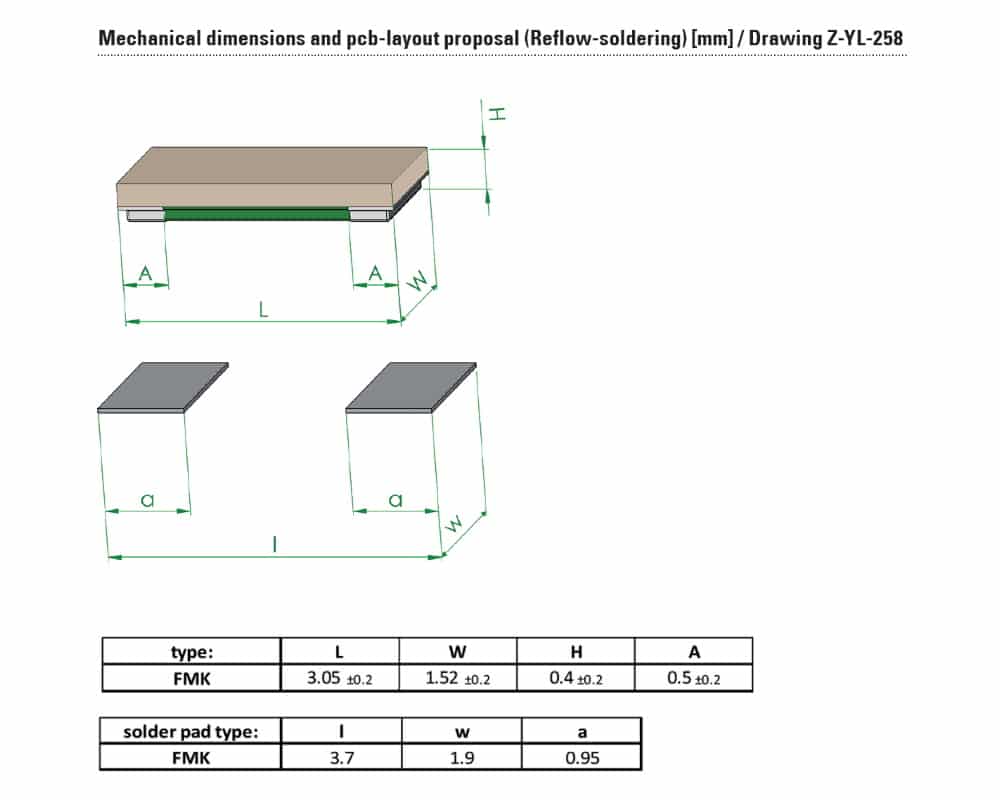

Drawing and Dimensions of FMK resistor from Isabellenhuette
  • Isabellenhütte

Product Features

  • Current sensing resistor
  • Surface-mount 1206 chip size
  • Resistance range from 0.0015Ω to 0.006Ω
  • Tolerances of ±1% and ±5%
  • TCR of <50 ppm/°C
  • Power rating up to 4W at 70°C
  • Temperature range from -65°C to +170°C
  • Automotive

Applications

  • Automotive
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The FMK current sensing precision shunt resistor series is part of the new FMx resistor family from Isabellenhütte, This resistor series offers a chip size of 1206, very good long-term stability and low thermoelectric voltages. The available resistance values are 0.001Ω, 0.002Ω, 0.003Ω, 0.004Ω, 0.005Ω and 0.006Ω, with selection of tolerances of ±1% and ±5%, and temperature coefficient under <50 ppm/°C. The FMK series from Isabellenhütte also features a constant current of up to 60A (0.001Ω), power rating of up to 4W (at 70°C) and is suitable for both reflow and IR soldering. These resistors are designed to be AEC-Q200 qualified (status pending). Their operating temperature range is between -65°C and +170°C.

  • Current sensing resistor
  • Surface-mount 1206 chip size
  • Resistance values of 0.0015Ω, 0.002Ω, 0.003Ω, 0.004Ω, 0.005Ω, and 0.006Ω,
  • Tolerances of ±1% and ±5%
  • TCR of <50 ppm/°C (+20°C to +60°C)
  • Power rating up to 4W (at 70°C)
  • Continuous current load up to 50A (0.0015Ω)
  • Temperature range from -65°C to +170°C
  • Suitable for IR and reflow soldering
  • Inductance of <0.5nH
  • Stability of <0.5% (TK=80°C) / <1.0% (TK=110°C) (at rated power, deviation after 2000h)
  • Conforms to AEC-Q200 (qualification pending)



Typical applications for the FMK current sensing precision shunt resistor series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Frequency converters and power modules
  • Switch-mode power supplies

Isabellenhütte FMK Series Specification Table

Product Ordering CodeResistance ValueToleranceTCRInternal Heat ResistancePower rating (P70°C)Material Type
FMK-Z-R0015*1.5mΩ±1% / ±5%<±50 ppm/°C20°C/W (Rthi)4WZERANIN®30
FMK-M-R002*2mΩ±1% / ±5%<±50 ppm/°C25°C/W (Rthi)3.5WMANGANIN®
FMK-M-R003*3mΩ±1% / ±5%<±50 ppm/°C40°C/W (Rthi)2.5WMANGANIN®
FMK-V-R004*4mΩ±1% / ±5%<±50 ppm/°C50°C/W (Rthi)2WNOVENTIN®
FMK-V-R0055mΩ±1% / ±5%<±50 ppm/°C60°C/W (Rthi)1.5WNOVENTIN®
FMK-V-R0066mΩ±1% / ±5%<±50 ppm/°C65°C/W (Rthi)1.5WNOVENTIN®

* values in preparation

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

Dimensions 3.05 × 1.52 × 0.40 mm
Series / Model

Product Type

Package / Size

,

Material Type

, ,

Resistance Value

, , , , ,

Minimum Resistance

Maximum Resistance

Tolerance

,

Temperature Coefficient

Current Rating

Power Rating

, , , , , ,

Temperature Range (°C)

Isabellenhütte FMK Series Ordering Info

Below is the model number configuration for the FMK series from Isabellenhütte.

Ordering example: FMK-M-R002-1.0
FMKXXXXXXX.X

Series / Model (FMK)

FMK
FMK

Material Type (X)

M
MANGANIN®
V
NOVENTIN®
Z
ZERANIN®

Resistance Value (XXXXX)

Resistance value, in ohms, is expressed by a series of 4 or 5 characters, where the character R (ohms) designates the location of the decimal point.

Tolerance (X.X)

1.0
±1%
5.0
±5%

Isabellenhütte FMK Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 1% Tolerance 5% Tolerance
0.0015Ω* R0015
0.002Ω* R002
0.003Ω* R003
0.004Ω* R004
0.005Ω R005
0.006Ω R006

* values in preparation
