Isabellenhütte GMP Series

Isabellenhütte GMP Series
Isabellenhütte GMP Series
Isabellenhütte GMP Series
  • Isabellenhütte

Product Features

  • Current sensing flip-chip resistor
  • 4-terminal surface-mount 2010 chip size
  • Resistance range from 0.01Ω to 0.08Ω
  • Tolerances of ±1% and ±5%
  • TCR of <50 ppm/°C
  • Power rating of 1W (at 110°)
  • Temperature range from -65°C to +170°C
  • Automotive

Applications

  • Automotive
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

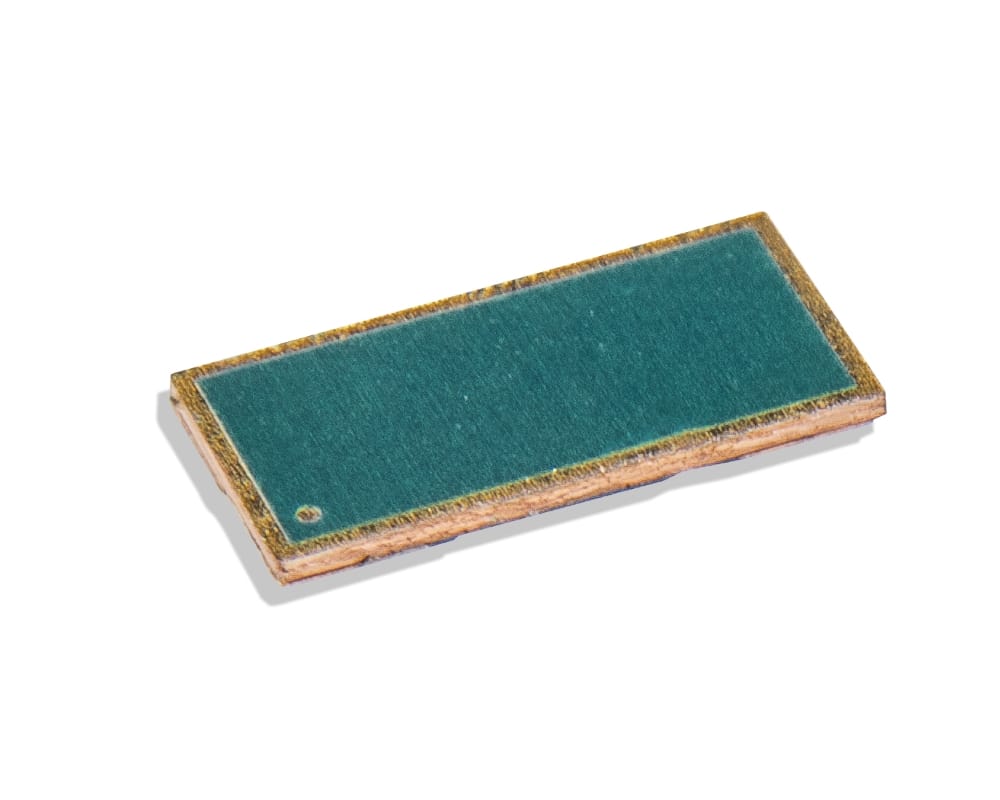

The GMP current sensing flip-chip resistor series from Isabellenhütte is a gold-plated, 4-terminal surface-mount resistor with a Kelvin connection. Developed with a chip size of 2010, resistance values available 0.01Ω, 0.025Ω and 0.08Ω, with a 1W permanent power rating at 110° and constant power up to 10A. The GMP series from Isabellenhütte also offers a high pulse power rating and excellent long term stability with conductive adhesive mounting.

  • Current sensing flip-chip precision resistor
  • 4-terminal surface-mount 2010 chip size
  • Gold plated terminals
  • Resistance values of 0.01Ω, 0.025Ω and 0.08Ω
  • Tolerances of ±1% and ±5%
  • TCR of <±50 ppm/°C (+20°C to +60°C)
  • Power rating of 1W (at 110°C)
  • Constant current up to 10A
  • Temperature range from -65°C to +170°C
  • Inductance of <2nH
  • Stability of <0.5% (TK=80°C) / <1% (TK=110°C) (at rated power, deviation after 2000h)
  • AEC-Q200 qualified



Typical applications for the GMP current sensing flip-chip resistor series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Frequency converters, switch-mode power supplies and power modules

Isabellenhütte GMP Series Specification Table

AttributesValue
Resistance value10mΩ / 25mΩ / 80mΩ
Tolerance±1% / ±5%
TCR<±50 ppm/°C (20-60°C)
Temperature range-65°C to +170°C
Power rating (P110°C)1W
Dielectric withstanding voltage200V AC/DC
Inductance<2nH
Stability (deviation after 2000hrs)<0.5% (Tk=80 °C) / <1.0% (Tk=110 °C)
Tk = Terminal Temperature
Internal heat resistance<60°C/W (Rthi)

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

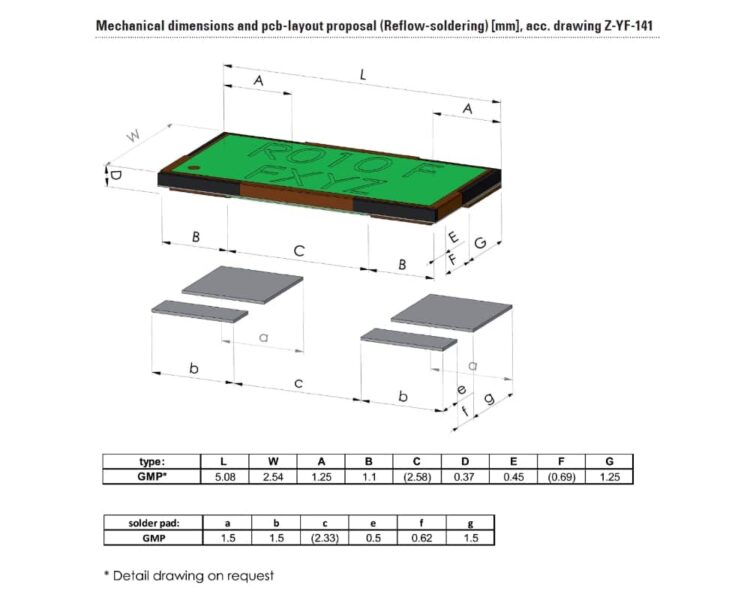

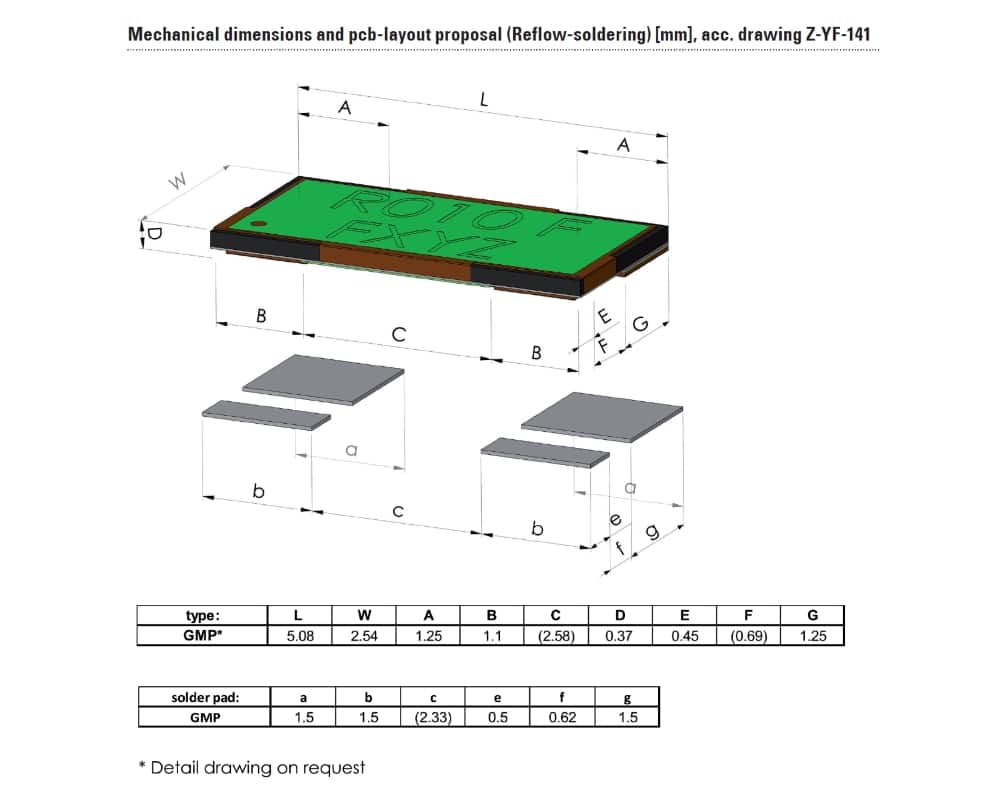

Dimensions 5.08 × 2.54 × 0.37 mm
Series / Model

Product Type

Package / Size

,

Resistance Value

, ,

Minimum Resistance

Maximum Resistance

Tolerance

,

Temperature Coefficient

Current Rating

Power Rating

Temperature Range (°C)

Termination / Connection Type

Isabellenhütte GMP Series Ordering Info

Below is the model number configuration for the GMP series from Isabellenhütte.

Ordering example: GMP-R010-1.0-E
GMPXXXXX.XX

Series / Model (GMP)

GMP
GMP

Resistance Value (XXXX)

Resistance value, in ohms, is expressed by a series of 4 characters, 3 of which represent significant digits. R (ohms) designates the location of the decimal point.

Tolerance (X.X)

1.0
±1%
5.0
±5%

Termination / Connection Type (X)

E
Au Plated

Isabellenhütte GMP Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 1% Tolerance 5% Tolerance
0.01Ω R010
0.025Ω R025
0.080Ω R080
