Isabellenhütte PLU Series

  • Isabellenhütte

Product Features

  • Current sensing precision resistor
  • Gold plated 4-terminal surface-mount 2439 package
  • Resistance value of 0.001Ω
  • Tolerance value ±5%
  • TCR value <50 ppm/°C
  • Power rating of 5W
  • Temperature range from -65°C to +170°C
  • Automotive

Applications

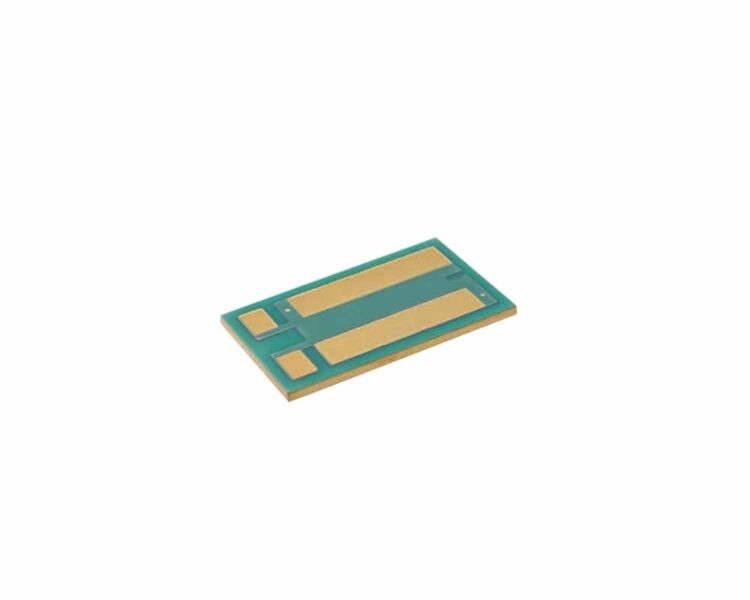

The PLU current sensing precision resistor series from Isabellenhütte offers 4-terminal surface-mount resistors with gold plated contact surfaces and Kelvin connection technology. Developed within a chip size of 2439, the PLU series is available with a resistance value of 0.001Ω, a 5W power rating and a TCR of <±50 ppm/°C (+20°C to +60°C). The PLU series from Isabellenhütte also offers hybrid assembly: bonding and glueing.

  • Current sensing precision resistor
  • Gold plated 4-terminal surface-mount 2439 package
  • Resistance value of 0.001Ω
  • Tolerance of ±5%
  • TCR of <50 ppm/°C (+20°C to +60°C)
  • Power rating of 5W
  • Continuous current load up to 70A
  • Temperature range from -65°C to +170°C
  • Inductance of <10nH
  • Stability of <0.5% (TK=120°C) / <01% (TK=150°C) (at rated power, deviation after 2000h)
  • Dielectric withstanding voltage of 100VAC
  • AEC-Q200 qualified



Typical applications for the PLU current sensing precision resistor series include:

  • Current sensor for power hybrid applications
  • Frequency converters and power supplies
  • High density integration

Isabellenhütte PLU Series Specification Table

AttributesValue
Resistance value1mΩ
Tolerance*±5%
TCR (20-60°C)<±50 ppm/°C
Temperature range**-55°C to +170°C
Power rating5W
Internal heat resistance<4°C/W (Rthi)
Inductance<10nH
Stability (deviation after 2000hrs)<0.5% (Tᴋ = 120°C) / <1% (Tk=150 °C)
Tᴋ = Terminal Temperature

* Exact value depends on bonding position
** Please see datasheet for further details
