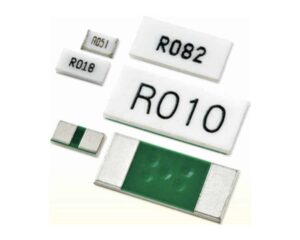

Susumu KRL7638T4 Series

  • Susumu

Product Features

  • Current sensing surface-mount chip resistor
  • 4 sided terminal design with a 3015 chip size
  • Resistance values from 0.001Ω up to 0.5Ω
  • Temperature range options of −55°C to +155°C / +175°C
  • Separated voltage terminal for precise measurement of voltage
  • Power rating of 3W
  • Certified AEC-Q200 compliant
  • Automotive

Applications

The KRL7638T4 Current sensing chip resistor is part of the KRL series of 4-sided terminal metal foil low resistance chip resistors from Susumu. The KRL7638T4 model has a 3015 chip size and is available in E-6 resistance values between 0.001Ω up to 0.5Ω. This 4 terminal resistor has been designed with separated voltage terminals allowing for precise measurement of voltage. Susumu’s metal foil technology offers a power rating of 3W as well as a very stable TCR, down to ±50 ppm/°C at low resistances. These resistors have been developed to withstand high operating temperatures and applications that require the use of low EMF components. The C type utilises materials that can be operated up to +175°C, whereas the M type utilises low EMF materials that are stable up to +155°C.

  • Current sensing surface-mount chip resistor
  • Long sided terminal design with a 3015 chip size
  • Resistance values from 0.001Ω up to 0.5Ω
  • Resistance value series of E-6
  • Tolerances of ±1%, ±2% or ±5%
  • TCR of ±50 ppm/°C or ±100 ppm/°C
  • Power rating of 3W
  • Separated voltage terminal for precise measurement of voltage
  • Temperature range of low EMF -55°C to +155°C (M)
  • Certified AEC-Q200 compliant

The Susumu KRL7638T4 Current sensing chip resistor is ideal for the following applications:

  • Automotive electronics
  • Power source devices
  • Smartphones, mobile phones
  • PCs, HDD
  • Audio visual equipment
  • Industrial measurement instrumentation/equipment
  • Office automation equipment


Susumu KRL Series Specification Table (4-Sided)

ModelPower ratingTCR / ToleranceResistance range *Packaging quantity
KRL3216T41W±50 / ±1% (F)4mΩ to 9mΩ (1mΩ step)
10mΩ to 100mΩ, 200mΩ, 500mΩ
T1(1,000pcs)
T5(5,000pcs)
(1206 Chip Size)1W±1003mΩ ±1% (F), 2mΩ ±2% (G), 1mΩ ±5% (J)T1(1,000pcs)
T5(5,000pcs)
KRL3216T4A1W±35 / ±1% (F)4mΩ to 9mΩ (1mΩ step)
10mΩ to 100mΩ, 200mΩ, 500mΩ
T1(1,000pcs)
T5(5,000pcs)
(1206 Chip Size)1W±753mΩ ±1% (F), 2mΩ ±2% (G), 1mΩ ±5% (J)T1(1,000pcs)
T5(5,000pcs)
KRL6432T42W±50 / ±1% (F)4mΩ to 9mΩ (1mΩ step)
10mΩ to 100mΩ, 200mΩ, 500mΩ
T1(1,000pcs)
T5(5,000pcs)
(2512 Chip Size)2W±1003mΩ ±1% (F), 2mΩ ±2% (G), 1mΩ ±5% (J)T1(1,000pcs)
T5(5,000pcs)
KRL7638T43W±50 / ±1% (F)4mΩ to 9mΩ (1mΩ step)
10mΩ to 100mΩ, 200mΩ, 500mΩ
T1(1,000pcs)
T5(5,000pcs)
(3015 Chip Size)3W±1003mΩ ±1% (F), 2mΩ ±2% (G), 1mΩ ±5% (J)T1(1,000pcs)
T5(5,000pcs)
KRL9045T44W±50 / ±1% (F)4mΩ to 9mΩ (1mΩ step)
10mΩ to 100mΩ, 200mΩ, 500mΩ
T1(1,000pcs)
T5(5,000pcs)
(3518 Chip Size)4W±1003mΩ ±1% (F), 2mΩ ±2% (G), 1mΩ ±5% (J)T1(1,000pcs)
T5(5,000pcs)

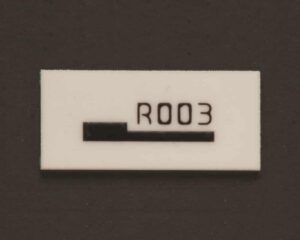

KRL11050T45W±50 / ±1% (F)4mΩ to 9mΩ (1mΩ step)
10mΩ to 100mΩ, 200mΩ, 500mΩ
T1(1,000pcs)
(4320 Chip Size)5W±1003mΩ ±1% (F), 2mΩ ±2% (G), 1mΩ ±5% (J)T1(1,000pcs)


* * We can meet your requirement of less than 1mΩ, please contact us for further details
** We can meet your requirement outside of E-6 series resistance, please contact us for further details

Susumu is a leading manufacturer of thin-film and metal foil SMD resistors, covering a wide range of resistance values and applications. Specialised in the production of Low ohmic, current sensing resistors with long sided variants available for higher power applications. Please visit www.susumu.co.jp/usa/ for more information.

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Dimensions 0.50 x 7.60 x 3.80mm
Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

, ,

Power Rating

Resistance Value

, , , , , , , , ,

Temperature Coefficient

,

Susumu KRL 4 Sided Terminal Series Ordering Info

The KRL resistor series is available with various options. The information below gives an example of the part numbering system used for these resistors and the options available.

Below is an example of the part number break down for the KRL resistor series:

Susumu KRL 4 Sided Terminal Series Ordering Information
