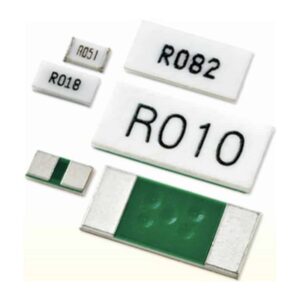

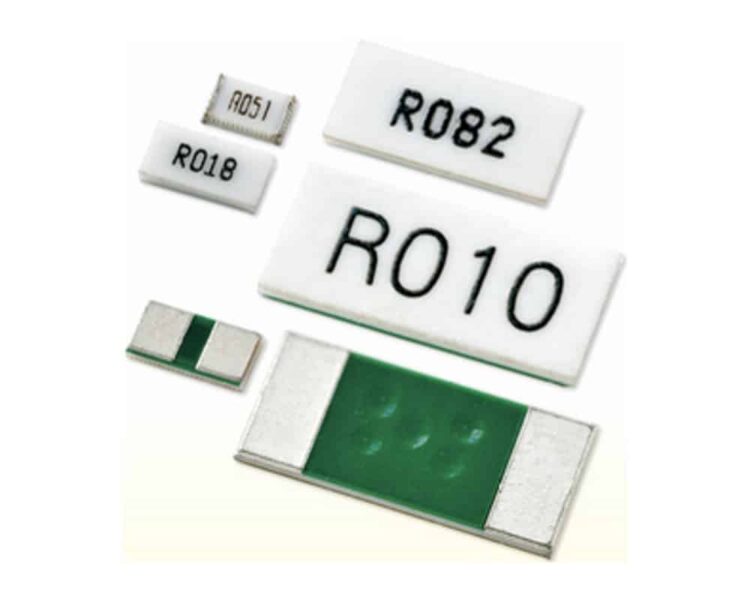

Susumu KRL0816 Series

Product Features

Current sensing surface-mount chip resistor
Short sided terminal design with an 0603 chip size
Resistance values from 0.05Ω to 0.1Ω
Temperature range options of −55°C to +155°C / +175°C
Tolerance of ±1% or ±2%
Power rating of 0.3W
Certified AEC-Q200 compliant

Tolerance
Termination / Connection
Resistance Value
Temperature Coefficient
Version
Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

The KRL0816 Current sensing chip resistor is part of the KRL series of short-sided terminal metal foil low resistance chip resistors from Susumu. The KRL0816 model has a 0603 chip size and is available in E-6 or E-12 resistance values between 0.005Ω to 0.5Ω. Susumu’s metal foil technology offers a power rating of 0.3W as well as a very stable TCR, down to ±50 ppm/°C at low resistances. These resistors have been developed to withstand high operating temperatures and applications that require the use of low EMF components. The C type utilises materials that can be operated up to +175°C, whereas the M type utilises low EMF materials that are stable up to +155°C.

Current sensing surface-mount chip resistor
Short sided terminal design with a 0603 chip size
Resistance values from 0.005Ω to 0.5Ω
Resistance value series of E-6 or E-12
Tolerance of ±1% or ±2%
TCR of ±50 ppm/°C or ±100 ppm/°C
Power rating of 0.3W
Temperature range options of high temperature -55°C to +175°C (C) or low EMF -55°C to +155°C (M)
Terminal types of bottom (D) or wrap-around (E)
Certified AEC-Q200 compliant

The Susumu KRL0816 Current sensing chip resistor is ideal for the following applications:

Automotive electronics
Power source devices
AC/DC converters
DC/DC converters
Motors
Inverters
Office automation equipment

Susumu KRL Series Specification Table (Short-Sided)

Model	Power rating	TCR	Resistance range *	Tolerance	Resistance value **	Packaging quantity
KRL0510	0.2W	±50	50mΩ to 100mΩ	±1% (F) / ±2% (G)	E-6 / E-12	10,000pcs
(0402 Chip Size)	0.2W	±100	5mΩ to 9ｍΩ (1mΩ step)	±2% (G)	E-6 / E-12	10,000pcs
KRL0816	0.3W	±50	10mΩ to 500mΩ	±1% (F)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
(0603 Chip Size)	0.3W	±100	5mΩ to 9ｍΩ (1mΩ step)	±2% (G)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
KRL1220	0.5W	±50	10mΩ to 500mΩ	±1% (F)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
(0805 Chip Size)	0.5W	±100	5mΩ to 9ｍΩ (1mΩ step)	±2% (G)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
KRL1632	0.75W	±50	10mΩ to 500mΩ	±1% (F)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
(1206 Chip Size)	0.75W	±100	5mΩ to 9ｍΩ (1mΩ step)	±2% (G)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
KRL2550	1.5W	±50	10mΩ to 500mΩ	±1% (F)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
(2010 Chip Size)	1.5W	±100	5mΩ to 9ｍΩ (1mΩ step)	±2% (G)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
KRL3264	3W	±50	10mΩ to 1Ω	±1% (F)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
(2512 Chip Size)	3W	±100	5mΩ to 9ｍΩ (1mΩ step)	±2% (G)	E-6 / E-12	T1(1,000pcs) T5(5,000pcs)
KRL50110	5W	±50	10mΩ to 1Ω	±1% (F)	E-6 / E-12	T1(1,000pcs)
(4320 Chip Size)	5W	±100	5mΩ to 9ｍΩ (1mΩ step)	±2% (G)	E-6 / E-12	T1(1,000pcs)

^{* We can meet your requirement for resistance values not specified in the above table, please contact us for further details

** We can meet your requirement outside of E-6/E-12 series resistance, please contact us for further details}

Susumu is a leading manufacturer of thin-film and metal foil SMD resistors, covering a wide range of resistance values and applications. Specialised in the production of Low ohmic, current sensing resistors with long sided variants available for higher power applications. Please visit www.susumu.co.jp/usa/ for more information.

Specifications

Dimensions	0.50 x 0.80 x 1.60mm
Minimum Resistance	0.005Ω
Series / Model	KRL
Maximum Resistance	0.5Ω
Tolerance	±1%, ±2%
Power Rating	0.3W
Termination / Connection	Bottom Terminals, Wrap-around Terminals
Resistance Value	Custom E-6 / E-12 (0.01Ω – 0.5Ω), 0.005Ω, 0.006Ω, 0.007Ω, 0.008Ω, 0.009Ω
Temperature Coefficient	±50 ppm/°C, ±100 ppm/°C
Version	High operating temperature, Low EMF

Susumu KRL Short Sided Terminal Series Ordering Info

The KRL resistor series is available with various options. The information below gives an example of the part numbering system used for these resistors and the options available.

Below is an example of the part number break down for the KRL resistor series:

SKU	Version	Resistance Value	Tolerance	Termination / Connection	Temperature Coefficient
Susumu KRL0816 Series	High operating temperature	0.005Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.005Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.005Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.005Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.006Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.006Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.006Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.006Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.007Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.007Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.007Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.007Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.008Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.008Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.008Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.008Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.009Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	0.009Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.009Ω	±2%	Bottom Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	0.009Ω	±2%	Wrap-around Terminals	±100 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	Custom E-6 / E-12 (0.01Ω - 0.5Ω)	±1%	Bottom Terminals	±50 ppm/°C	Request Quote
Susumu KRL0816 Series	High operating temperature	Custom E-6 / E-12 (0.01Ω - 0.5Ω)	±1%	Wrap-around Terminals	±50 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	Custom E-6 / E-12 (0.01Ω - 0.5Ω)	±1%	Bottom Terminals	±50 ppm/°C	Request Quote
Susumu KRL0816 Series	Low EMF	Custom E-6 / E-12 (0.01Ω - 0.5Ω)	±1%	Wrap-around Terminals	±50 ppm/°C	Request Quote
