| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.50 x 2.50 x 3.20mm |
| Maximum Resistance | 1TΩ |
| Minimum Resistance | 10MΩ |
| Mounting / Size | |
| Power Rating | |
| Product Type | |
| Resistance Value | Custom (10MΩ – 100MΩ), Custom (100MΩ – 500MΩ), Custom (500MΩ – 1GΩ), Custom (1GΩ – 10GΩ), Custom (10GΩ – 100GΩ), Custom (100GΩ – 1TΩ) |
| Series / Model | |
| Temperature Coefficient | ±50 ppm/°C, ±100 ppm/°C, ±250 ppm/°C, ±500 ppm/°C, ±1000 ppm/°C, ±2000 ppm/°C |
| Temperature Range | -55 to +300°C |
| Termination / Connection | PtAg |
| Tolerance |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

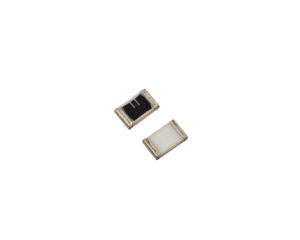

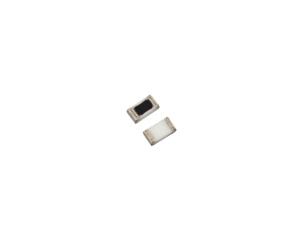

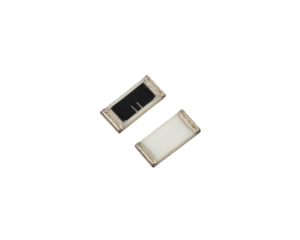

The CHS 1210-HT high temperature, high ohmic non-magnetic resistor series from SRT Resistor Technology offers the same features as the CHS 1210 range while allowing for high temperature applications of up to 300°C. The main features comprise of a high resistance range from 10MΩ up to 1TΩ, power rating of 0.35W and voltage rating of 300V trimmed or 600V untrimmed (tolerances ≥5.0%), all in a small 1210 surface mount package. By utilising SRT’s thick film resistor technology, these chip resistors are able to offer tolerances down to ±1.0% (between 10MΩ and 100MΩ) as well as a TCR of down to ±25 ppm/°C and a VCR as low as ±25 ppm/V (between 10MΩ and 100MΩ). The CHS 1210-HT resistor series contains no organics, making them suitable for high vacuum applications and offer PtAg (platinum silver) terminations for conductive gluing and soldering.
Custom tolerance, TCR and VCR options are available upon request. Please contact us for further information and availability.
Please see the derating curve below for the CHx-HT, CRB-HT and CBW-HT series from 0°C to +300°C:
The final measuring of the resistors takes place at room temperature (independent of TCR).
Please pay attention to the interconnection technology at high temperature applications.
Please note, the tolerance for the CHS 1210-HT series starts from ±1%, whereas the below table gives the full specifications of the standard CHS series:
1) At continuous power dissipation the dimensions of solder-pads have to secure a sufficient heat removal
2) Continuous operating voltage (U_, Ueff): V ≤ √(P*R) or max. working voltage (the lower value)
3) TCR: in ppm/K; +25°C…+125°C; TCR lower than standard TCR (highest value) or value >100G: +25°C…+85°C
4) VCR: typical values, all negative, not for all TCR values available
