Exxelia Ohmcraft HVD 04

Product Features

  • High Voltage Divider
  • Resistance range from 100kΩ to 1TΩ
  • Ratio tolerances from ±0.1% to ±20%
  • TCR from ±25 ppm/°C to ±>200 ppm/°C
  • Power rating of 0.5W
  • Voltage rating of 4kV
  • Temperature range from -55°C to +150°C
  • Available

HVD Series Description

  • High Voltage Dividers
  • Voltage ratings from 4kV to 40kV
  • Power ratings from 0.5W to 6W
  • Available in resistances from 100kΩ and 1TΩ
  • Ratio tolerances of ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5% ,±10% or ±20%
  • TCR ratings of ±25ppm/°C, ±50ppm/°C, ±100ppm/°C, ±200ppm/°C or >±200ppm/°C
  • Ratios of 1000:1 and 100:1 as standard *
  • Ultra-high stability
  • Very low noise
  • VCR down to 0.05 ppm/V
  • Temperature range from -55°C up to 150°C

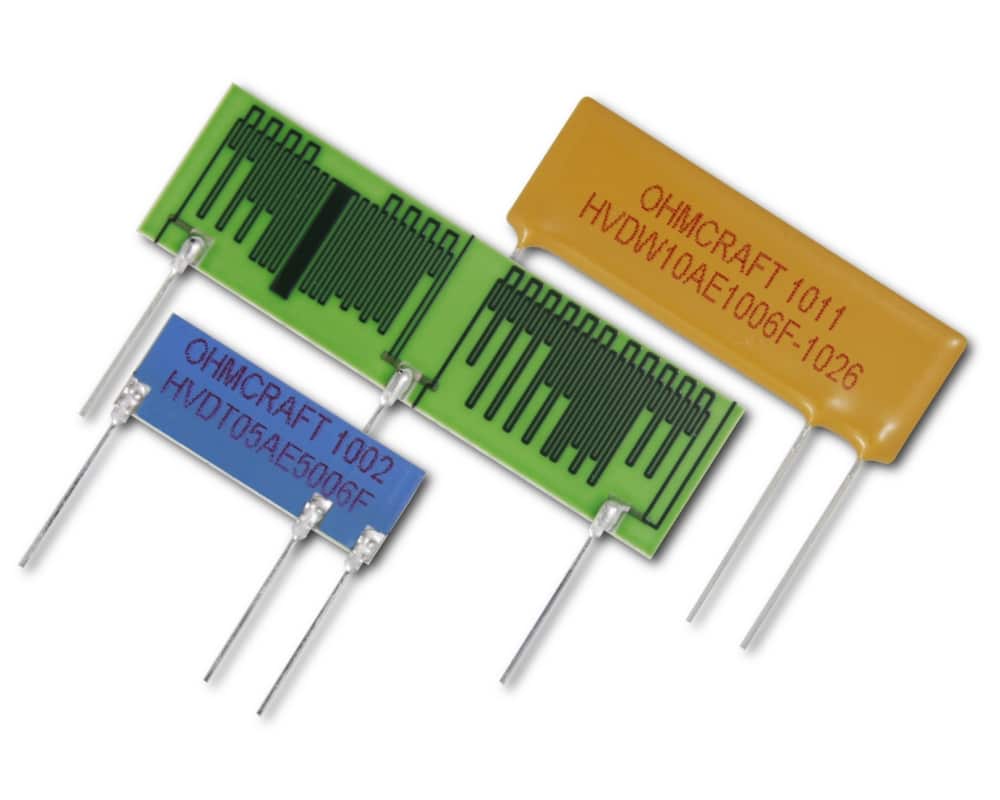

* Custom configurations are available upon request The HVD high voltage through hole divider resistor series from Exxelia Ohmcraft® offers voltage ratings from 4kV to 40kV and power ratings from 0.5W to 6W. These high voltage dividers are available with standard ratios of 1000:1 or 100:1 and a total divider resistance from 100kΩ to 1TΩ. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVD resistors offer very low noise, ultra-high stability with ratio tolerances down to ±0.1%, absolute TCR as low as ±25 ppm/°C and VCR down to 0.05 ppm/V. The HVD series divider ratio is calculated using the formula Ratio = (R1 R2)/R2. Resistance in the part number is the total resistance i.e. R1 R2.

Specifications

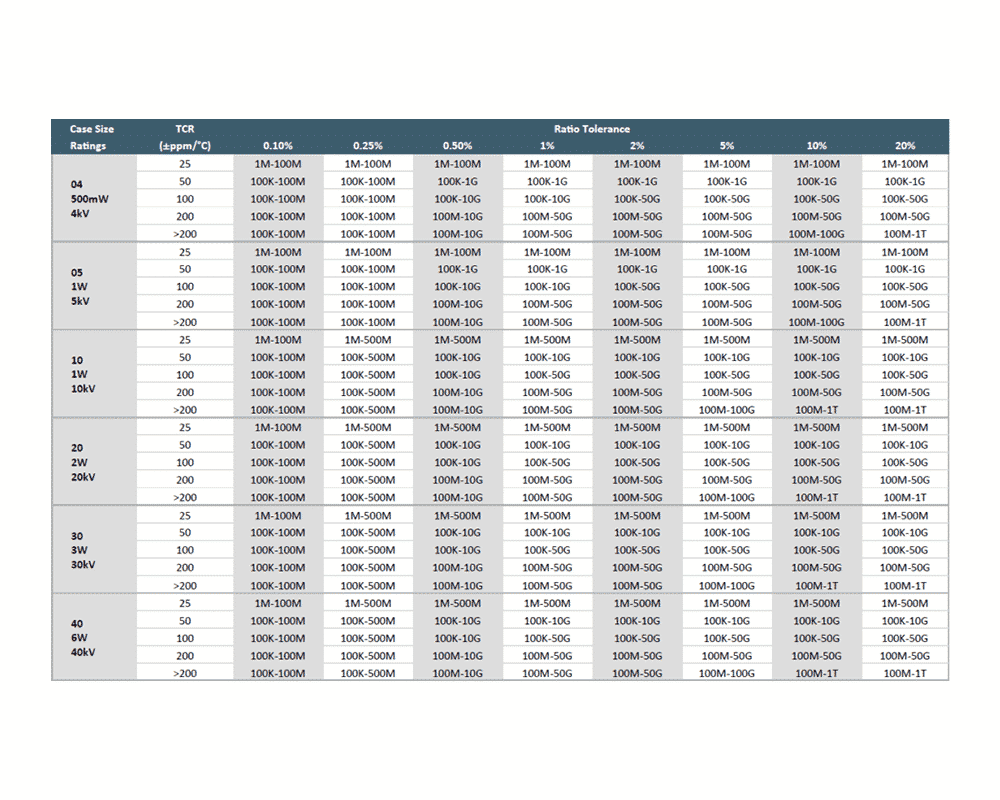

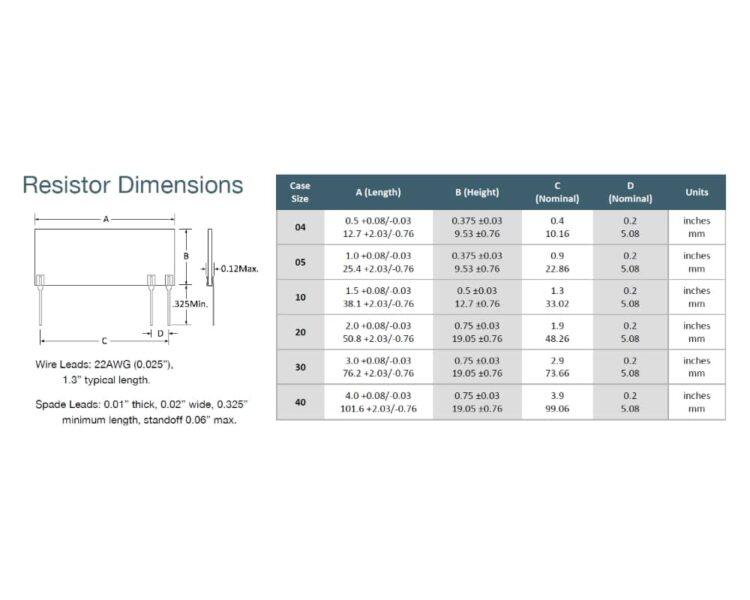

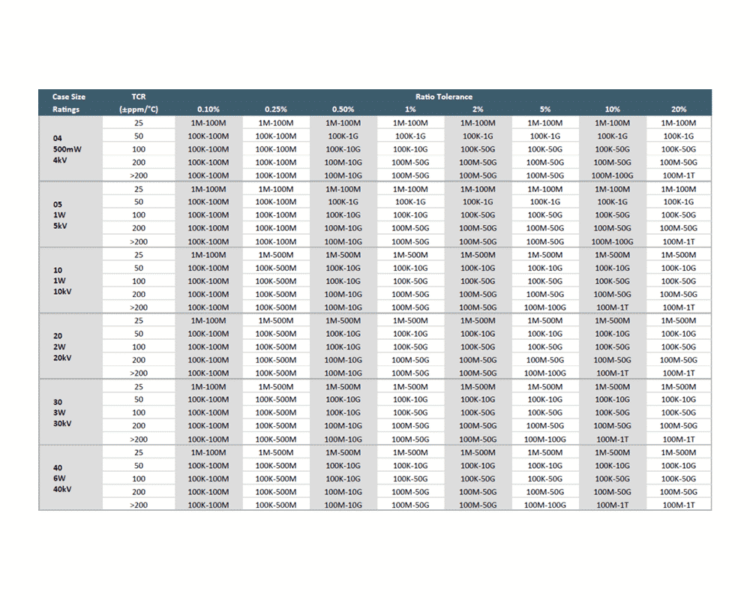

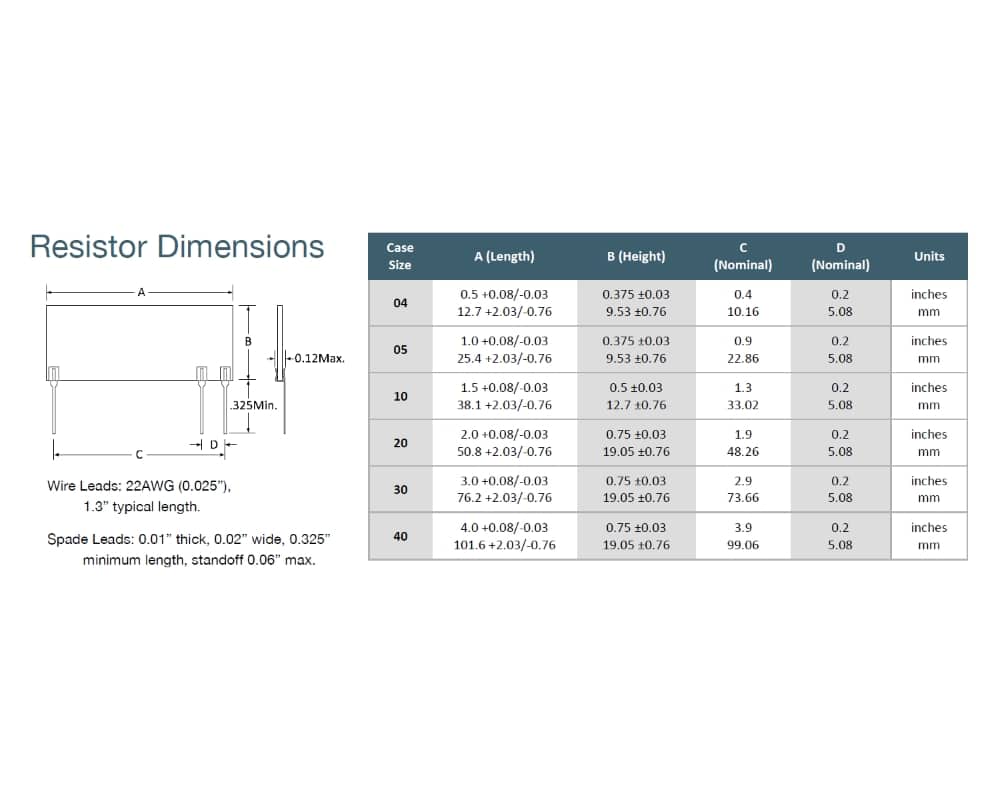

Dimensions 9.53 x 3.05 x 12.70mm
Product Type

Design Technology

THT (through hole)

Package / Size

Minimum Resistance

100kΩ

Maximum Resistance

1TΩ

Tolerance

, , , , , , ,

Temperature Coefficient

, , , , ,

Power Rating

Voltage Rating

Ratio

100:1, 1000:1, Custom

Coating

Bare, Powder, Single Surface Epoxy

Termination / Connection

Spade Terminal 100% Tin RoHS, Spade Terminal Sn60Pb40 solder, Wire 22AWG 100% Tin RoHS, Wire 22AWG Sn60Pb40 solder

Series / Model

Temperature Range (°C)

-55 to +150°C

Ordering Info

Below is the model number configuration for the HVD series from Exxelia Ohmcraft.
Ordering example: HVDT04AH1003C3
HVDXXXXXXXXXXX

Series / Model (HVD)

HVD
HVD

Termination / Connection (X)

B
Wire 22AWG Sn60Pb40 solder
S
Spade Terminal Sn60Pb40 solder
T
Spade Terminal 100% Tin RoHS
W
Wire 22AWG 100% Tin RoHS

Package / Size (XX)

04
04

Ratio (X)

A
1000:1
B
100:1
C
Custom

Temperature Coefficient (X)

Absolute

E
±25ppm/°C
H
±50ppm/°C
K
±100ppm/°C
L
±200ppm/°C
M
>±200ppm/°C

Tracking

W
±10ppm/°C
X
±15ppm/°C
Y
±25ppm/°C
Z
±50ppm/°C

Resistance Value (XXXX)

Resistance value is expressed as a four-digit number, where the first three numbers are the significant value, and the fourth number is the number of zeroes.

Tolerance (X)

B
±0.1%
C
±0.25%
D
±0.5%
F
±1%
G
±2%
J
±5%
K
±10%
L
±20%

Coating (X)

2
Bare
3
Powder
4
Single Surface Epoxy

Absolute tolerance is 15% (> 10GΩ 20%) unless otherwise specified. Ratio = (R1+R2)/R2
When TCR Tracking is specified, the typical Absolute TCR is 100ppm/°C.

Product Variations

SKUResistance ValueToleranceOptionsTemperature CoefficientRatioCoatingTermination / ConnectionSeries / Model
Exxelia Ohmcraft HVD 04Custom (1MΩ - 100MΩ)
Exxelia Ohmcraft HVD 04Custom (100kΩ - 1MΩ)±50 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1MΩ - 100MΩ)±50 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±0.5%±50 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±1%±50 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±2%±50 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±5%±50 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±10%±50 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±20%±50 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100kΩ - 1MΩ)Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1MΩ - 100MΩ)Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±0.5%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±1%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±2%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±5%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±10%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±20%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±0.5%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±1%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±2%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±5%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±10%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±20%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±2%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±5%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±10%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±20%Absolute±100 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100kΩ - 1MΩ)±0.1%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1MΩ - 100MΩ)±0.1%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100kΩ - 1MΩ)±0.25%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1MΩ - 100MΩ)±0.25%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±0.5%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±0.5%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±1%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±1%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±1%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±2%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±2%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±2%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±5%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±5%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±5%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±10%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±10%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±10%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±20%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±20%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±20%Absolute±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100kΩ - 1MΩ)±0.1%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1MΩ - 100MΩ)±0.1%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100kΩ - 1MΩ)±0.25%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1MΩ - 100MΩ)±0.25%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±0.5%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±0.5%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±1%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±1%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±1%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±2%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±2%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±2%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±5%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±5%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±5%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±10%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±10%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±10%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (50GΩ - 100GΩ)±10%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100MΩ - 1GΩ)±20%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (1GΩ - 10GΩ)±20%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (10GΩ - 50GΩ)±20%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (50GΩ - 100GΩ)±20%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Custom (100GΩ - 1TΩ)±20%Absolute>±200 ppm/°C
Exxelia Ohmcraft HVD 04Tracking±10 ppm/°C
Exxelia Ohmcraft HVD 04Tracking±15 ppm/°C

HVD Series Products

 Product namePackage / SizeRatioTemperature CoefficientMinimum ResistanceMaximum ResistanceToleranceCoatingPower RatingVoltage Rating
HVD Series | Exxelia Ohmcraft Exxelia Ohmcraft HVD 0404100:1, 1000:1, Custom±10 ppm/°C, ±15 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C100kΩ1TΩ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%Bare, Powder, Single Surface Epoxy0.5W4kVView Product
HVD Series | Exxelia Ohmcraft Exxelia Ohmcraft HVD 0505100:1, 1000:1, Custom±10 ppm/°C, ±15 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C100kΩ1TΩ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%Bare, Powder, Single Surface Epoxy1W5kVView Product
HVD Series | Exxelia Ohmcraft Exxelia Ohmcraft HVD 2020100:1, 1000:1, Custom±10 ppm/°C, ±15 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C100kΩ1TΩ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%Bare, Powder, Single Surface Epoxy2W20kVView Product
HVD Series | Exxelia Ohmcraft Exxelia Ohmcraft HVD 3030100:1, 1000:1, Custom±10 ppm/°C, ±15 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C100kΩ1TΩ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%Bare, Powder, Single Surface Epoxy3W30kVView Product
HVD Series | Exxelia Ohmcraft Exxelia Ohmcraft HVD 4040100:1, 1000:1, Custom±10 ppm/°C, ±15 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C100kΩ1TΩ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%Bare, Powder, Single Surface Epoxy6W40kVView Product
HVD Series | Exxelia Ohmcraft Exxelia Ohmcraft HVD 1010100:1, 1000:1, Custom±10 ppm/°C, ±15 ppm/°C, ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C100kΩ1TΩ±0.1%, ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%Bare, Powder, Single Surface Epoxy1W10kVView Product
