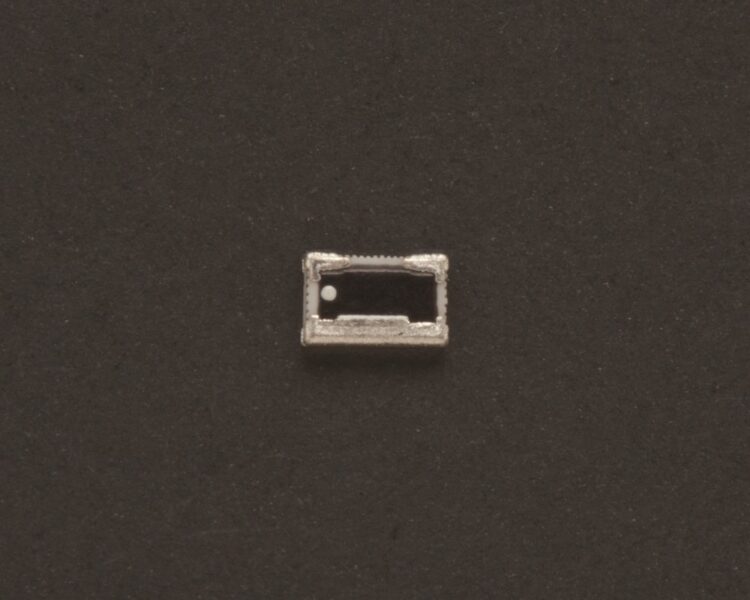

Susumu RM2012 Series

  • Susumu

Product Features

  • Surface-mount metal thin film chip resistor network
  • Temperature range of −55°C to +155°C
  • Standard and custom circuit designs available
  • Long term stability less than ±0.1%
  • AEC-Q200 compliant
  • Automotive

Applications

  • Compliant

Description

The RM2012 series of thin film chip resistor networks from Susumu are designed with 4-terminals and 2-internal elements. They offer tight relative tolerances down to ±0.01% and a relative TCR as low as ±1ppm/°C, all with the RG series equivalent reliability and long term stability. The Susumu RM2012 resistance values range from 100Ω to 100kΩ with a chip size of 0805, standard and custom circuit designs are also available.

  • Surface-mount metal thin film chip resistor network
  • Resistance values between 100Ω and 100kΩ are available
  • 4-terminal and 2-element design
  • Power rating at 85°C for the element 0.05W and the package 0.1W
  • Absolute tolerance values available from as low as ±0.5% (D) and the relative tolerance from as low as ±0.01%
  • Absolute TCR values available from ±5 ppm/°C (V) and the relative TCR values available from ±1 ppm/°C (X)
  • RG series equivalent reliability and long term stability is less than ±0.1% with a drift after 10000 hour stress test
  • Standard and custom circuit designs available
  • Chip size of 0805
  • AEC-Q200 compliant

Susumu RM2012 series thin film chip resistor network are ideal for the following applications:

  • Automotive electronics
  • Precision measurement instrumentation
  • Medical electronics
  • Voltage divider and amplification circuits that require very precise relative resistance tolerance and TCR
  • Multi step precision amplification circuits for minute signals

For further information please see the datasheet on the Technical Library tab.


Specifications

Weight 0.00000 kg

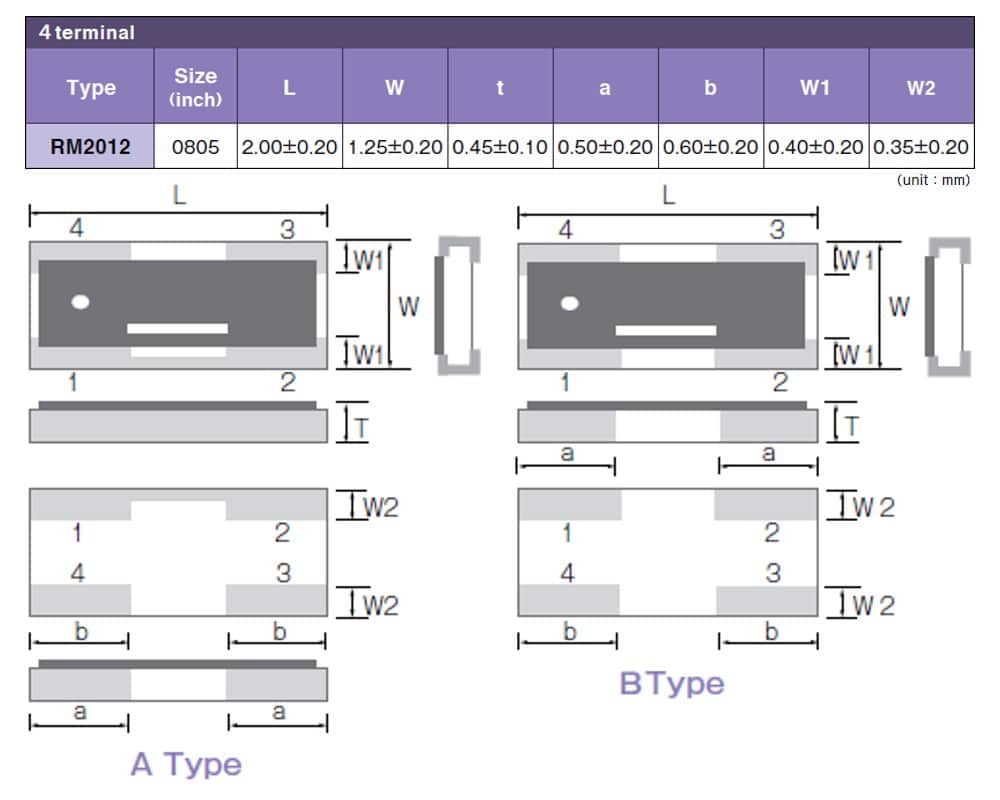

Dimensions 2.00 × 1.25 × 0.45 mm
Series / Model

Minimum Resistance

Maximum Resistance

Temperature Coefficient

, ,

Power Rating

Additional Features

Surface-mount metal thin film chip resistor networkOperating temperature range of −55°C to +155°C Standard and custom circuit designs availableLong term stability less than ±0.1C-Q200 complia

Tolerance

, ,
