Susumu RM3216 Series

  • Susumu

Product Features

  • Surface-mount metal thin film chip resistor network
  • Temperature range of −55°C to +155°C
  • Standard and custom circuit designs available
  • Long term stability less than ±0.1°
  • AEC-Q200 compliant
  • Automotive

Applications

  • Compliant

Description

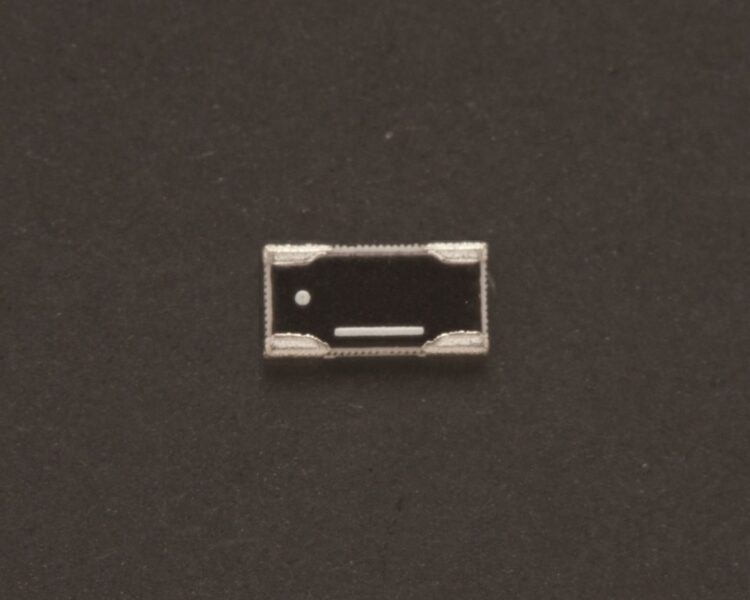

The RM3216 series of thin film chip resistor networks from Susumu are designed with a variety of terminal and internal element layout options. They also offer tight relative tolerances down to ±0.01% (L) and a relative TCR as low as ±1 ppm/°C (X), all with the RG series equivalent reliability and long term stability. The Susumu RM3216 resistance values range from 100Ω to 500KΩ with a chip size of 1206, standard and custom circuit designs available.

  • Surface-mount metal thin film chip resistor network
  • Resistance values between 100Ω and 500KΩ available
  • Various terminal and internal element layout options
  • Power rating at 85°C for the element 0.021W, 0.32W, 0.42W, 0.083W depending on the design required and the package 0.125W
  • Absolute tolerance values available from as low as ±0.05% (W) and the relative tolerance from as low as ±0.01% (L)
  • Absolute TCR values available from ±5 ppm/°C (V) and the relative TCR values available from ±1 ppm/°C (X)
  • RG series equivalent reliability and long term stability: less than ±0.1% (B) drift after 10000 hour stress test
  • Standard and custom circuit designs available
  • Chip size of 1206
  • AEC-Q200 compliant

Susumu RM3216 series metal thin film chip resistor network are ideal for the following applications:

  • Automotive electronics
  • Precision measurement instrumentation
  • Medical electronics
  • Voltage divider and amplification circuits that require very precise relative resistance tolerance and TCR
  • Multi step precision amplification circuits for minute signals

For further information please see the datasheet on the Technical Library tab.


Specifications

Weight 0.00000 kg

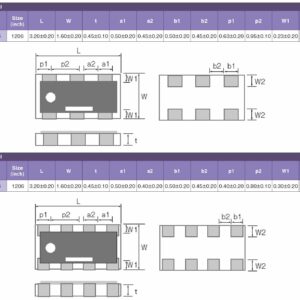

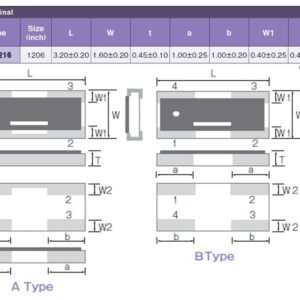

Dimensions 3.20 × 1.60 × 0.45 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

, ,

Power Rating

Additional Features

Surface-mount metal thin film chip resistor networkOperating temperature range of −55°C to +155°CStandard and custom circuit designs availableLong term stability less than ±0.1° AEC-Q200 compli

Tolerance

, ,
