Susumu RM3225 Series

  • Susumu

Product Features

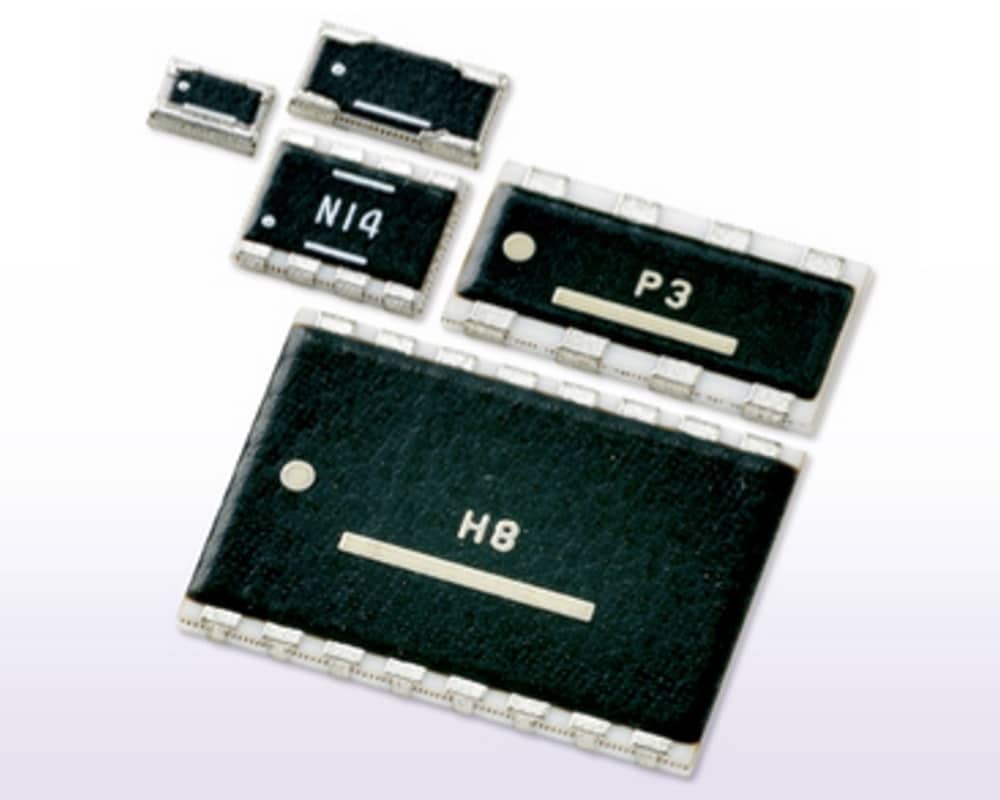

Surface-mount metal thin film chip resistor network

  • Temperature range of −55°C to +155°C
  • Standard and custom circuit designs available
  • Long term stability less than ±0.1%
  • AEC-Q200 compliant
    • Automotive

    Applications

    • Compliant

    Description

    The RM3225 series thin film chip resistor networks from Susumu are designed with a variety of terminal and internal element layout options. They also offer tight relative tolerances down to ±0.01% (L) and a relative TCR as low as ±1 ppm/°C (X), all with the RG series equivalent reliability and long term stability. The Susumu RM3225 resistance values range from 100Ω to 500kΩ with a chip size of 1209, standard and custom circuit designs available.

    • Surface-mount metal thin film chip resistor network
    • Resistance values between 100Ω and 500kΩ available
    • Various terminal and internal element layout options
    • Power rating at 85°C for the element 0.033W, 0.05W, 0.066W, 0.1W depending on the design required and the package 0.2W
    • Absolute tolerance values available from as low as ±0.05% (W) and the relative tolerance from as low as ±0.01% (L)
    • Absolute TCR values available from ±5 ppm/°C (V) and the relative TCR values available from ±1 ppm/°C (X)
    • RG series equivalent reliability and long term stability is less than ±0.1% drift after 10000 hour stress test
    • Standard and custom circuit designs available
    • Chip size of 1209
    • AEC-Q200 compliant

    Susumu RM3225 series metal thin film chip resistor network cover the following applications:

    • Automotive electronics
    • Precision measurement instrumentation
    • Medical electronics
    • Voltage divider and amplification circuits that require very precise relative resistance tolerance and TCR
    • Multi step precision amplification circuits for minute signals

    For further information please see the datasheet on the Technical Library tab.


    Specifications

    Weight 0.00000 kg

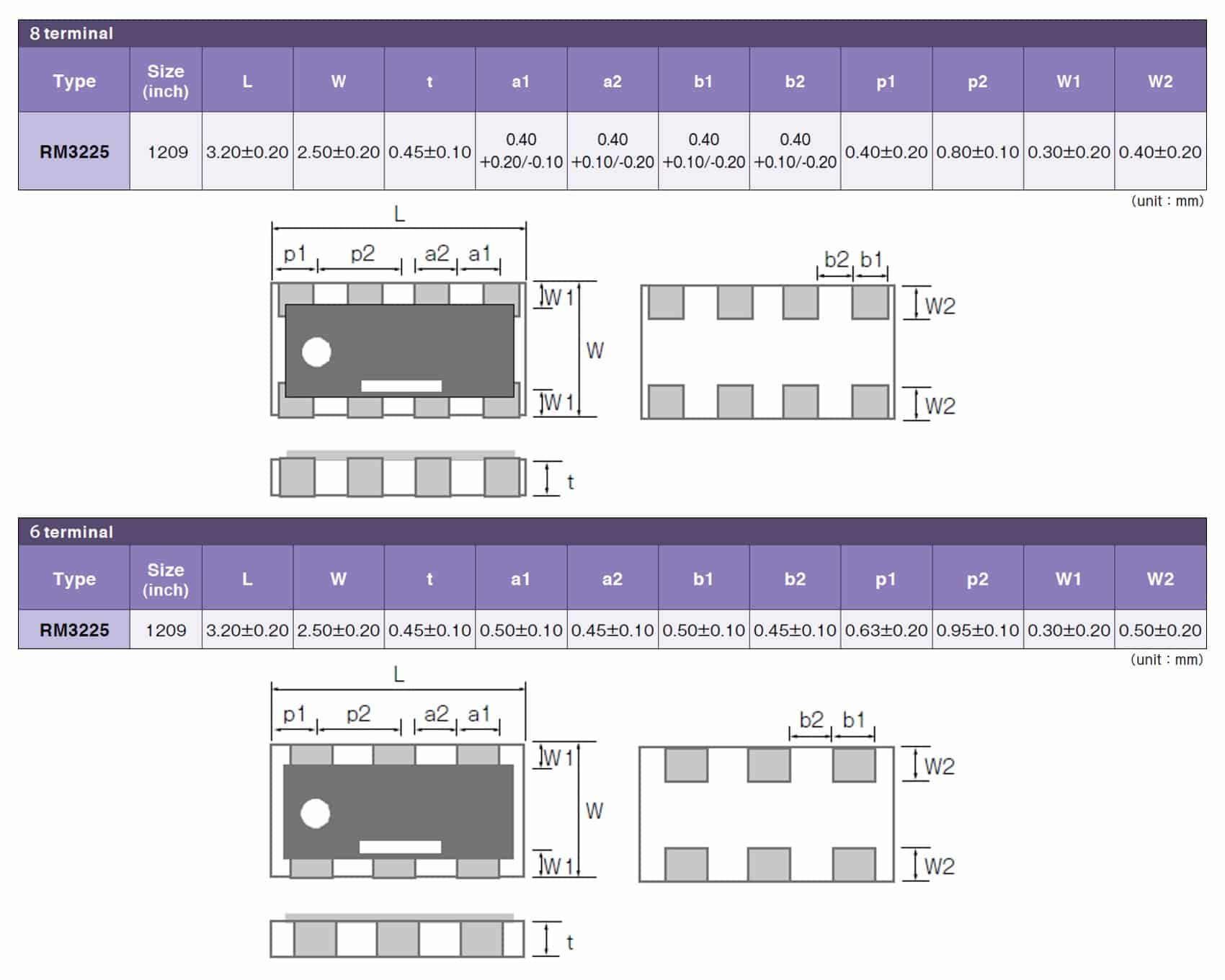

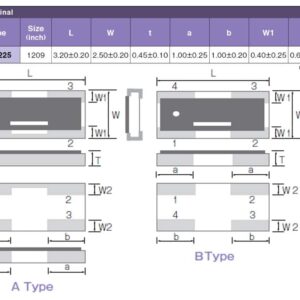

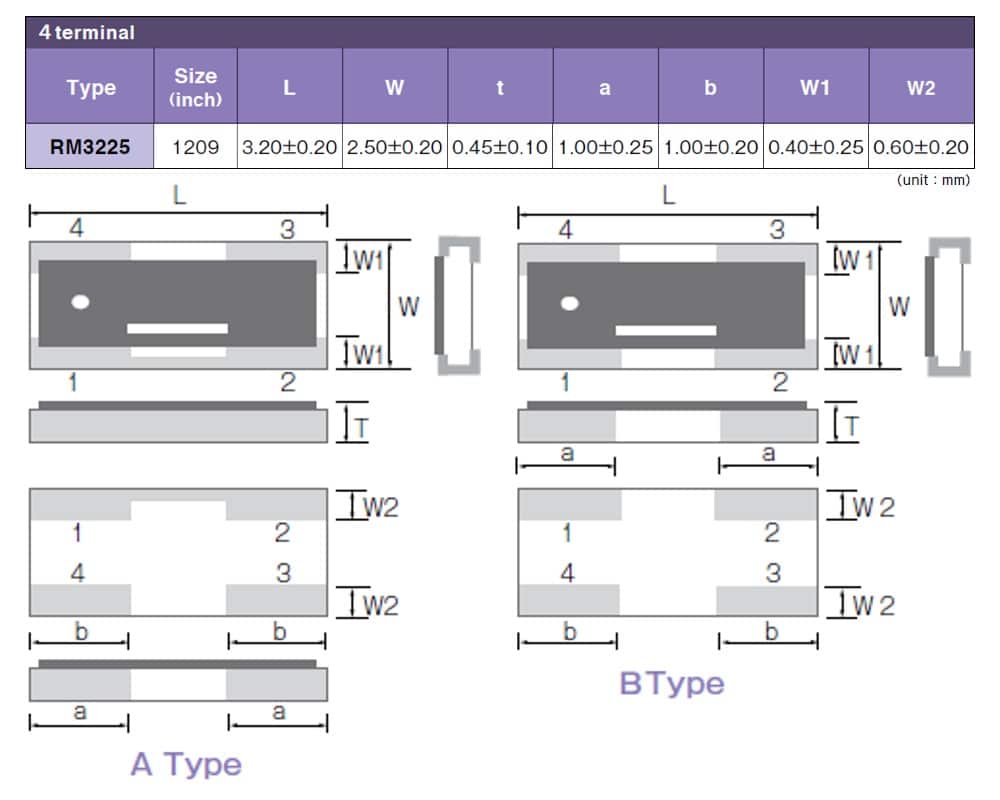

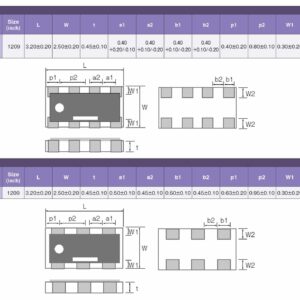

    Dimensions 3.20 × 2.50 × 0.45 mm
    Series / Model

    Minimum Resistance

    Maximum Resistance

    Temperature Coefficient

    , ,

    Power Rating

    Additional Features

    Surface-mount metal thin film chip resistor networkOperating temperature range of −55°C to +155°CStandard and custom circuit designs availableLong term stability less than ±0.1° AEC-Q200 compli

    Tolerance

    , ,
