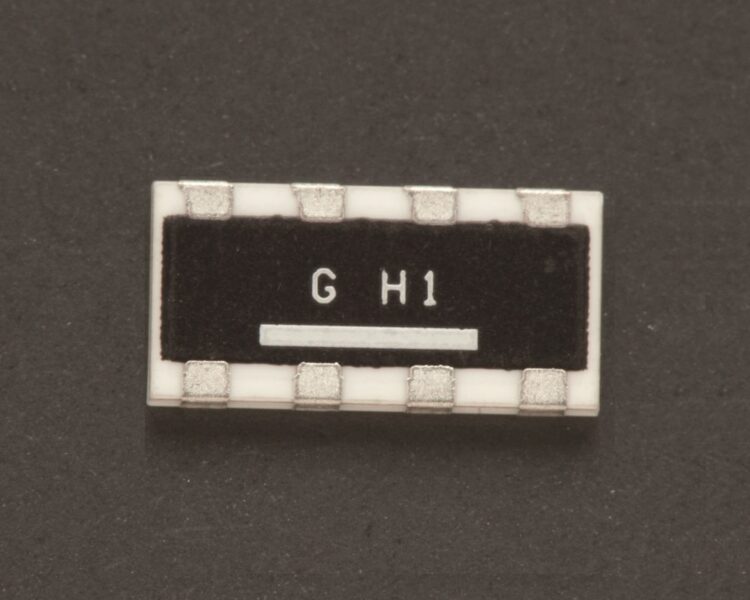

Susumu RM6432 Series

  • Susumu

Product Features

  • Surface-mount metal thin film chip resistor network
  • Operating temperature range of −55°C to +155°C
  • Standard and custom circuit designs available
  • Long term stability less than ±0.1%
  • AEC-Q200 compliant
  • Automotive

Applications

Description

The RM6432 series of thin film chip resistor networks from Susumu are designed with a variety of terminal and internal element layout options. They also offer tight relative tolerances down to ±0.01% (L) and a relative TCR as low as ±1 ppm/°C (X), all with the RG series equivalent reliability and long term stability. The Susumu RM6432 resistance values range from 100Ω to 1MΩ with a chip size of 2512, standard and custom circuit designs available.

  • Surface-mount metal thin film chip resistor network
  • Resistance values between 100Ω and 1MΩ available
  • Various terminal and internal element layout options
  • Power rating at 85°C for the element 0.066W or 0.1W depending on the design required and the package 0.4W
  • Absolute tolerance values available from as low as ±0.05% (W) and the relative tolerance from as low as ±0.01% (L)
  • Absolute TCR values available from ±5 ppm/°C (V) and the relative TCR values available from ±1 ppm/°C (X)
  • RG series equivalent reliability and long term stability is less than ±0.1% drift after 10000 hour stress test
  • Standard and custom circuit designs available
  • Chip size of 2512
  • AEC-Q200 compliant

Susumu RM6432 series metal thin film chip resistor network are ideal for the following applications:

  • Automotive electronics
  • Precision measurement instrumentation
  • Medical electronics
  • Voltage divider and amplification circuits that require very precise relative resistance tolerance and TCR
  • Multi step precision amplification circuits for minute signals

For further information please see the datasheet on the Technical Library tab.


Specifications

Weight 0.00000 kg

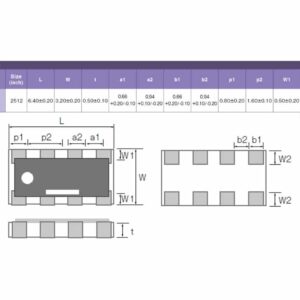

Dimensions 6.40 × 3.20 × 0.50 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

, ,

Power Rating

Additional Features

Tolerance

, ,

RoHS Compliant Product – Susumu

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
