| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.40 x 1.50 x 3.20mm |
| Maximum Resistance | 100GΩ |
| Minimum Resistance | 10MΩ |
| Mounting / Size | |
| Power Rating | |
| Product Type | |
| Resistance Value | Custom (10MΩ – 100MΩ), Custom (100MΩ – 500MΩ), Custom (500MΩ – 1GΩ), Custom (1GΩ – 10GΩ), Custom (10GΩ – 100GΩ) |
| Series / Model | |
| Temperature Coefficient | ±50 ppm/°C, ±100 ppm/°C, ±250 ppm/°C, ±500 ppm/°C, ±1000 ppm/°C, ±2000 ppm/°C |
| Temperature Range | -55 to +155°C |
| Termination / Connection | PtAg |
| Tolerance |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
The CHS 1206 high ohmic non-magnetic resistor series from SRT Resistor Technology offers a high resistance range from 10MΩ up to 100GΩ, power rating of 0.25W and voltage rating of 200V trimmed or 400V untrimmed (tolerances ≥5.0%), all in a small 1206 surface mount package. By utilising SRT’s thick film resistor technology, these chip resistors are able to offer tolerances down to ±0.5% (between 10MΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 10MΩ and 100MΩ) and a VCR as low as ±250 ppm/V (between 10MΩ and 100MΩ). The CHS 1206 resistor series contains no organics, making them suitable for high vacuum applications and offer PtAg (platinum silver) terminations for conductive gluing and soldering.
The CHS high ohmic non-magnetic resistor series is also available with an extended high temperature range version (up to +300°C). Please see the separate CHS-HT product pages for further information.
Lower tolerance, TCR and VCR options are available upon request. Please contact us for further information and availability.

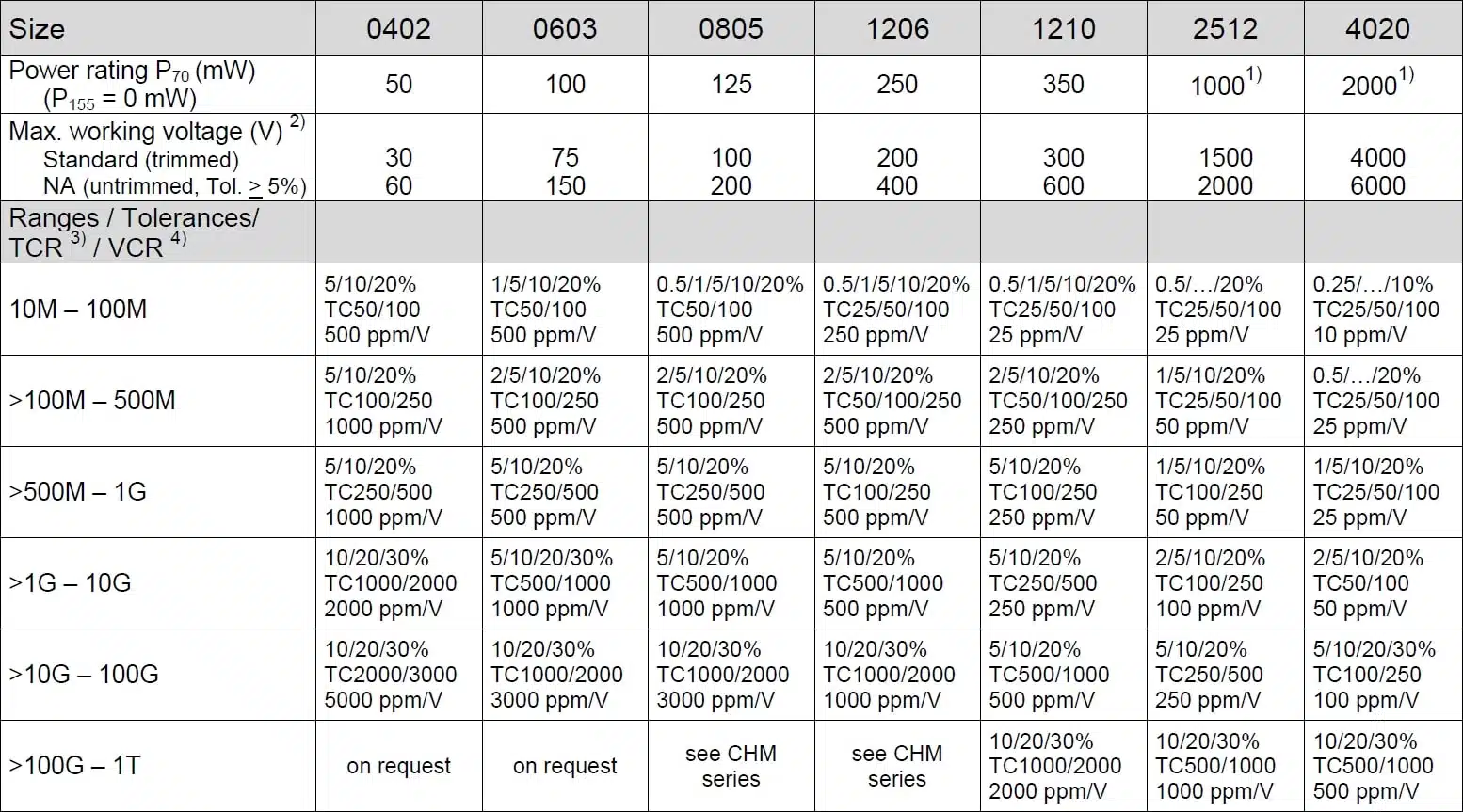

The below table gives full specifications for each resistor model available including the CHS 1206 series:
