Caddock MP925 Series

  • Exempt
  • Caddock

Product Features

  • TO-220 style Kool-Pak® power through-hole resistor
  • Heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface
  • Non-inductive design
  • Constructed with Caddock’s Micronox® resistance film technology
  • Maximum voltage rating of 500V
  • Operation up to +150°C case temperature

Applications

  • Power Control

Description

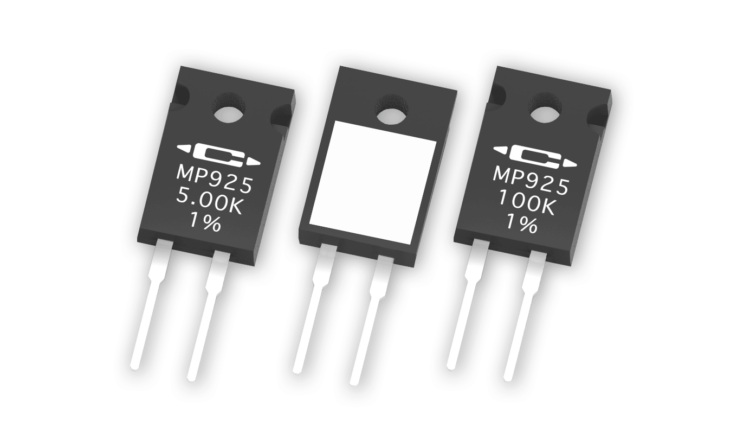

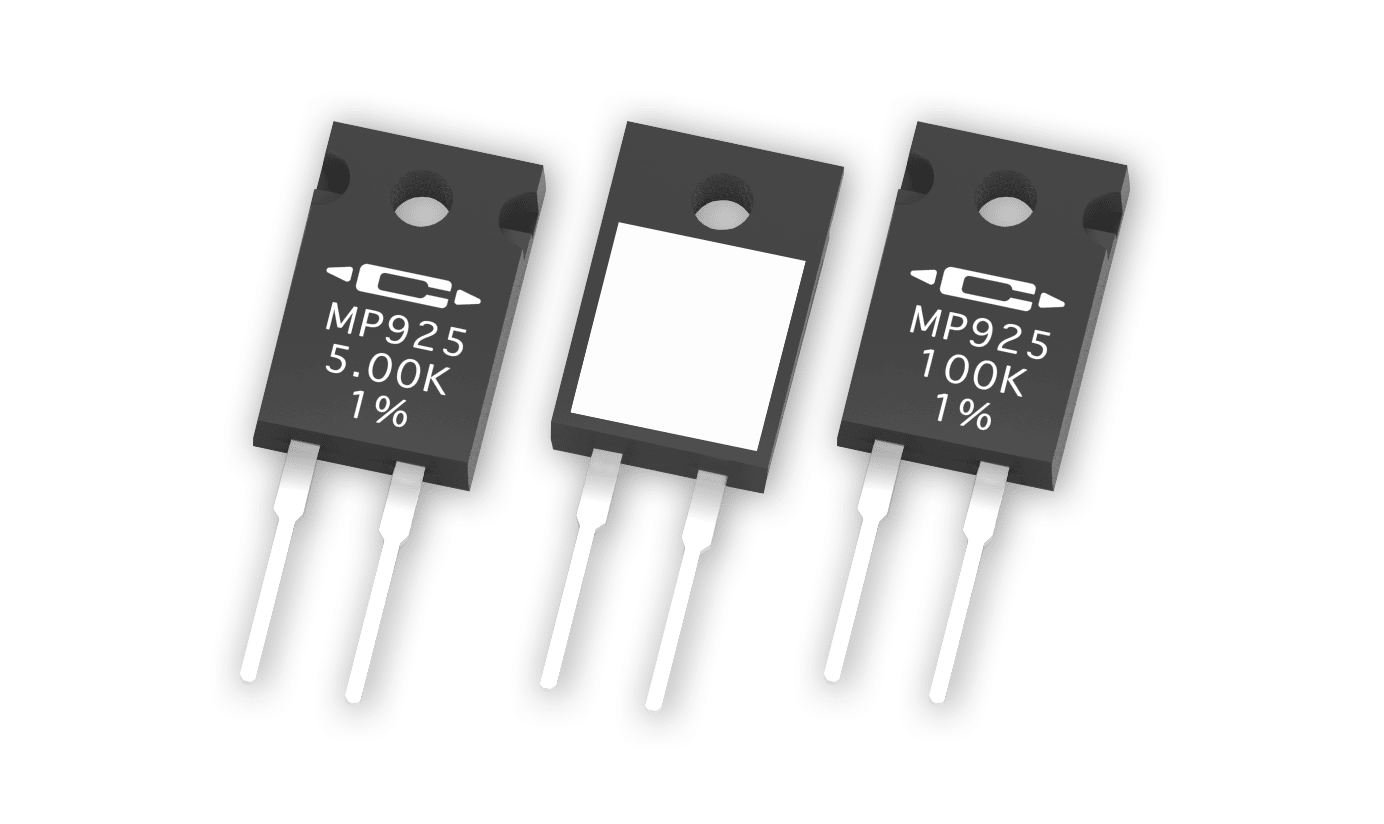

The MP925 Kool-Pak® power film resistors from Caddock are a low cost, heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface. The resistance range is from 5KΩ up to 100KΩ with a power rating of up to 25W at +25°C case temperature derated to zero at +150°C. The MP915 series tolerance options available are ±1.0% (standard), ±5.0% and ±20.0% are also available depending on the resistance values required. The MP925 series Kool-Pak® power film resistors are constructed with Caddock’s Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.

  • Kool-Pak® power film through-hole resistor
  • Low-cost heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface
  • Resistance values available between 5KΩ and 100KΩ
  • Non-inductive design
  • TCR of -20 to +80 ppm/°C (from 0.5Ω and above)
  • Tolerance of ±1.0% as standard (±5.0% and ±20.0% are available for most resistance values)
  • Power rating of up to 25W at +25°C case temperature derated to zero at +150°C
  • Maximum voltage 500V
  • Maximum temperature 150°C



Use your thermal design experience with power semiconductors in TO-220 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.



The below table gives the specifications available for the complete MP900 resistor series including the MP925:

Caddock MP925 Specifications
* Please see the datasheet for the derating curve.



Specifications

Weight 0.00000 kg

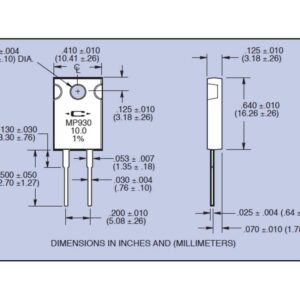

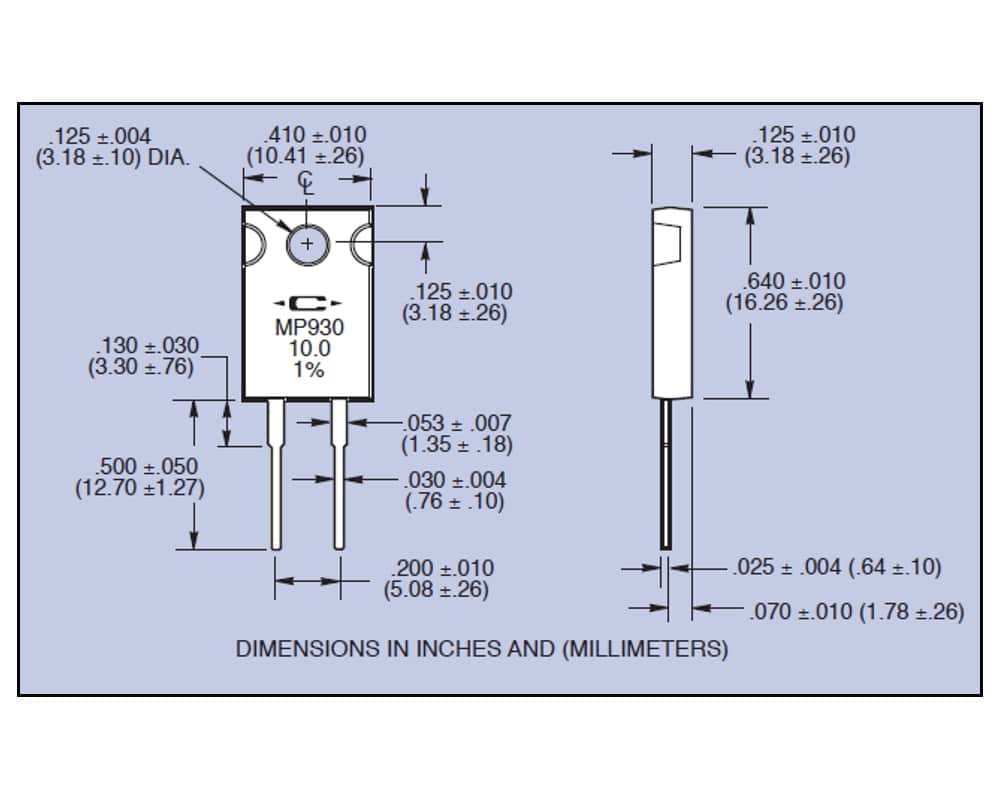

Dimensions 10.41 × 3.18 × 19.56 mm
Series / Model

,

Minimum Resistance

Maximum Resistance

Temperature Coefficient

Power Rating

Additional Features

TO-220 style Kool-Pak® power through-hole resistorHeat sink mountable design featuring an exposed ceramic heat dissipating mounting surfaceNon-inductive designConstructed with Caddock's Micronox® r

Tolerance

, ,
