Caddock MPM20 Series

Caddock MPM20 Series
Caddock MPM20 Series
Caddock MPM20 Series

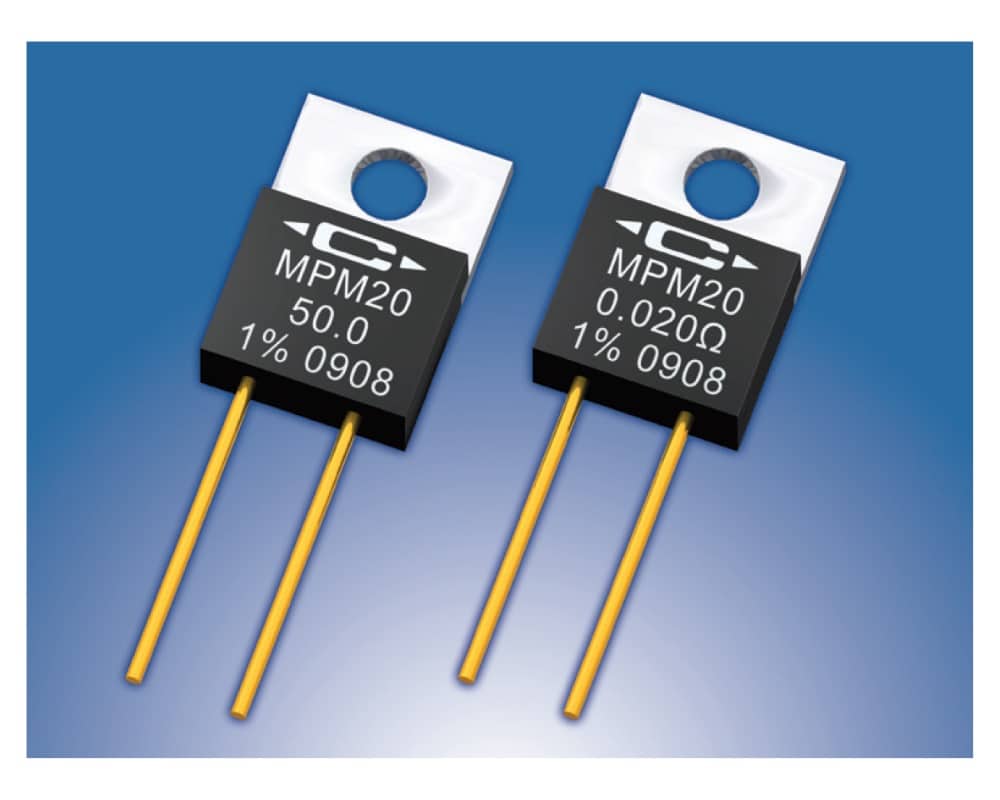

  • Caddock

Product Features

  • TO-220 Kool-Tab® style power through-hole resistor
  • “Pure Tin free” design for high performance industrial and military applications
  • Metal mounting tab with single screw hole for simplified heat sink mounting
  • Non-inductive design
  • Constructed with Caddock’s Micronox® resistance film technology
  • Maximum voltage rating of 300V
  • Operation up to +175°C case temperature

Applications

  • Power Control
  • Exempt

Description

The MPM20 Kool-Pak® power film resistors from Caddock are pure tin free design for high performance industrial and military applications in TO-220 style power package with metal mounting tab. The resistance range is from 0.02Ω up to 10kΩ with a power rating of up to 20W at +25°C case temperature. The MPM20 series tolerance is ±1.0% (±0.5% is available for most resistance values). MPM20 series uses Caddock’s proven Micronox® resistance film system to provide a compact heat sink mountable resistor. The non-inductive design makes this resistor ideal in high frequency communications, power switching circuits and snubbers.

  • Kool-Pak® power film through-hole resistor
  • Pure tin free design for high performance industrial and military applications
  • Resistance values available between 0.02Ω and 10kΩ
  • Non-inductive design
  • TCR of 0 to +300 ppm/°C (between 0.02Ω and 0.049Ω), 0 to +200 ppm/°C (between 0.05Ω and 0.99Ω), -20 to +80 ppm/°C (from 1Ω to 4.99Ω) and -20 to +50 ppm/°C (from 5Ω and above)
  • Tolerance of ±1.0% (±0.5% is available for most resistance values)
  • Power rating of up to 20W at +25°C case temperature
  • Maximum voltage 300V
  • Single screw mounting simplifies resistor attachment to the heat sink
  • Low profile provides an easier fit in tight places with a moulded case for environmental protection



Use your thermal design experience with power semiconductors in TO-220 style power packages. This experience will help you get the most out of this unique family of surface-mount power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.



The below table gives the specifications available for the complete MPM20 resistor:

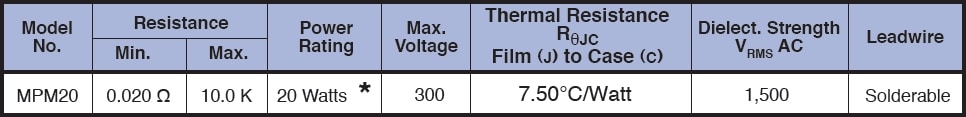

Caddock MPM20 Specifications
* Please see the datasheet for the derating curve.





Specifications

Weight 0.00000 kg

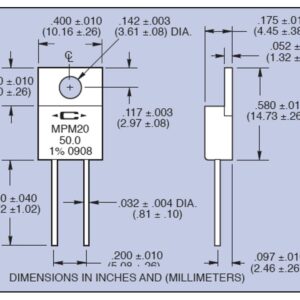

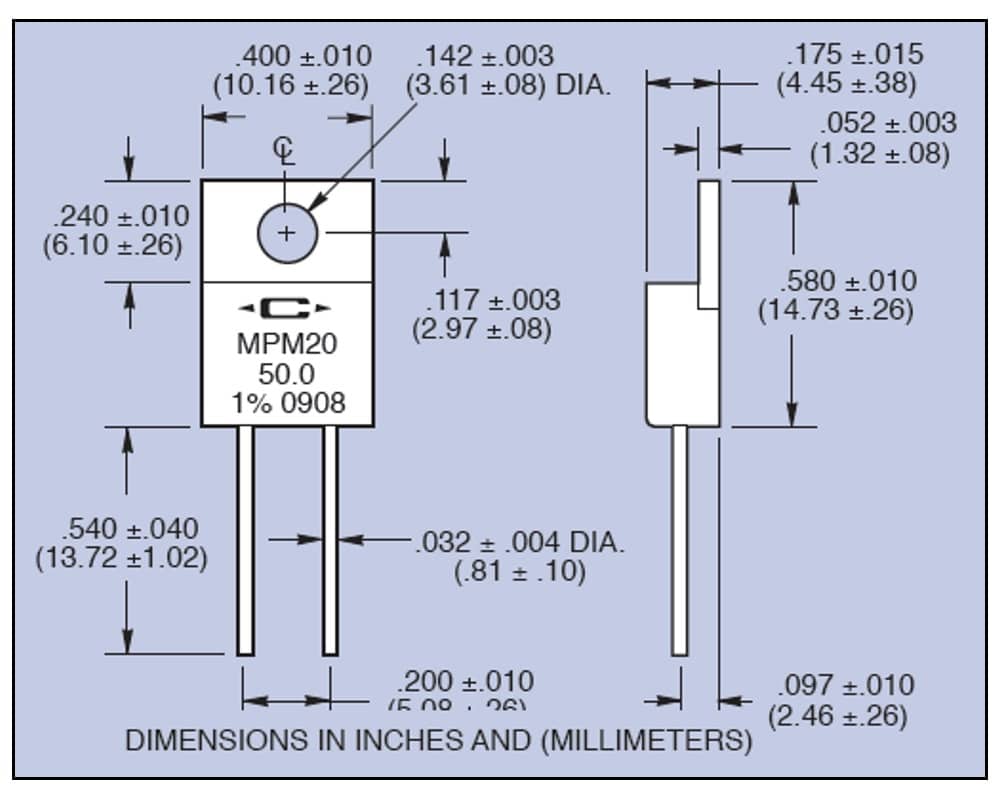

Dimensions 10.16 × 4.45 × 14.73 mm
Minimum Resistance

Series / Model

Maximum Resistance

Temperature Coefficient

, , ,

Power Rating

Tolerance

,

Caddock MPM20 Series Resources

Product Datasheet

Supporting Manufacturer Information

Caddock MPM20 Series

Caddock MPM20 Series
Caddock MPM20 Series
Caddock MPM20 Series
Quantity
Calculators and Converters

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Please be advised that due to the ongoing supply issues with raw materials affecting the global electronics industry, as well as an increase in orders received by our manufacturing partners, a large number of products are facing increased lead times in recent months. For the latest lead time and stock availability, please contact one of our engineers who will be happy to discuss lead times further and the potential for alternative parts.
