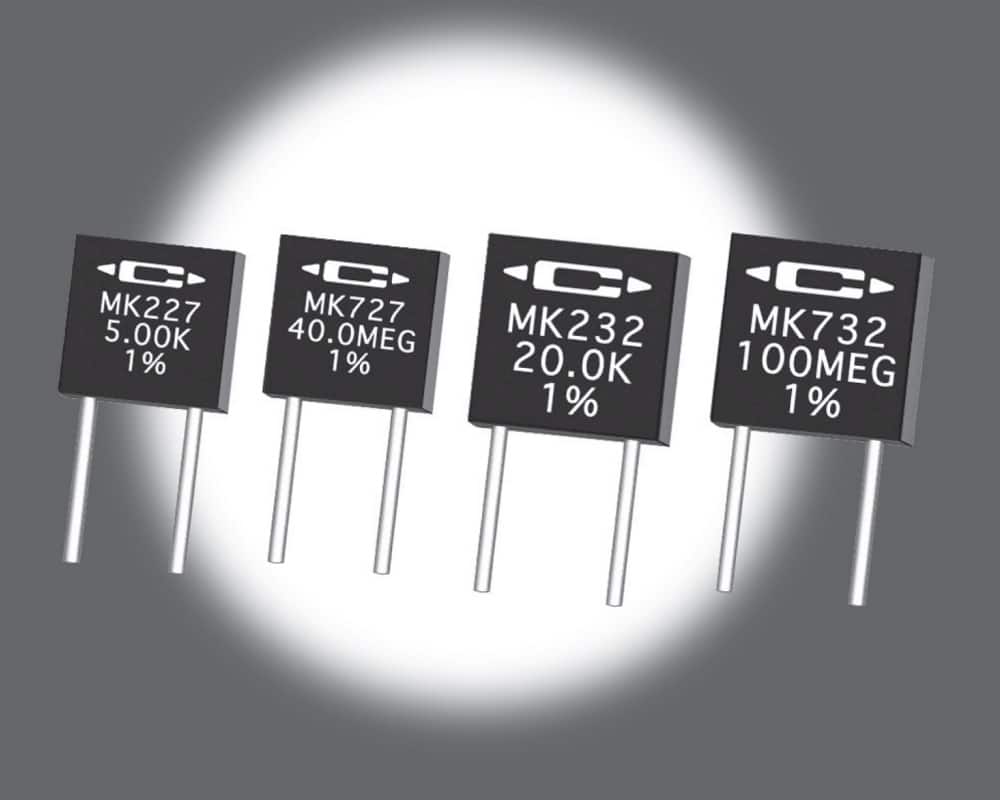

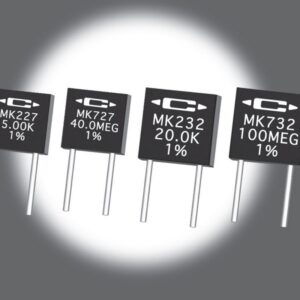

Caddock MK227 Series

  • Caddock

Product Features

  • Precision power film radial leaded through-hole resistor
  • Non-inductive with expanded resistance range
  • Maximum working voltage of 200V
  • Compact rectangular package with standard lead spacing
  • Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
  • Extended life stability is typically better than 0.1% per 1,000 hours
  • Operating temperature range from -40°C up to +150°C

Applications

  • Rhopoint Energy

Description

The MK227 precision power film radial leaded resistor series from Caddock offers a resistance range from 1Ω up to 2MΩ, a power rating of 0.5W and a voltage rating of 200V. The MK227 series has a tolerance of ±1.0% as standard with options down to ±0.1% on resistances of 30Ω or higher, and also a TCR of ±50 ppm/°C for resistance values of 5Ω and above. The MK resistor series is constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate.

  • Compact rectangular power film radial leaded resistor with standard lead spacing
  • Available in any resistance between 1Ω and 2MΩ
  • Utilises Caddock’s Micronox® resistance film technology
  • Utilises Caddock’s non-inductive design
  • Tolerance of ±1.0% as standard with non-standard options down to ±0.1% from 30Ω and above
  • TCR of ±50 ppm/°C from 5Ω and above (between -15°C and +105°C)
  • Maximum working voltage of 200V
  • Maximum power rating of 0.5W
  • Operating temperature of between -40°C and +150°C

The MK200 and MK700 series of resistors are the RoHS equivalent versions of the older non-RoHS MK100 and MK600 series. These resistors have pure matte Tin (Sn) lead finish optimised for use in commercial and industrial applications.

With their compact design, it is easier to achieve greater packaging densities without the need for leaving extra space where resistor value changes can require larger resistors or non-uniform lead spacing.

The below table gives the specifications available for the complete MK200 resistor series including the MK227:

Caddock MK200 Specifications

Specifications

Weight 0.00000 kg

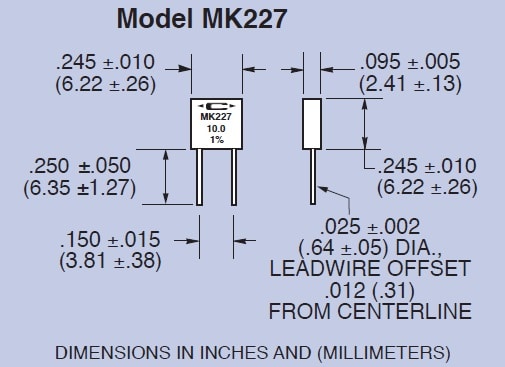

Dimensions 6.22 × 2.41 × 6.22 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

,

Power Rating

Additional Features

Precision power film radial leaded through-hole resistorNon-inductive with expanded resistance rangeMaximum working voltage of 200VCompact rectangular package with standard lead spacingConstructed wi

Tolerance

,

RoHS Compliant Product – Caddock below 219°C

This product is available compliant to the RoHS EU directive 2011/65/EU, but, requires extra care during “Lead(Pb)-Free” wave soldering. The temperature of the resistor terminal adjacent to the resistor body must be maintained below 219°C during soldering.

Caddock MK Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Caddock MK precision power film radial leaded resistor series datasheet
Designing with Caddock TO-style heat sink mountable power film resistors application note (AEN-0101)
Understanding the power rating of Caddock MP9100 resistors application note (AEN-0102)
Application of the type CHR high resistance precision chip resistor products application note (AEN-0103)
Terminal finish and soldering process information for Caddock resistor products application note (AEN-0104)
Caddock resistor products and the RoHS directive application note (AEN-0105)
Customer applications that are outside the scope of the RoHS directive application note (AEN-0106)
Caddock REACH compliance statement application note (AEN-0107)
Recommended solder reflow profile for Caddock surface-mount resistors application note (AEN-0108)
