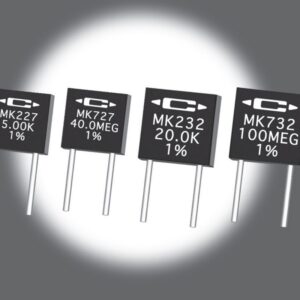

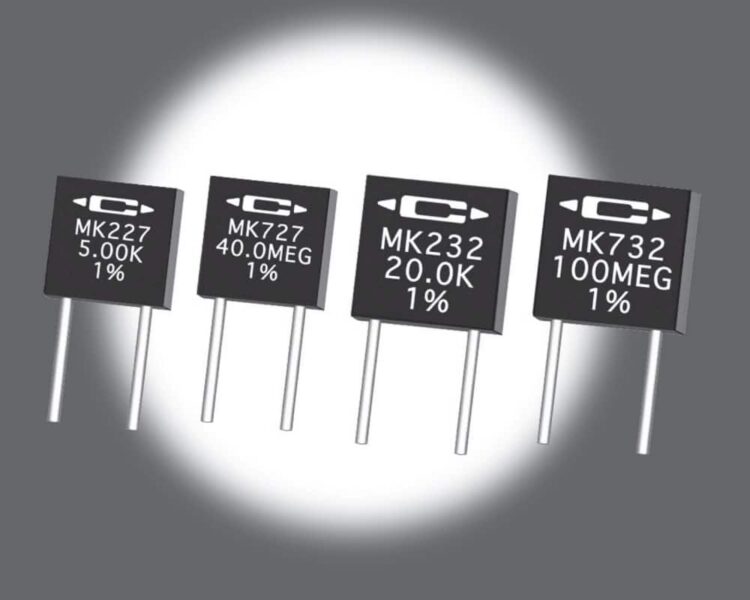

Caddock MK727 Series

  • Caddock

Product Features

  • Precision power film radial leaded through-hole resistor
  • Non-inductive with expanded resistance range
  • Maximum working voltage of 400V
  • Compact rectangular package with standard lead spacing
  • Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
  • Extended life stability is typically better than 0.1% per 1,000 hours
  • Operating temperature range from -40°C up to +150°C

Applications

  • Rhopoint Energy

Description

The MK727 precision power film radial leaded resistor series from Caddock offers a resistance range from 2.01MΩ up to 40MΩ and a voltage rating of 200V. The MK727 series has a tolerance of ±1.0% as standard, and also a TCR of ±80 ppm/°C (between -15°C and +105°C). The MK resistor series is constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate.

  • Compact rectangular power film radial leaded resistor with standard lead spacing
  • Available in any resistance between 2.01MΩ and 40MΩ
  • Utilises Caddock’s Micronox® resistance film technology
  • Utilises Caddock’s non-inductive design
  • Tolerance of ±1.0% as standard
  • TCR of ±80 ppm/°C (between -15°C and +105°C)
  • Maximum working voltage of 200V
  • Maximum power rating is limited by the maximum working voltage
  • Operating temperature of between -40°C and +150°C

The MK200 and MK700 series of resistors are the RoHS equivalent versions of the older non-RoHS MK100 and MK600 series. These resistors have pure matte Tin (Sn) lead finish optimised for use in commercial and industrial applications.

With their compact design, it is easier to achieve greater packaging densities without the need for leaving extra space where resistor value changes can require larger resistors or non-uniform lead spacing.

The below table gives the specifications available for the complete MK700 resistor series including the MK727:

Caddock MK700 Specifications

Specifications

Weight 0.00000 kg
Dimensions 6.22 × 2.41 × 6.22 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

Power Rating

Additional Features

Precision power film radial leaded through-hole resistorNon-inductive with expanded resistance rangeMaximum working voltage of 400VCompact rectangular package with standard lead spacingConstructed wi

Tolerance

RoHS Compliant Product – Caddock below 219°C

This product is available compliant to the RoHS EU directive 2011/65/EU, but, requires extra care during “Lead(Pb)-Free” wave soldering. The temperature of the resistor terminal adjacent to the resistor body must be maintained below 219°C during soldering.

Caddock MK Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Caddock MK precision power film radial leaded resistor series datasheet
Designing with Caddock TO-style heat sink mountable power film resistors application note (AEN-0101)
Understanding the power rating of Caddock MP9100 resistors application note (AEN-0102)
Application of the type CHR high resistance precision chip resistor products application note (AEN-0103)
Terminal finish and soldering process information for Caddock resistor products application note (AEN-0104)
Caddock resistor products and the RoHS directive application note (AEN-0105)
Customer applications that are outside the scope of the RoHS directive application note (AEN-0106)
Caddock REACH compliance statement application note (AEN-0107)
Recommended solder reflow profile for Caddock surface-mount resistors application note (AEN-0108)
