Caddock MK232 Series

  • Caddock

Product Features

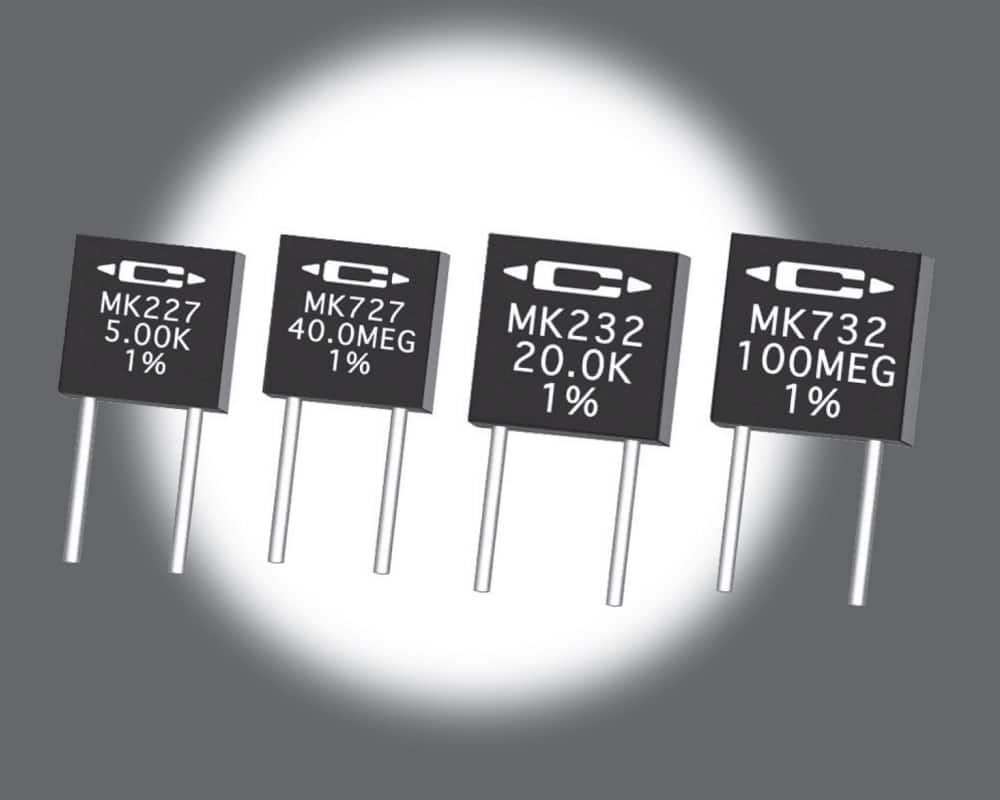

  • Precision power film radial leaded through-hole resistor
  • Non-inductive with expanded resistance range
  • Maximum working voltage of 200V
  • Compact rectangular package with standard lead spacing
  • Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
  • Extended life stability is typically better than 0.1% per 1,000 hours
  • Temperature range from -40°C up to +150°C

Applications

  • Exempt

Description

The MK232 precision power film radial leaded resistor series from Caddock offers a resistance range from 1Ω up to 5MΩ, a power rating of 0.75W and a voltage rating of 400V. The MK232 series has a tolerance of ±1.0% as standard with options down to ±0.1% on resistances of 30Ω or higher, and also a TCR of ±50 ppm/°C for resistance values of 5Ω and above. The MK resistor series is constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate.

  • Compact rectangular power film radial leaded resistor with standard lead spacing
  • Available in any resistance between 1Ω and 5MΩ
  • Utilises Caddock’s Micronox® resistance film technology
  • Utilises Caddock’s non-inductive design
  • Tolerance of ±1.0% as standard with non-standard options down to ±0.1% from 30Ω and above
  • TCR of ±50 ppm/°C from 5Ω and above (between -15°C and +105°C)
  • Maximum working voltage of 400V
  • Maximum power rating of 0.75W
  • Temperature range of between -40°C and +150°C



The MK200 and MK700 series of resistors are the RoHS equivalent versions of the older non-RoHS MK100 and MK600 series. These resistors have pure matte Tin (Sn) lead finish optimised for use in commercial and industrial applications.

With their compact design, it is easier to achieve greater packaging densities without the need for leaving extra space where resistor value changes can require larger resistors or non-uniform lead spacing.



The below table gives the specifications available for the complete MK200 resistor series including the MK232:

Caddock MK200 Specifications

Specifications

Weight 0.00000 kg

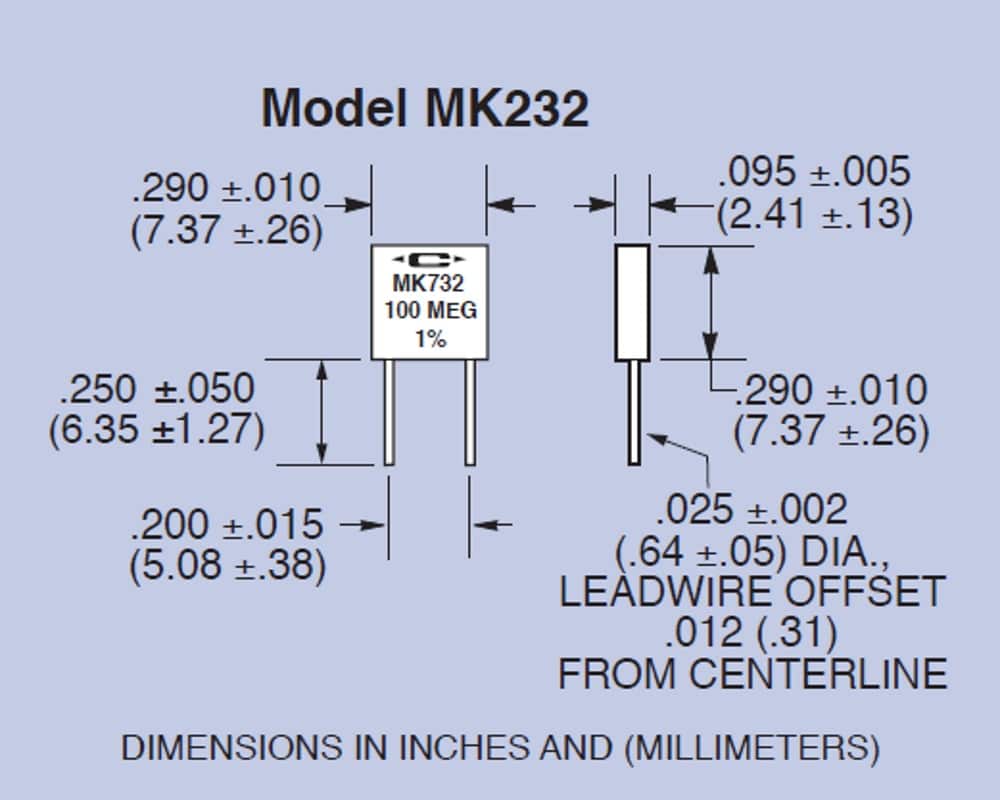

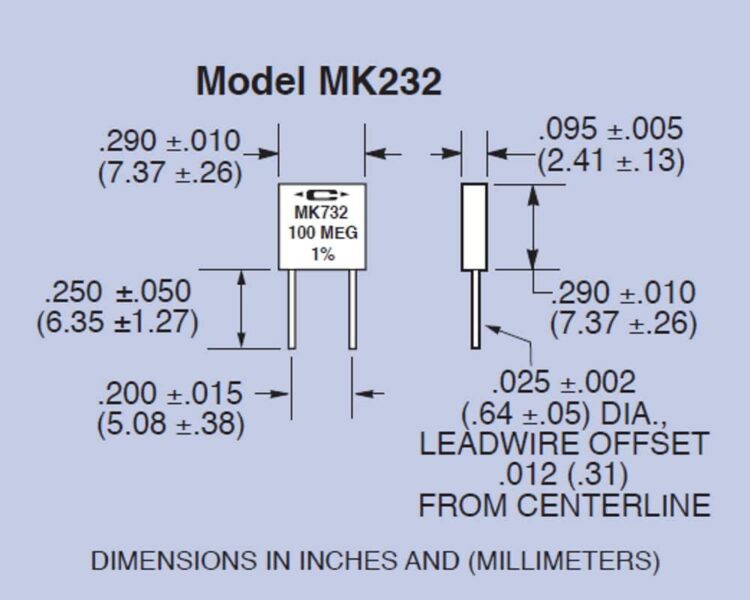

Dimensions 7.37 × 2.41 × 7.37 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

,

Additional Features

Precision power film radial leaded through-hole resistorNon-inductive with expanded resistance rangeMaximum working voltage of 200VCompact rectangular package with standard lead spacingConstructed wi

Tolerance

,

Package / Size
