  • Stellar Technology

Product Features

  • High accuracy precision miniature tension and compression load cell
  • Shock and vibration resistant
  • All welded stainless steel construction
  • 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
  • Temperature effect on zero ±0.003% FSO/°F
  • Temperature effect on span ±0.003% Reading/°F
  • Zero balance ±1% FSO

Applications

  • Renewables

Description

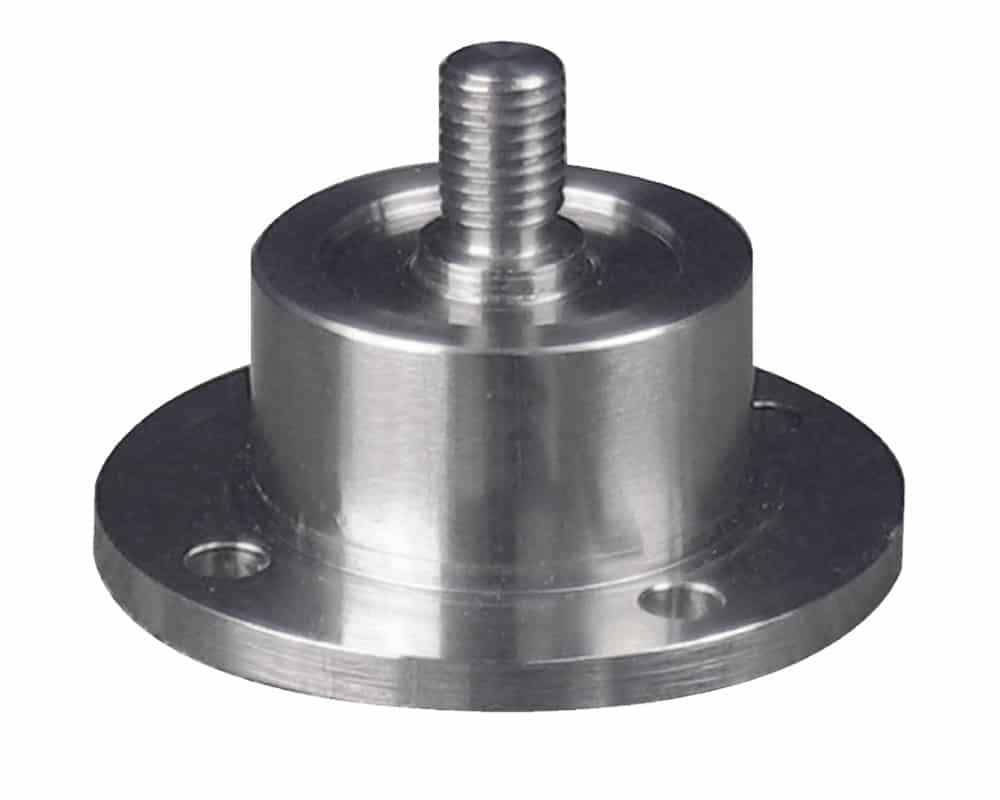

The MIN811 precision miniature tension and compression load cell from Stellar Technology offers maximum load ranges of 100lbs, 250lbs, 500lbs and 1000lbs with accuracy of ±0.15% BFSL. The MIN811 series from Stellar Technology are both high accuracy and compact sized for both tension and compression applications, these miniature load cells are designed to minimise the effects of off-axis loading. Constructed of all welded stainless steel, these devices come in a variety of mounting configurations with active male threads as standard.

  • High accuracy precision miniature tension and compression load cell
  • Maximum load ranges of 100lbs, 250lbs, 500lbs and 1000lbs
  • Temperature range −65°F (-53.9°C) to +250°F (+121.1°C)
  • Accuracy of ±0.15% BFSL
  • Electrical output of 2mV/V (nominal)
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.003% FSO/°F
  • Temperature effect on span of ±0.003% reading/°F
  • Zero balance of ±1% FSO
  • Shock and vibration resistant
  • 5 point calibration record traceable to NIST

Optional features for the Stellar Technology MIN811 series include:

  • Female thread or custom interfaces
  • Customer specified cable lengths
  • Metric versions
  • Special calibration
  • Special full scales ranges
  • Operating Temperature range (mV/V unit) −65°F (-53.9°C) to +400°F (+121.1°C)

Potential markets for the Stellar Technology MIN811 series include:

  • Aerospace
  • Industrial automation
  • Defence systems
  • Alternative energy

Specifications

Weight 0.00000 kg

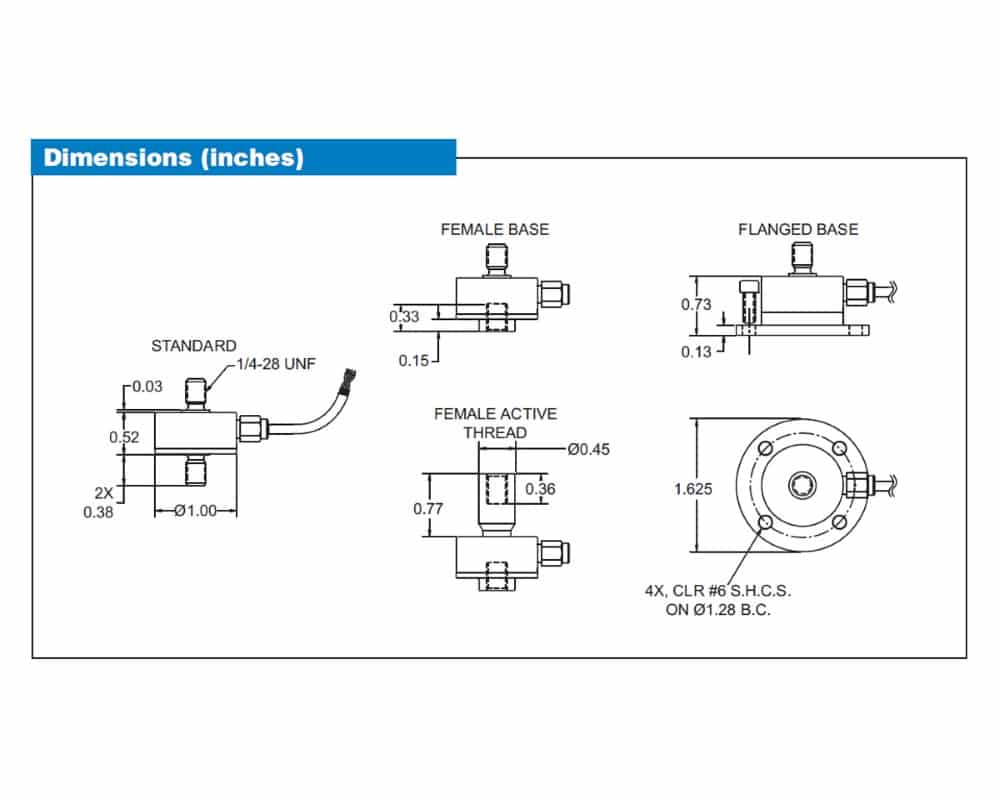

Dimensions 1.63 × 1.63 × 0.73 mm
Accuracy

Options

Series / Model

Additional Features

High accuracy precision miniature tension and compression load cellShock and vibration resistantAll welded stainless steel construction5 point calibration record traceable to NIST (0, 50%, 100%, 50%,

Output

Temperature Range (°C)

Capacity

, , , ,

Stellar Technology MIN811 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology MIN811 high accuracy precision miniature compression load cell datasheet
